Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    2. Fig 1: Stabilizer Shaft
    GM1208429Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the stabilizer link from the stabilizer shaft.

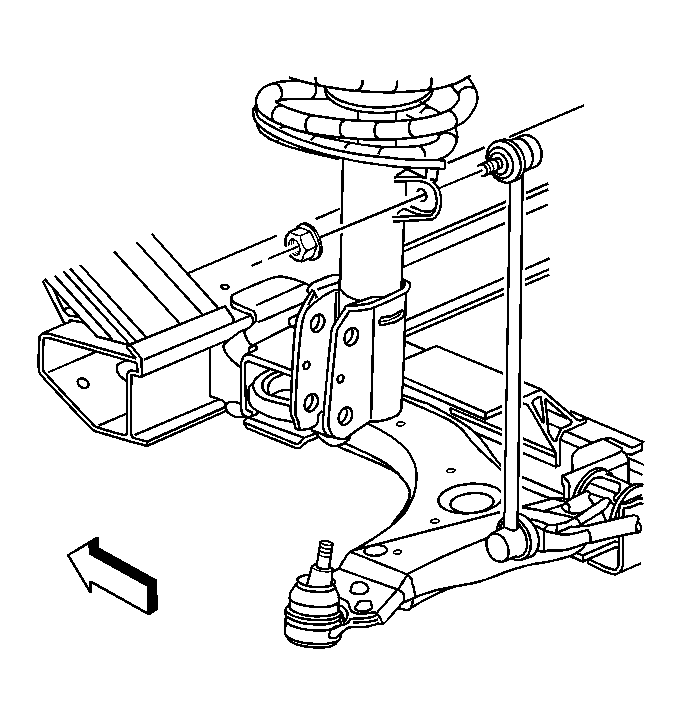

    3. Fig 2: Stabilizer Shaft Link & Strut Assembly
    GM1208425Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the stabilizer link from the strut assembly and remove from the vehicle.
