Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood rear seal. Refer to Seal Replacement - Hood Rear .
  3. Remove the wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
  4. Remove the windshield washer hose from the air inlet grille.
    5. Fig 1: View Of Windshield Washer Hose & Air Inlet Grille
    GM363898Courtesy of GENERAL MOTORS CORP.
  5. the push-in retainers (1) from the air inlet grille.
  6. Use theJ 38778  to remove the push-in retainers (2) from the sides of the air inlet grille.
  7. Remove the air inlet grille (3) from the vehicle.

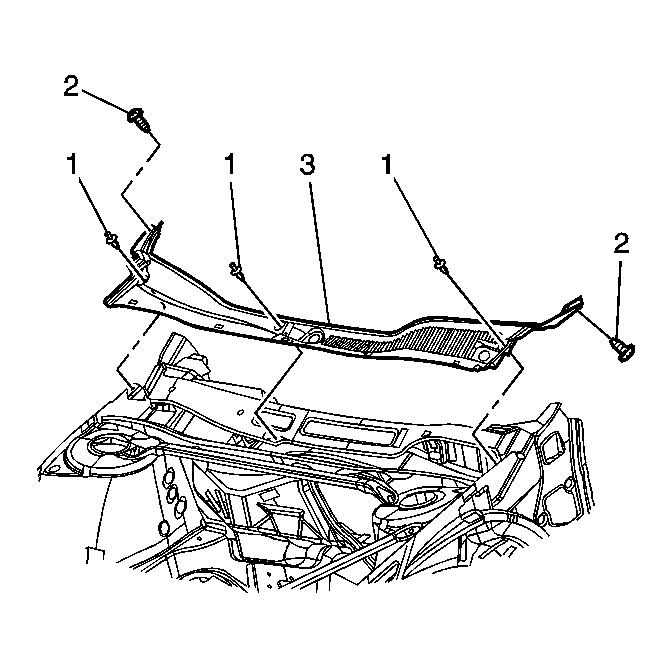

    8. Fig 2: View Of Air Inlet Grille
    GM1257441Courtesy of GENERAL MOTORS CORP.
