Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Trim Cover Protector & Lower Trim Cover
    GM368494Courtesy of GENERAL MOTORS CORP.
  1. Install the trim cover protector (1) onto the lower trim cover (2).
    2. Fig 2: View Of Lower And Upper Steering Column Covers
    GM328807Courtesy of GENERAL MOTORS CORP.
  2. Install the lower trim cover onto the upper trim cover.
  3. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
  4. Tilt the lower trim cover up.
  5. Slide the lower trim cover forward until the locking tabs snap into the tab slots.

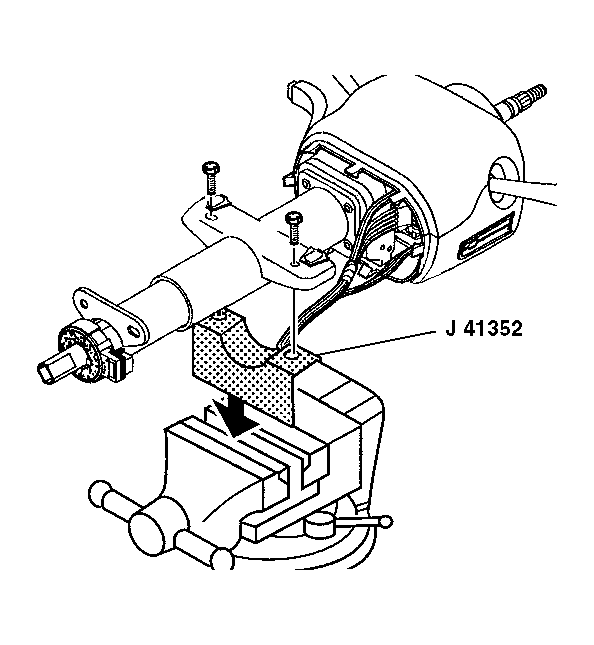

    6. Fig 3: Steering Column & J 41352
    GM323849Courtesy of GENERAL MOTORS CORP.
  6. Remove the steering column and J 41352  from the vise. See Special Tools and Equipment .
  7. Install the steering column into the vehicle. Refer to Steering Column Replacement .
  8. Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement .
  9. Install the tilt lever. Refer to Tilt Lever Replacement .
  10. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
