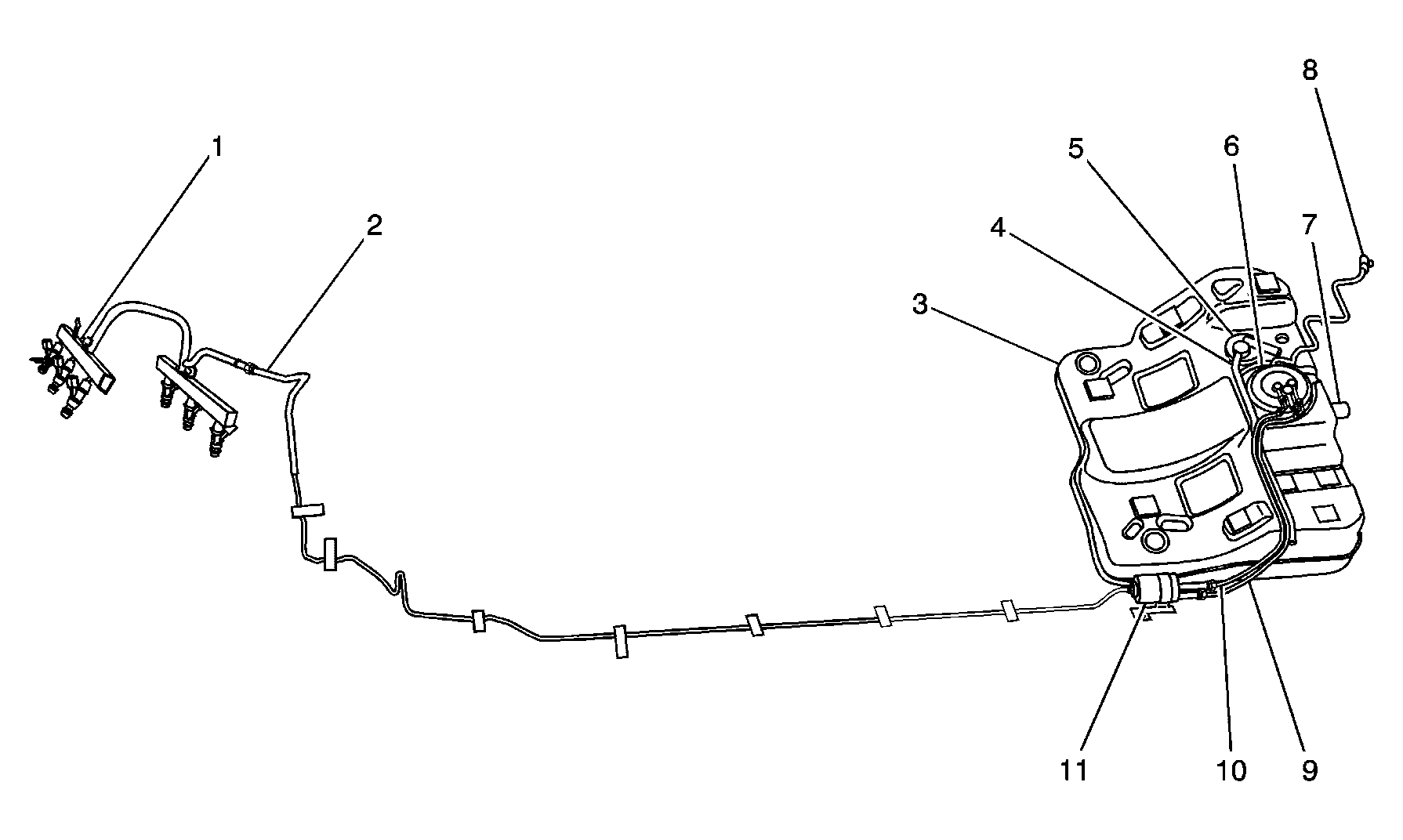

Fuel Hose/Pipes Routing Diagram
WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Fuel Rail and Fuel Injectors |
| 2 |
Fuel Feed Hose/Pipe |
| 3 |
Fuel Tank |
| 4 |
Over Pressure Blow-Off Hose |
| 5 |
Fuel Level Vent Valve (FLVV) |
| 6 |
Fuel Pump and Fuel Sender Assembly |
| 7 |
Fuel Filler Tube Inlet |
| 8 |
Fuel Sender Harness Connector |
| 9 |
Fuel Feed Hose |
| 10 |
Fuel Return Hose |
| 11 |
Fuel Filter |
