SIR Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

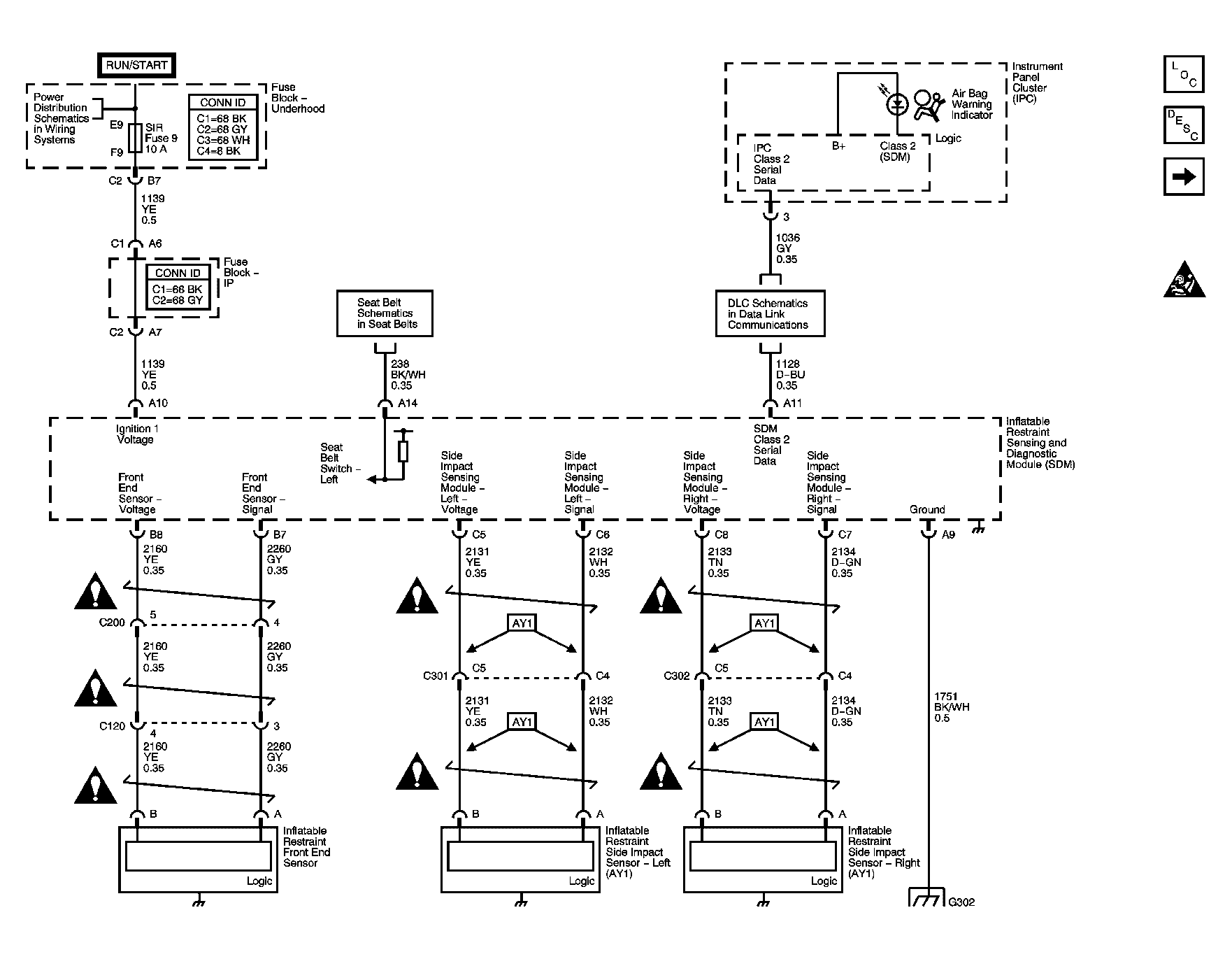

Fig 1: Power, Ground, DLC, Indicators, Sensors & Refs.
GM1200459Courtesy of GENERAL MOTORS CORP.

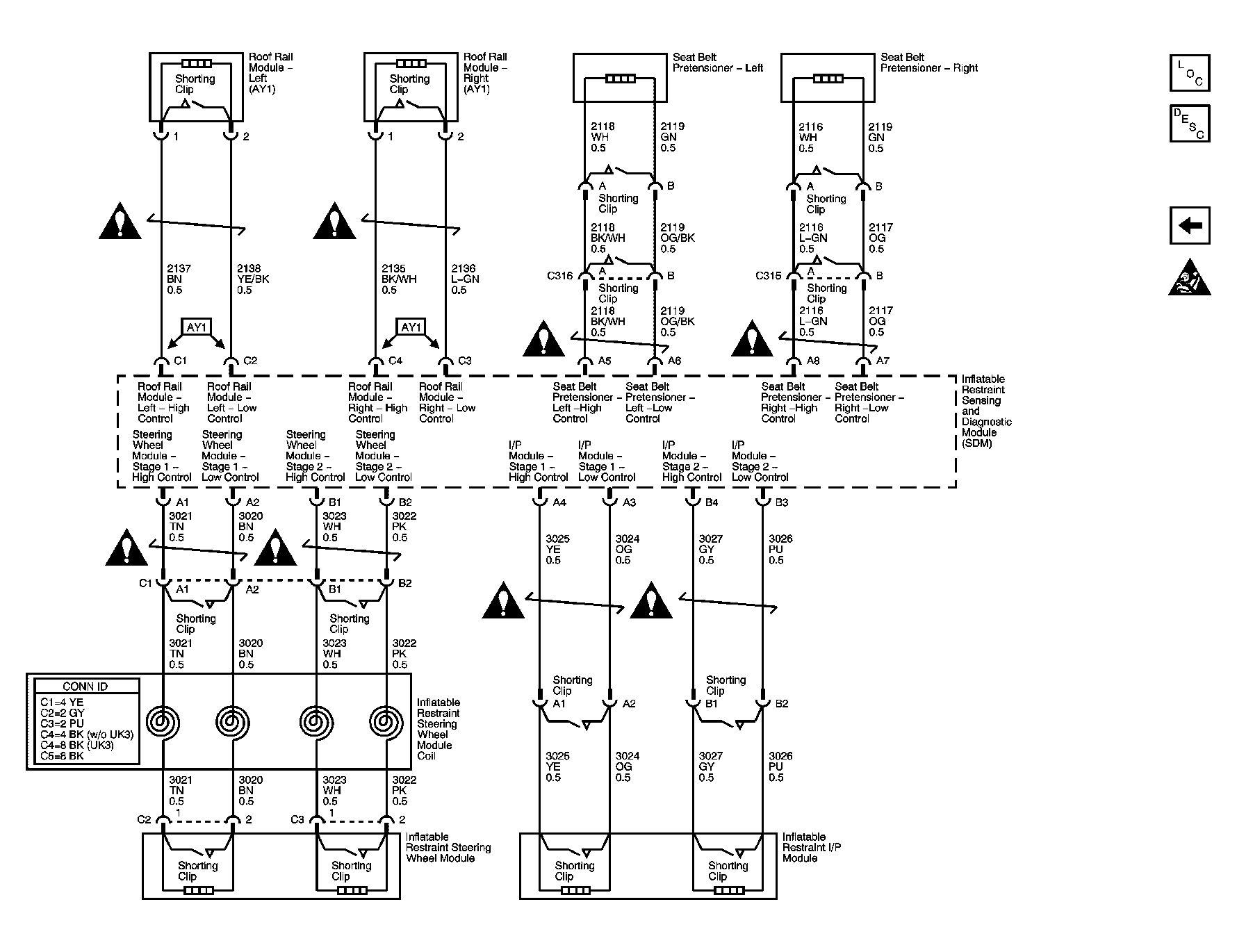

Fig 2: Deployment Loops Schematics
GM1200462Courtesy of GENERAL MOTORS CORP.
