Passenger Seat Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

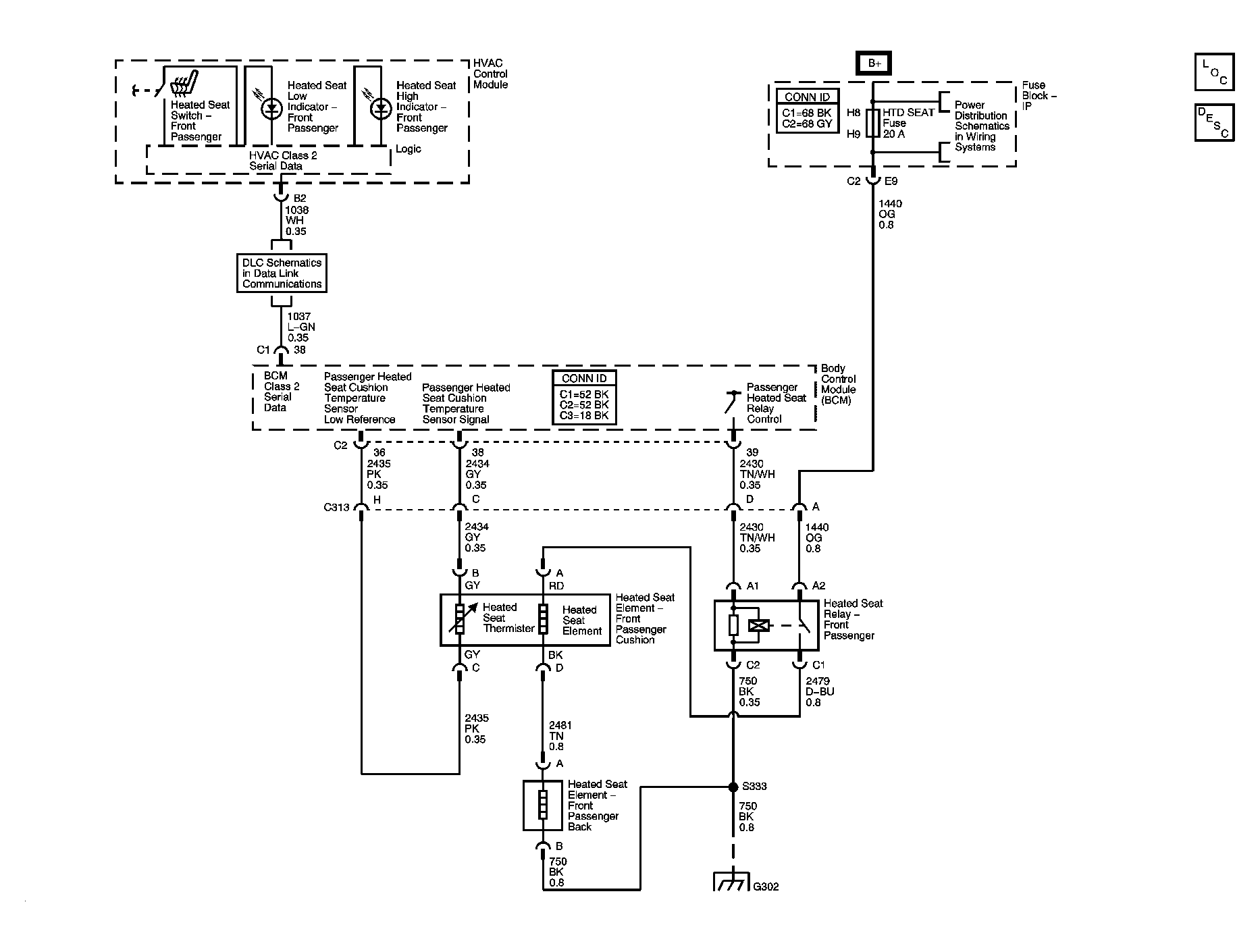

Fig 1: Heat Controls (Passenger)
GM1205465Courtesy of GENERAL MOTORS CORP.
