Driver Seat Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

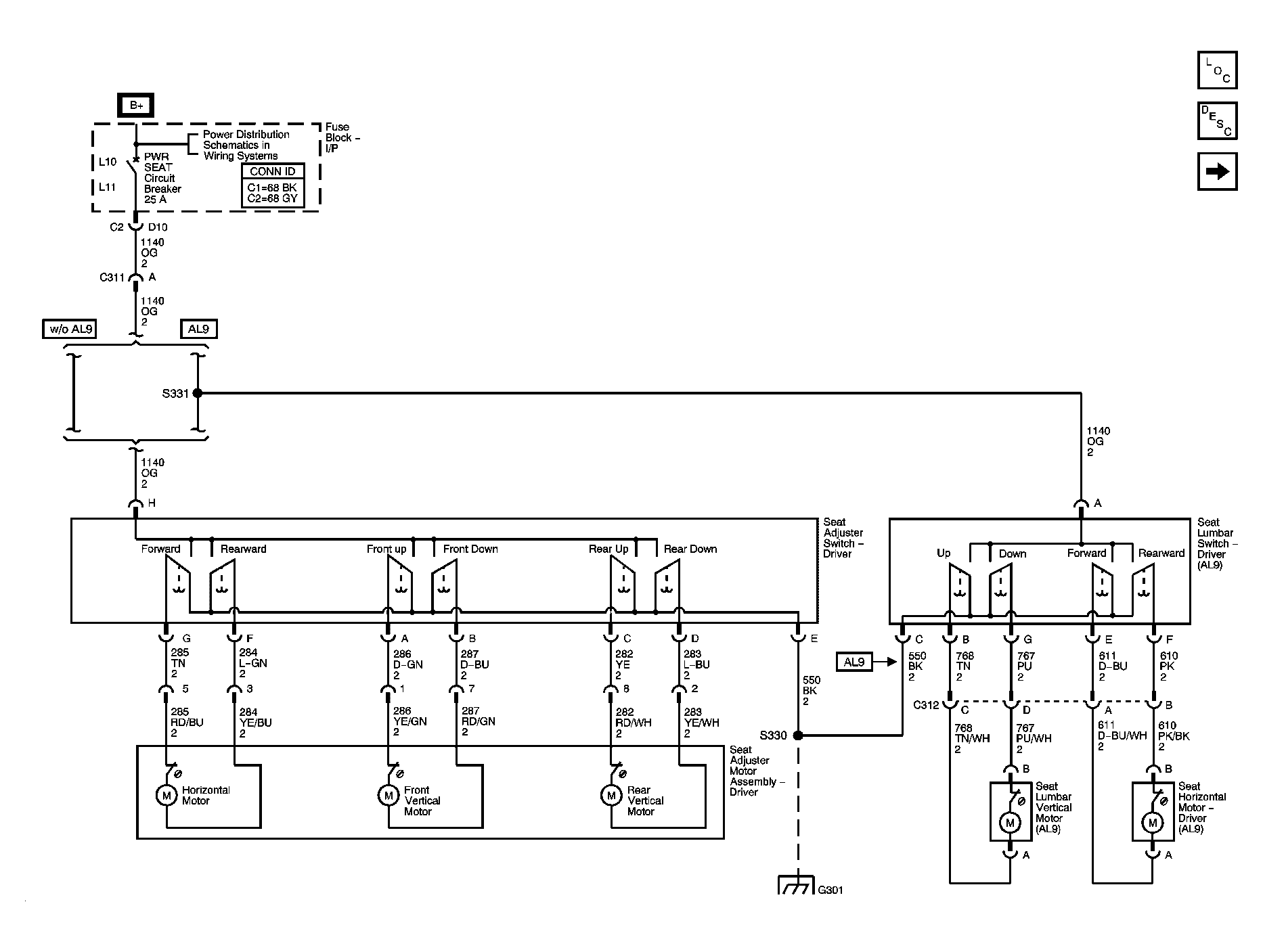

Fig 1: 6-Way Power And Lumbar Controls
GM1204295Courtesy of GENERAL MOTORS CORP.
Fig 2: Heat Controls (Driver)
GM1204654Courtesy of GENERAL MOTORS CORP.
