Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lumbar to the seat frame.
    2. Fig 1: Lumbar Clips & Front Seat Frame
    GM865011Courtesy of GENERAL MOTORS CORP.
  2. Install the lumbar clips.
    3. Fig 2: View Of Lumbar Clips (Front Seat)
    GM1441273Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back pad. Refer to Seat Back Pad Replacement - Front .
  4. Connect the electrical connector (1).

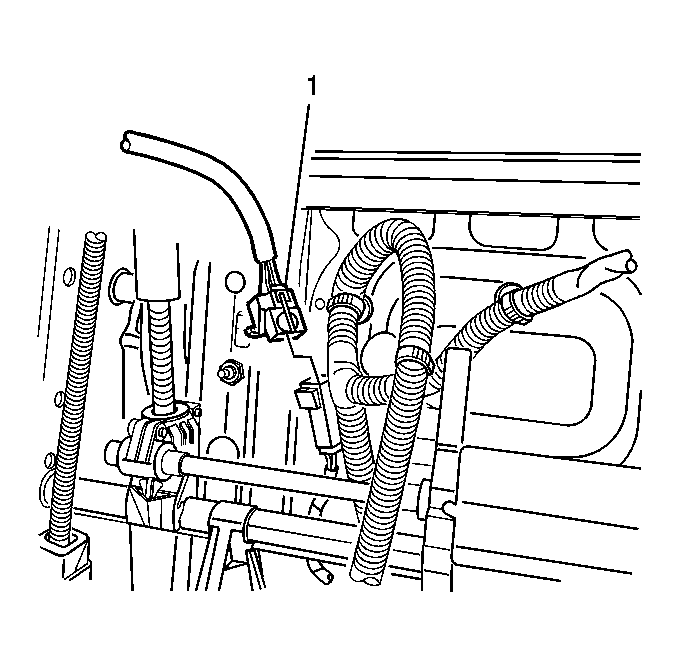

    5. Fig 3: View Of Electrical Connector (Front Seat)
    GM870743Courtesy of GENERAL MOTORS CORP.
  5. Install the seat cushion trim and pad. Refer to Seat Cushion Cover Replacement - Front .
  6. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  7. Install the front seat. Refer to Seat Replacement - Front Bucket .
