Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the speaker grille at the trim panel.
  2. Locate the 3 grille tabs (3) in the trim panel slots and press in.

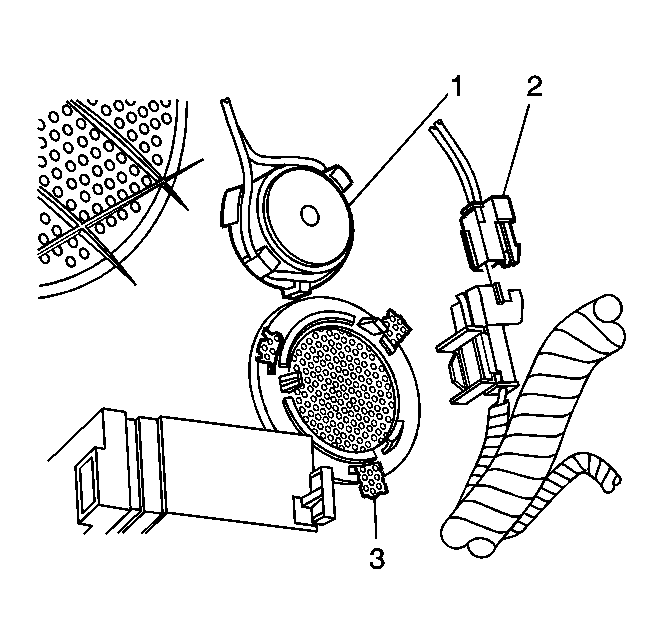

    3. Fig 1: View Of Speaker Electric Wire Connector
    GM905026Courtesy of GENERAL MOTORS CORP.
  3. On the inside of the trim panel, bend the tabs down to secure the grille.
  4. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
