Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Paint Damage Notice in Cautions and Notices.

Apply masking tape to the outer applique and frame.
Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
Remove the rear door window inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
Raise the window far enough in order to gain access to the bolts (2) that attach the window to the regulator.
Remove the bolts (2) that attach the window to the regulator.

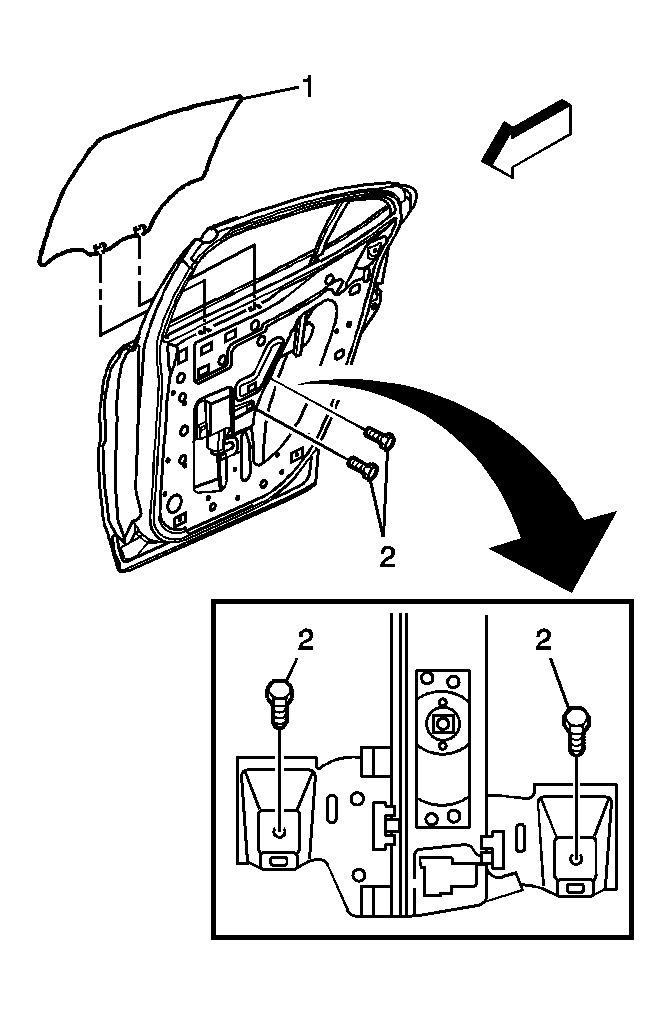

Fig 1: Window Guide Channel Bolts (Rear Door)

Courtesy of GENERAL MOTORS CORP.

Remove the window (1) from the door.
