Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Lower the window to the full down position.
  3. Grasp the door window weatherstrip in the center. Pull downward until the weatherstrip fully releases from the door frame.

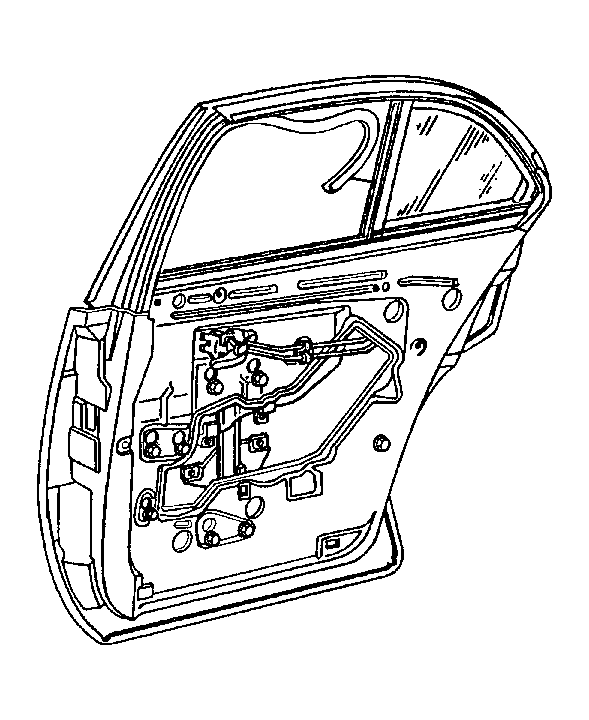

    4. Fig 1: Rear Door Window Weatherstrip
    GM325955Courtesy of GENERAL MOTORS CORP.
  4. Remove the window weatherstrip from the door.
