Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window to the full down position.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Lift the rear door window inner belt sealing strip (3) off the pinch-weld flange.

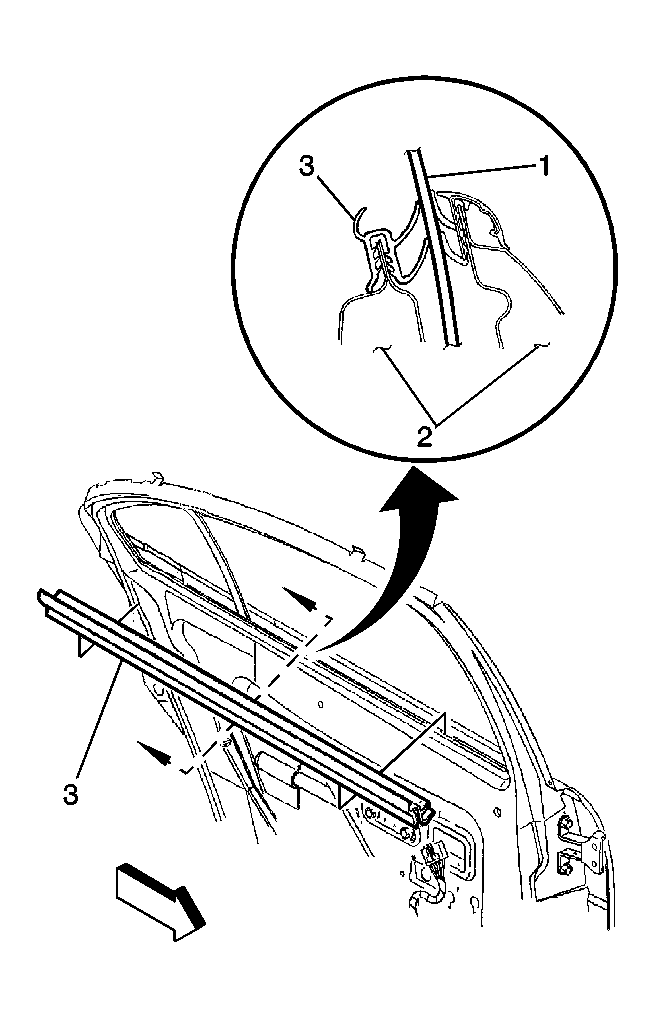

    4. Fig 1: Rear Door Window Belt Inner Sealing Strip & Pinch-Weld Flange
    GM315933Courtesy of GENERAL MOTORS CORP.
  4. Remove the inner window belt sealing strip from the door.
