Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

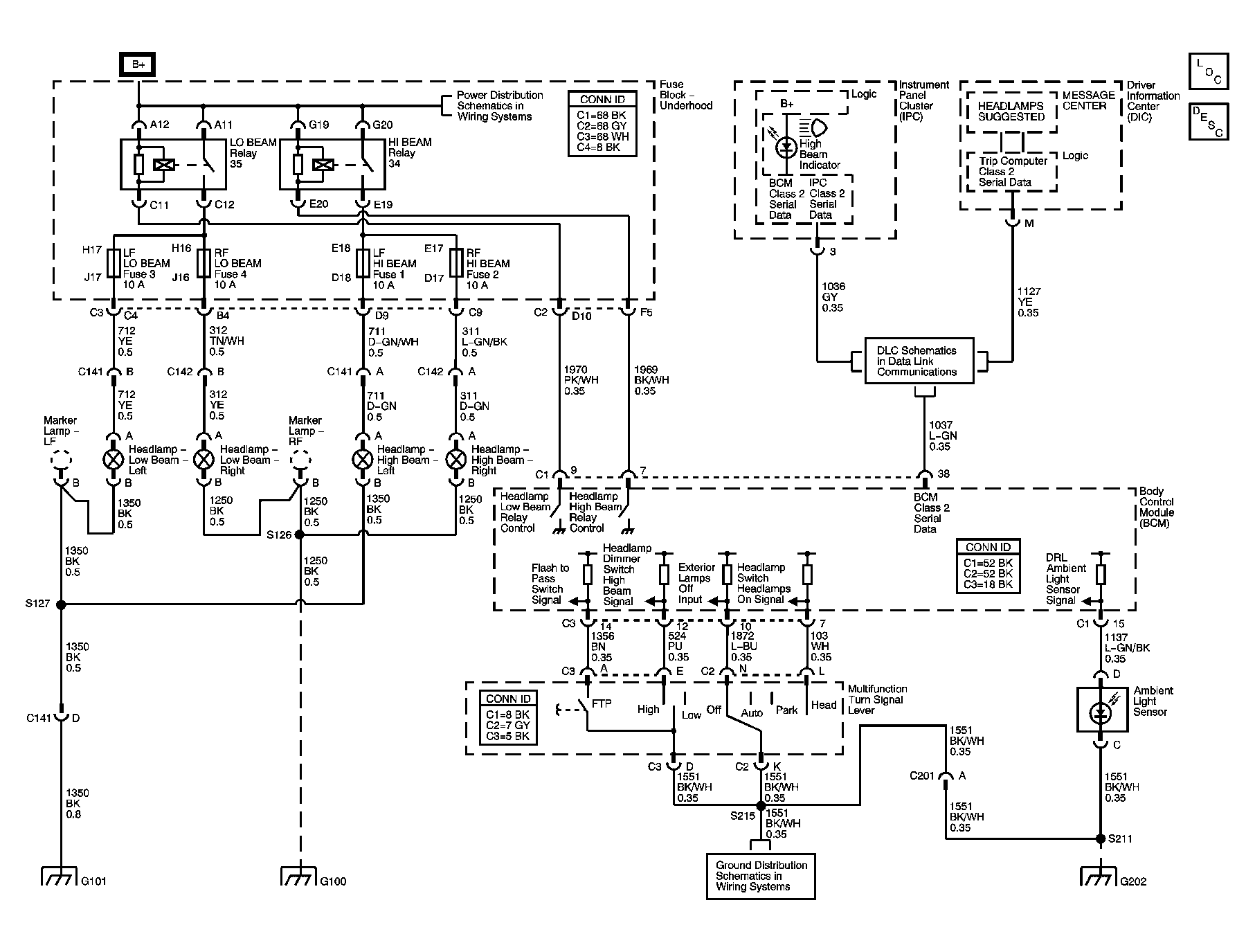

Fig 1: Headlights/Daytime Running Lights Diagram
GM1217472Courtesy of GENERAL MOTORS CORP.
