Exterior Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

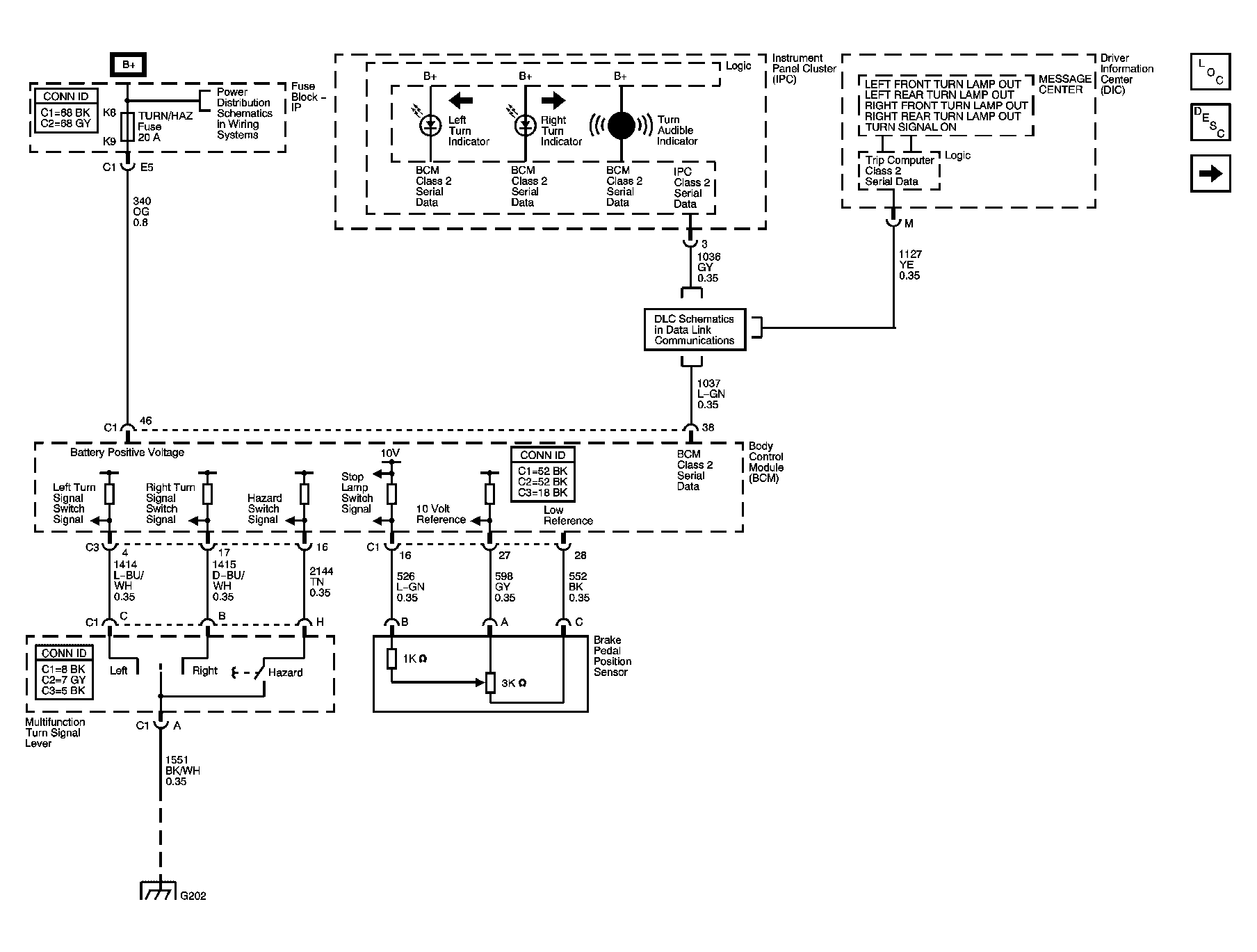

Fig 1: Turn Signal, Hazard and Stop Lamps Inputs

Courtesy of GENERAL MOTORS CORP.

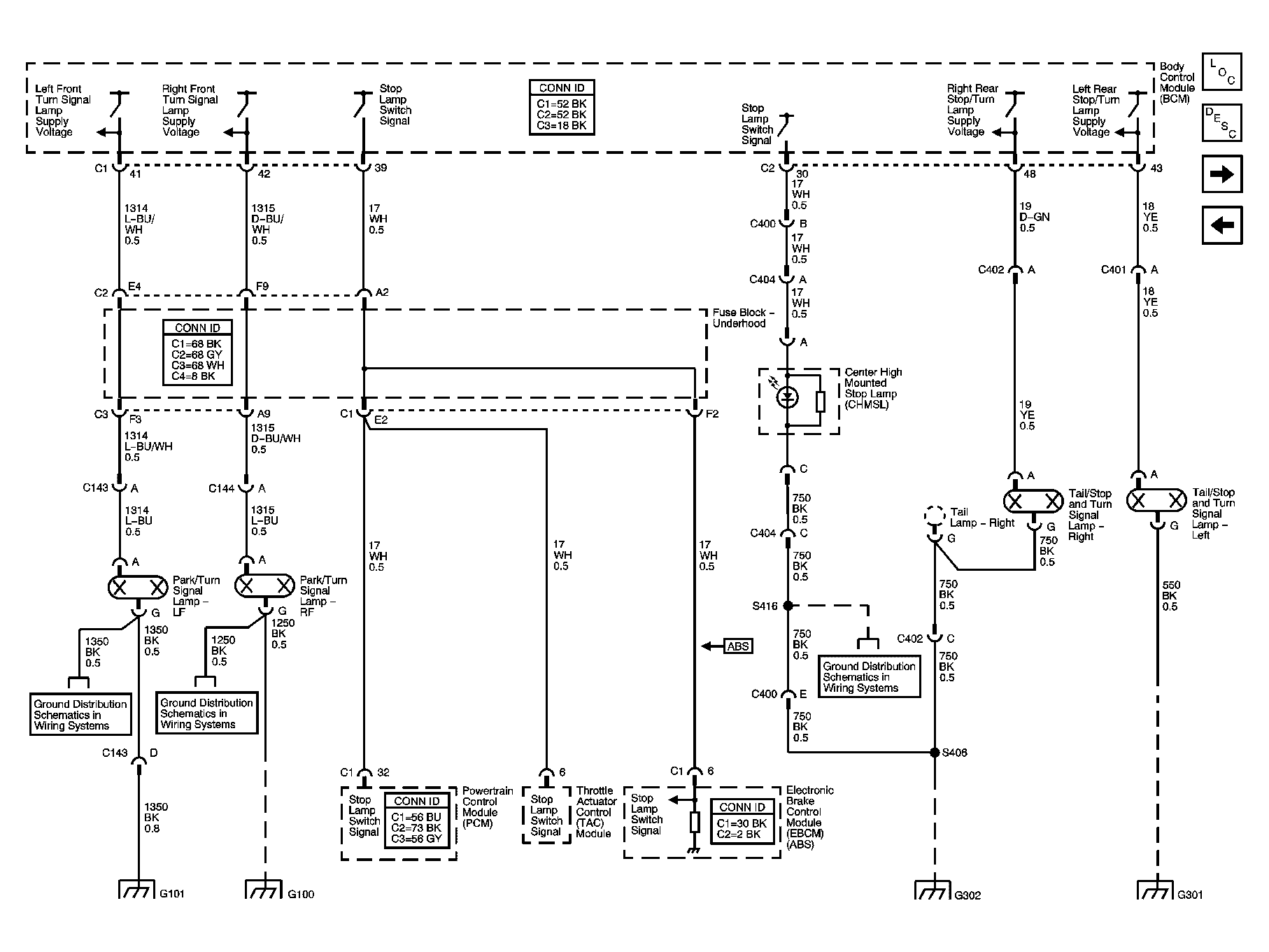

Fig 2: Turn Signal, Hazard and Stop Lamps Outputs

Courtesy of GENERAL MOTORS CORP.

Fig 3: Park Lamps

Courtesy of GENERAL MOTORS CORP.

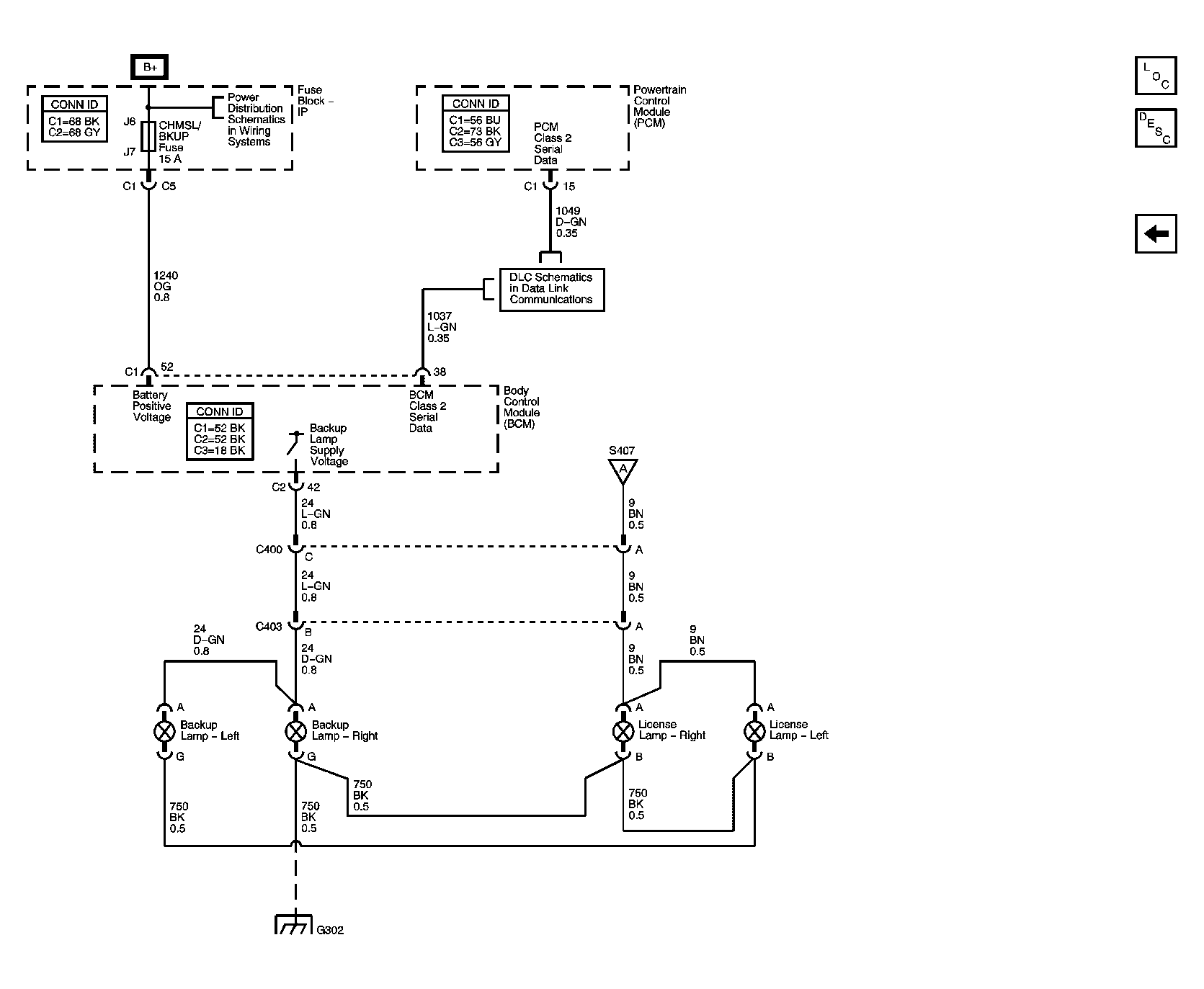

Fig 4: Backup and License Lamps

Courtesy of GENERAL MOTORS CORP.
