Harness Routing Views

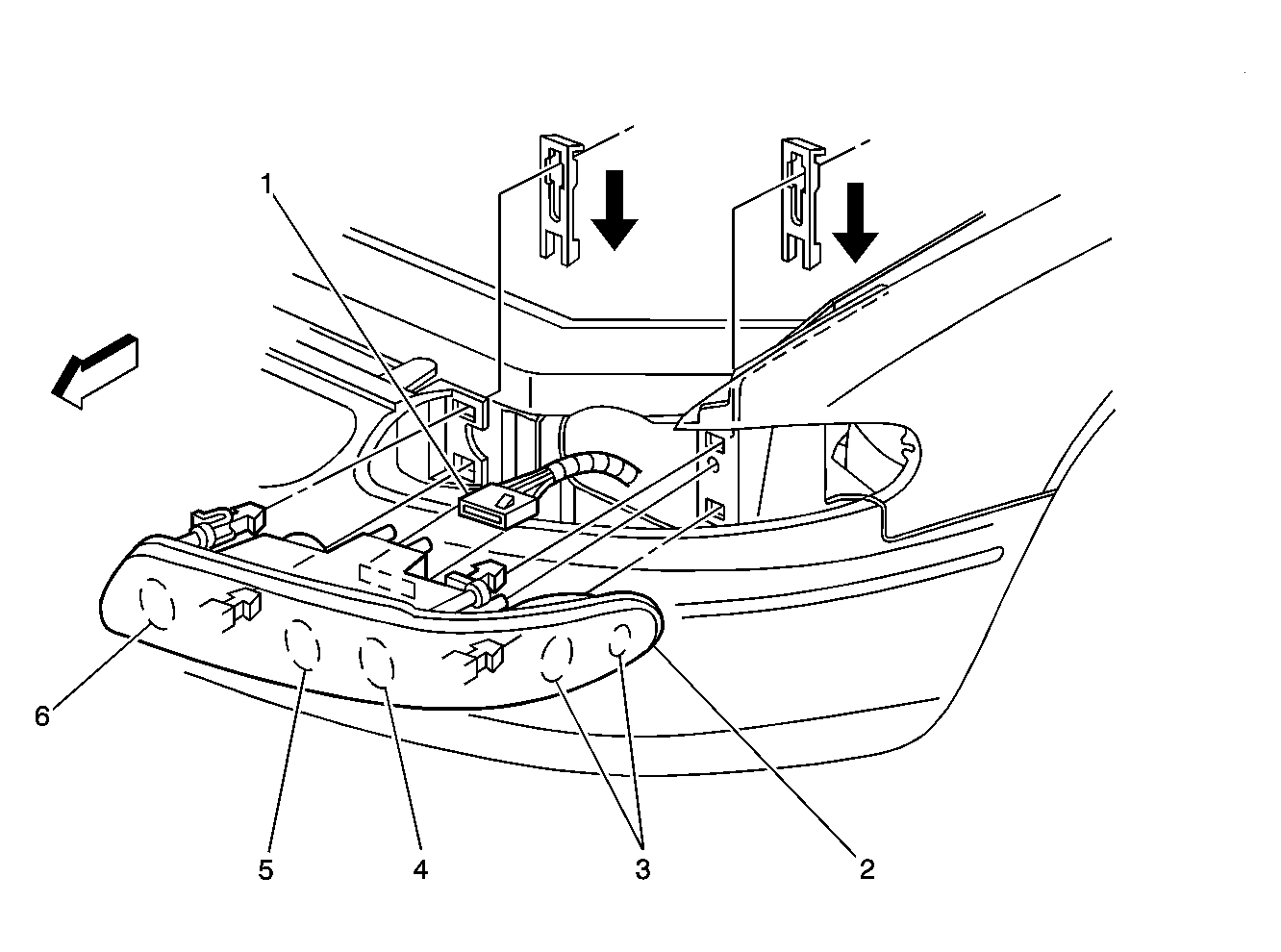

Fig 1: LF Of The Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C106 Shown, C107 Similar
2	Headlamp Assembly - Left Shown, Right Similar
3	Cornering/Marker Lamp - Left Shown, Right Similar
4	Headlamp Low Beam - Left Shown, Right Similar
5	Headlamp High Beam - Left Shown, Right Similar
6	Park/Turn Signal Lamp - LF Shown, RF Similar

Fig 2: Front Of Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C120
2	Fuse Block - Underhood, C3
3	G101
4	Fog Lamp - LF Connector (Regal)
5	C106
6	Forward Lamp Wiring Harness
7	Ambient Outside Air Temperature Sensor Connector (CJ2)
8	Fog Lamp - RF Connector (Regal)
9	C107
10	C103

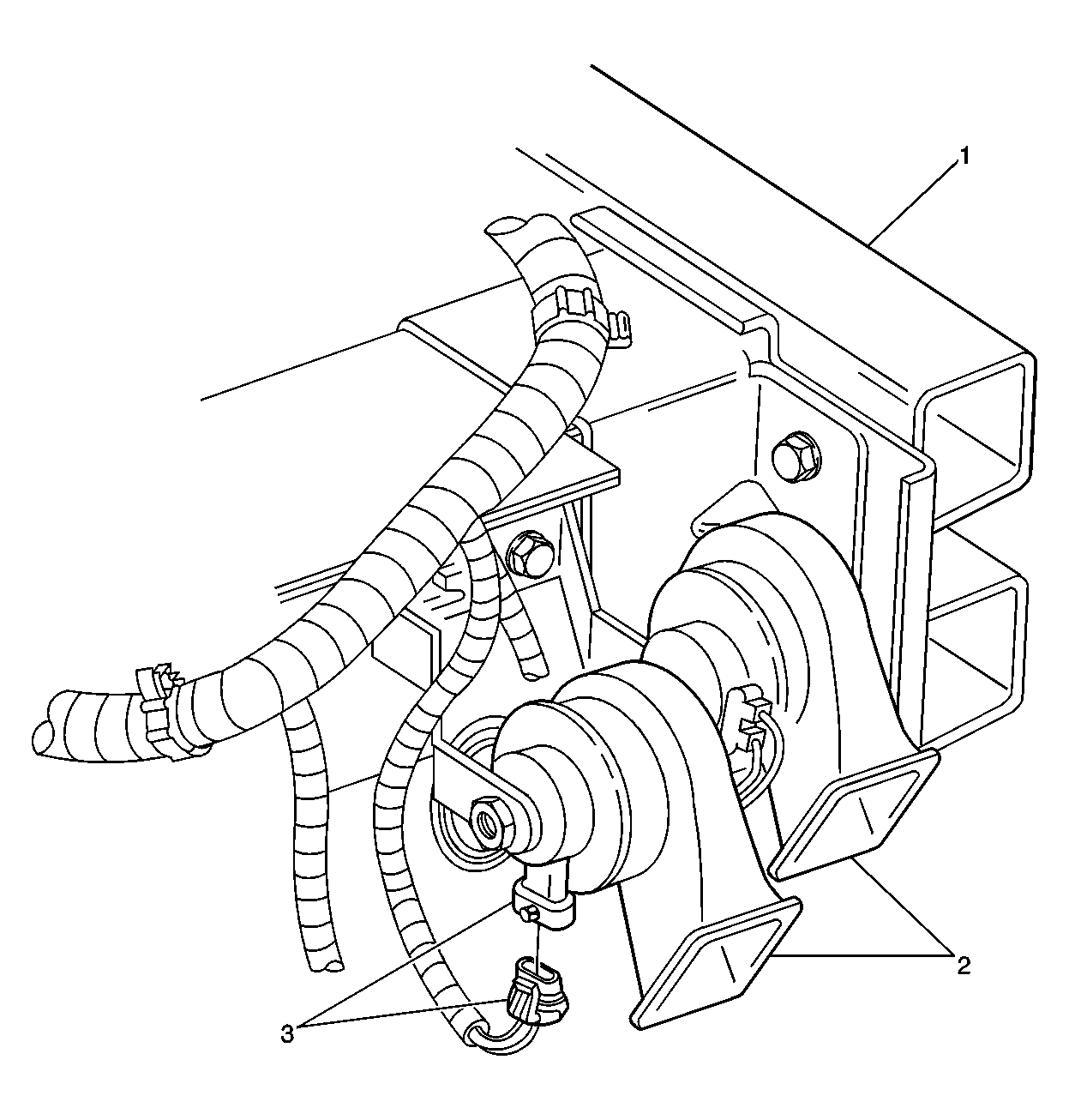

Fig 3: RF Of The Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Frame Rail
2	Horn Assembly
3	C103

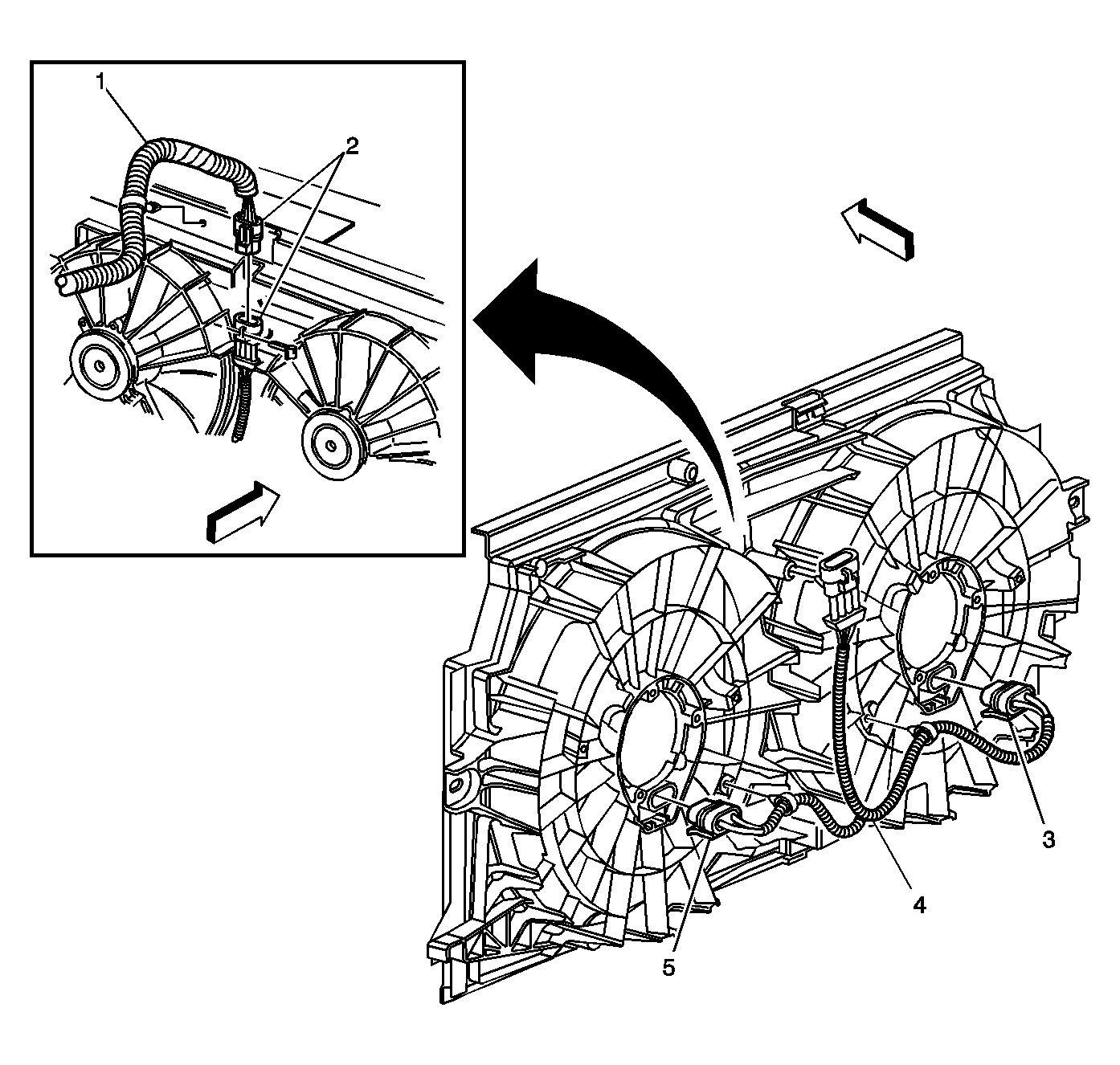

Fig 4: Cooling Fans Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Wiring Harness
2	C105
3	Cooling Fan - Right Connector
4	Cooling Fan Jumper Wiring Harness
5	Cooling Fan - Left Connector

Fig 5: Upper Rear Of The Engine Components (LG8) Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator B+
2	Generator
3	Generator Connector
4	Engine Wiring Harness
5	C102
6	Heated Oxygen Sensor (HO2S) 1
7	Ignition Control Module (ICM), C2
8	Ignition Control Module (ICM), C3

Fig 6: Upper Front Of The Engine Connectors (L36)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	C110
3	Fuel Injector 5
4	C126
5	Engine Wiring Harness
6	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
7	Fuel Injector 3
8	Fuel Injector 1
9	Ignition Control Module (ICM) Wiring Harness

Fig 7: Upper Front Of The Engine Connectors (L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C110
2	C126
3	Idle Air Control (IAC) Valve
4	Throttle Position (TP) Sensor
5	Mass Air Flow (MAF) Sensor
6	Intake Air Temperature (IAT) Sensor Connector
7	Supercharger Boost Control Solenoid
8	Fuel Injector 5
9	Fuel Injector 3
10	Fuel Injector 1

Fig 8: RF Of The Engine Compartment Connectors (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Ignition Control Module (ICM) Wiring Harness
3	C110
4	Ignition Control Module (ICM)
5	Ignition Coils
6	G111
7	Ignition Control Module (ICM) Wiring Harness
8	Ignition Control Module (ICM) Wiring Harness
9	Crankshaft Position (CKP) Sensor

Fig 9: Lower Rear Of The Engine Connectors (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C125
2	Engine Oil Pressure Switch
3	Vehicle Speed Sensor
4	Knock Sensor (KS) 2
5	Knock Sensor (KS) 2 Connector
6	Knock Sensor (KS) 2 Jumper Harness
7	C125

Fig 10: Left Side Of Engine Compartment Connectors (LG8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G111
2	G113
3	C113
4	Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
5	C101
6	A/C Refrigerant Pressure Sensor Connector
7	Wheel Speed Sensor (WSS) - LF (JL9/JM4)

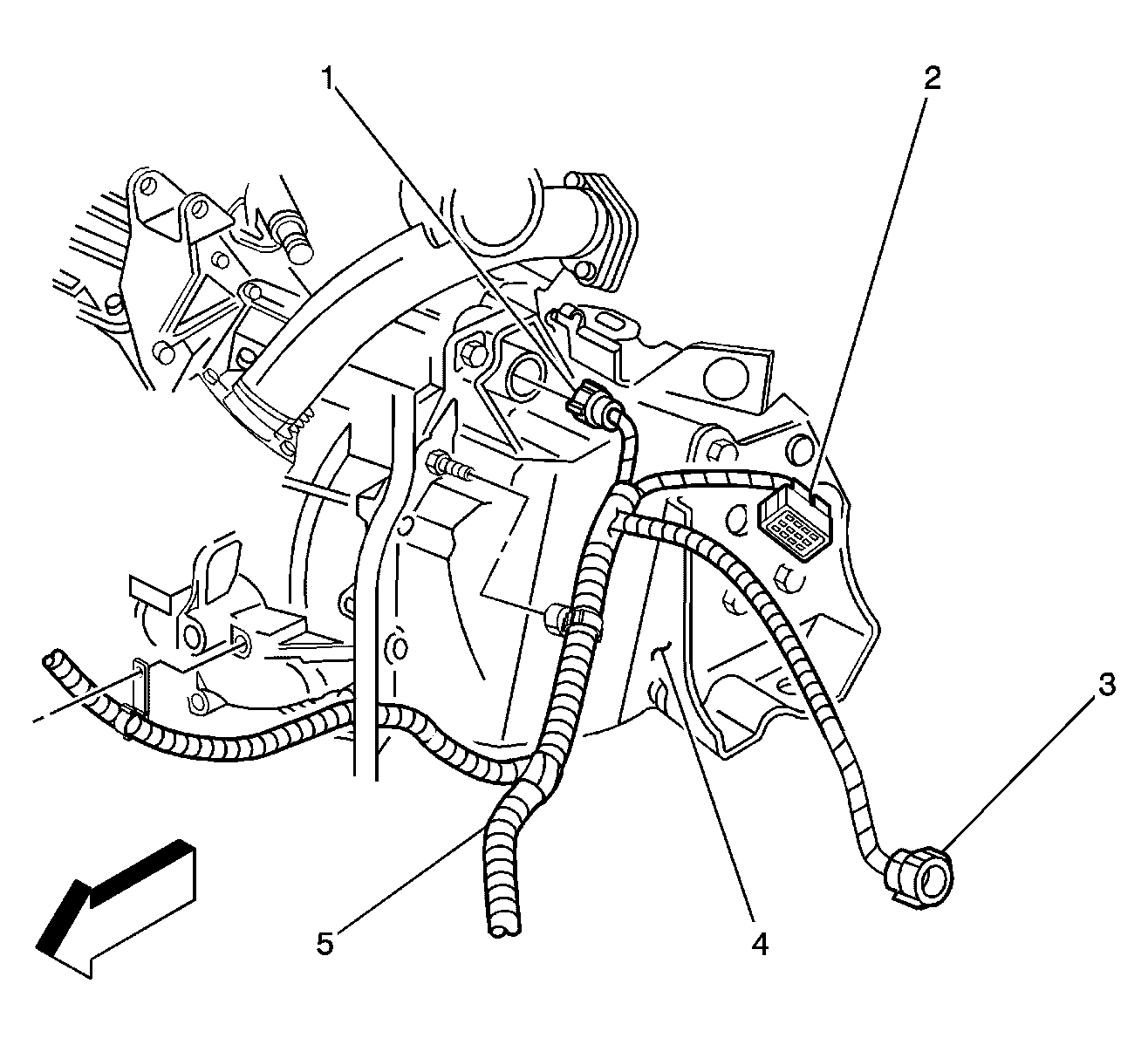

Fig 11: Transmission Connectors (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C113
2	Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
3	C101
4	Automatic Transmission
5	Engine Wiring Harness

Fig 12: LR Of The Engine Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P103
2	I/P Wiring Harness
3	Cruise Control Module (CCM) Connector
4	Cruise Control Module (CCM) (K34)
5	Electronic Brake Control Module (EBCM) (JL9/JM4)
6	Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
7	Engine Wiring Harness
8	Brake Fluid Level Switch
9	C101
10	A/C Refrigerant Pressure Sensor
11	Engine Wiring Harness
12	G171 (JL9/JM4)

Fig 13: IP Harness Passthrough To Engine Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P100

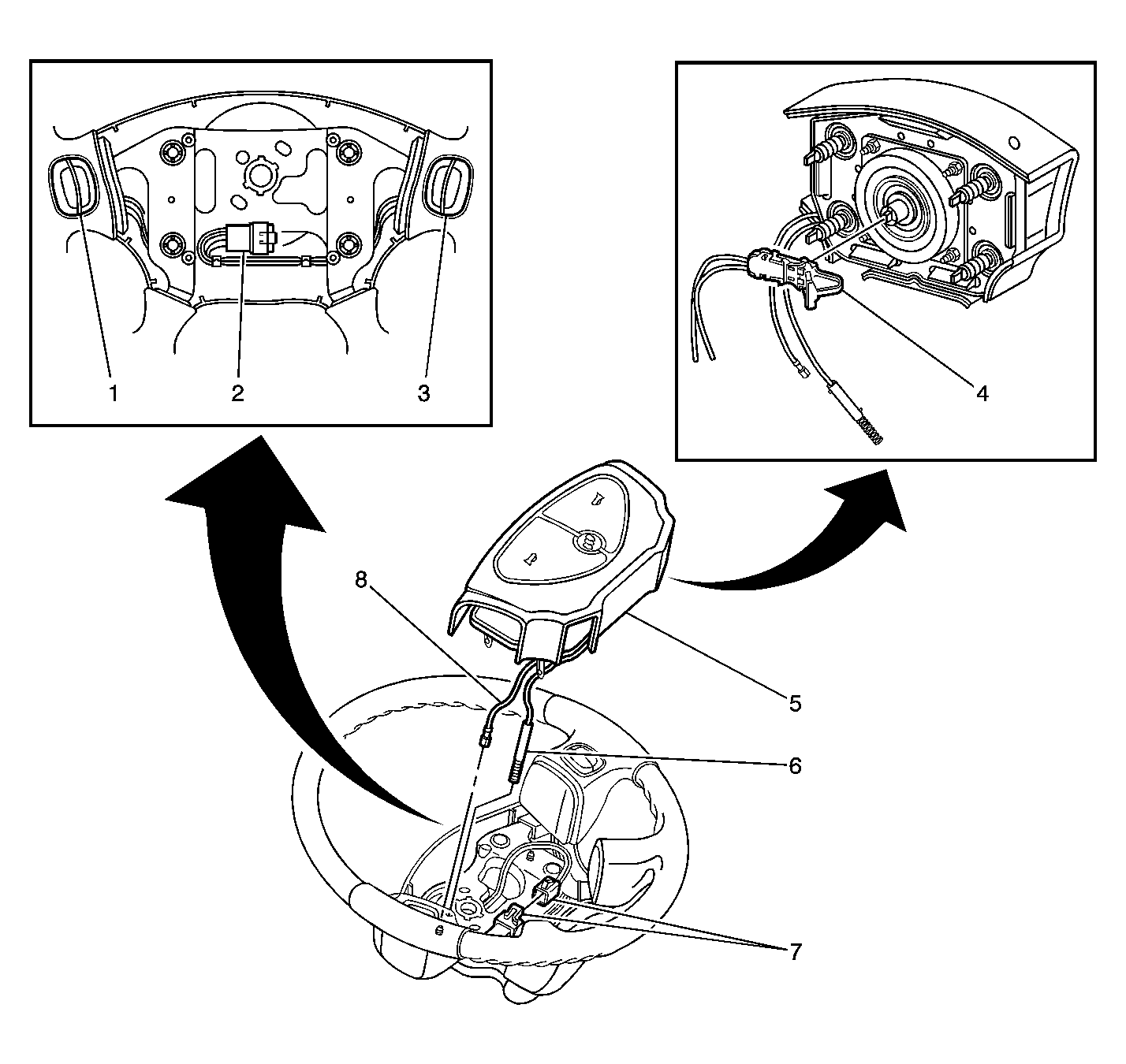

Fig 14: Steering Wheel Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left (UK3)
2	C203 (UK3)
3	Steering Wheel Controls - Right (UK3)
4	Inflatable Restraint Steering Wheel Module Connector
5	Inflatable Restraint Steering Wheel Module
6	Horn Switch B+ Connector
7	C203 (UK3)
8	Horn Switch Ground Connector

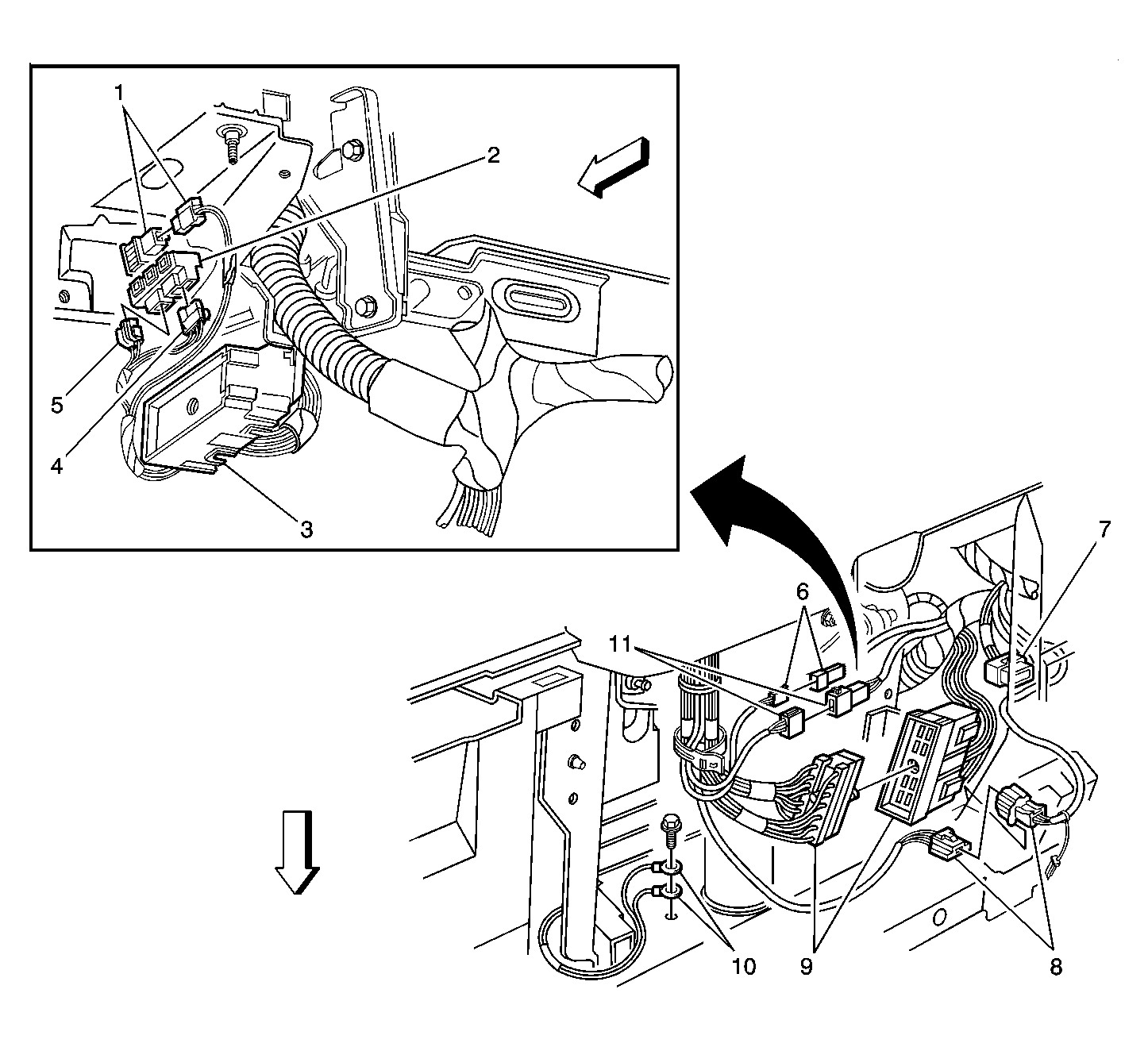

Fig 15: Lower Left Of The I/P Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Release Switch
2	Stop Lamp Switch
3	C201
4	Stop Lamp Switch Connector C2
5	Stop Lamp Switch Connector C1
6	C207
7	C216
8	C215
9	C201
10	G201
11	C205 (UK3)

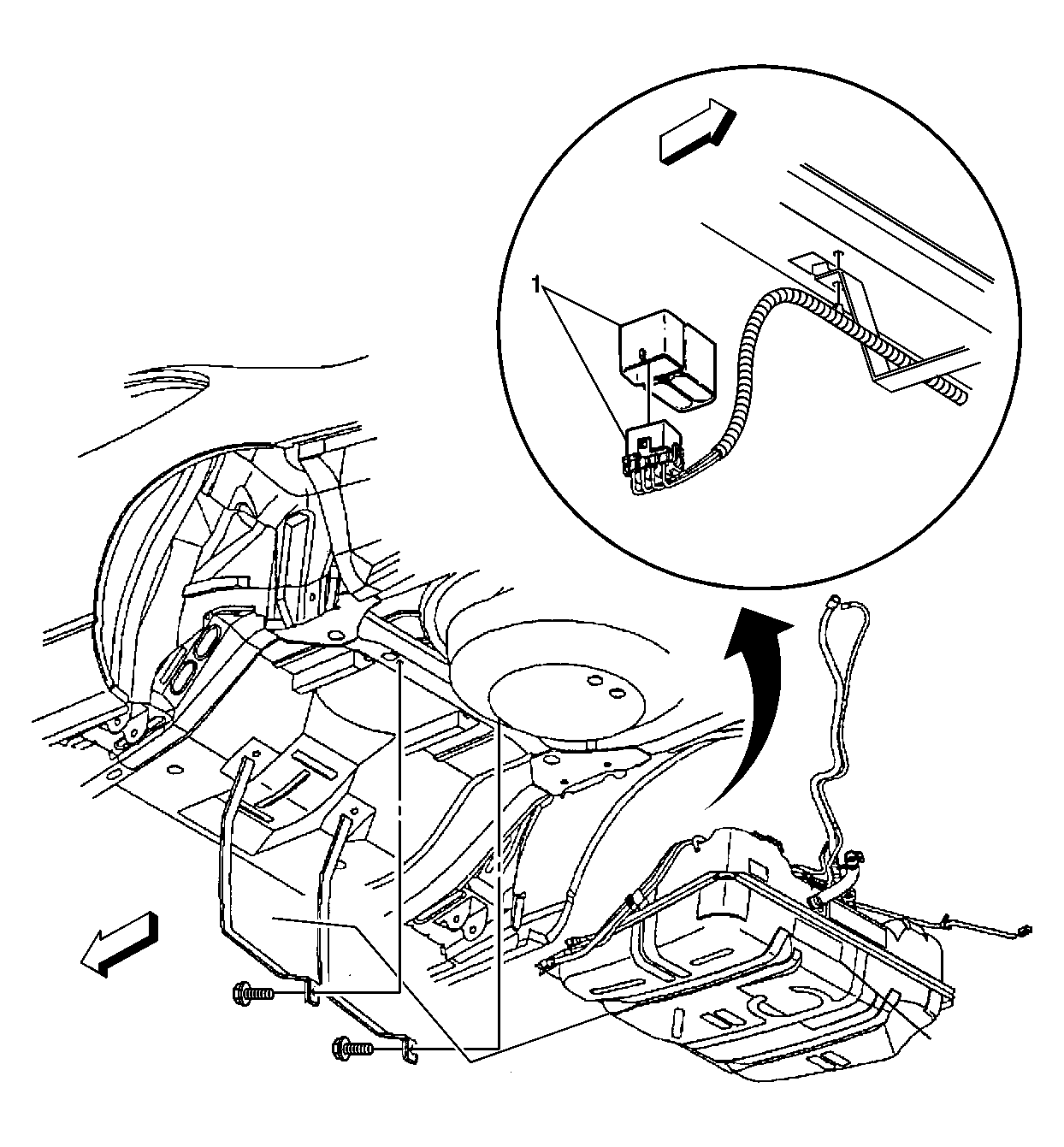

Fig 16: Vehicle Fuel Tank Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C405

Fig 17: Behind The Right Side Of The I/P Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Reservoir
2	G200
3	Fuse Block - I/P
4	C200
5	Blower Motor
6	Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7	P100
8	Vacuum Reservoir
9	Black Vacuum Hose
10	Air Temperature Actuator - Right
11	Automatic Headlamp Relay
12	Rear Compartment Lid Release Relay
13	Rear Window Defogger Relay
14	Retained Accessory Power (RAP) Relay
15	I/P Wiring Harness
16	Air Temperature Actuator - Left

Fig 18: Right Side Of The I/P Connectors - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C200
2	G200
3	Fuse Block - I/P
4	I/P Wiring Harness
5	C290
6	Body Wiring Harness
7	C200

Fig 19: Right Side Of Instrument Panel Connectors - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Lamp Relay
2	Brake to Shift Relay
3	P100
4	Fuse Block-I/P

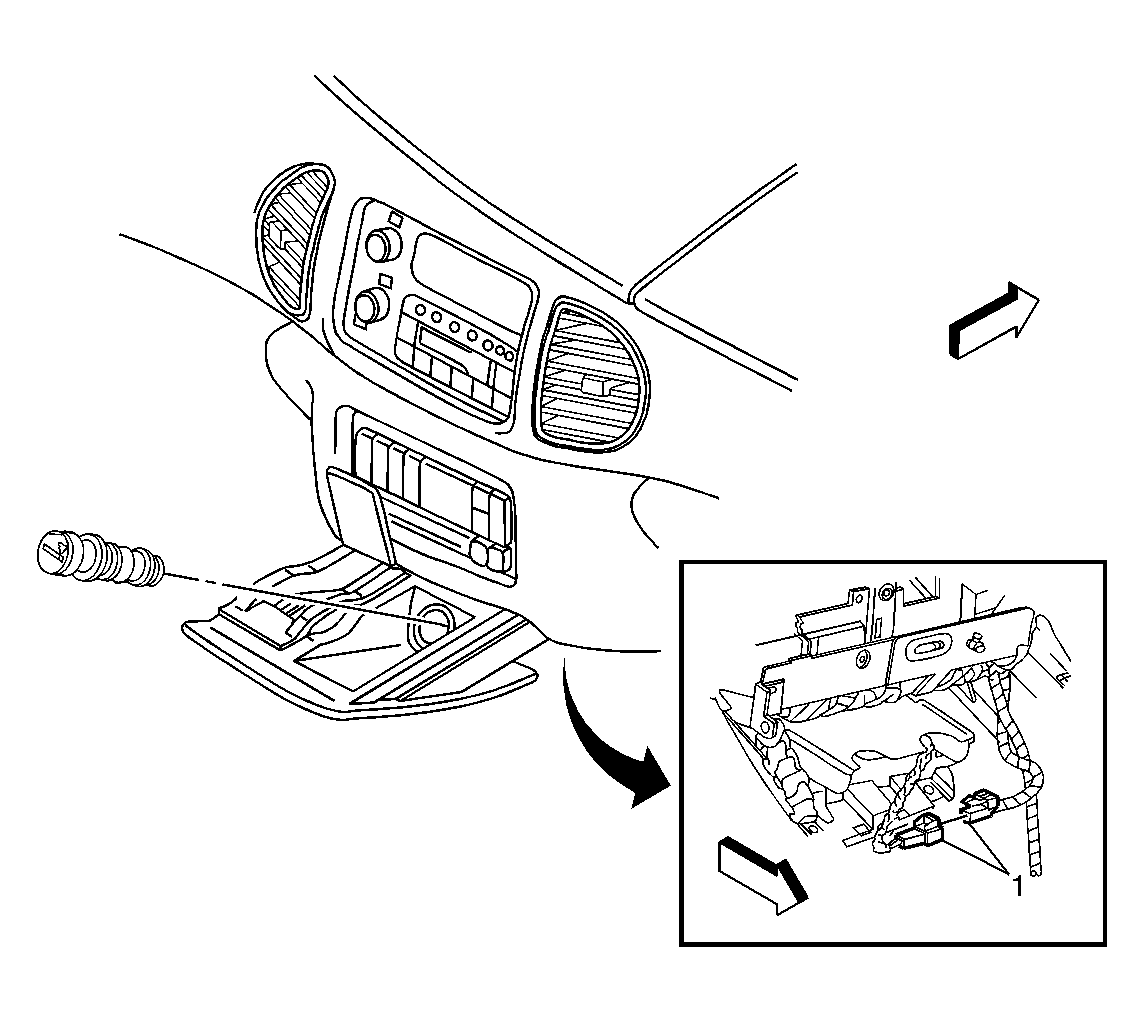

Fig 20: Cigar Lighter Connectors (Century)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C242

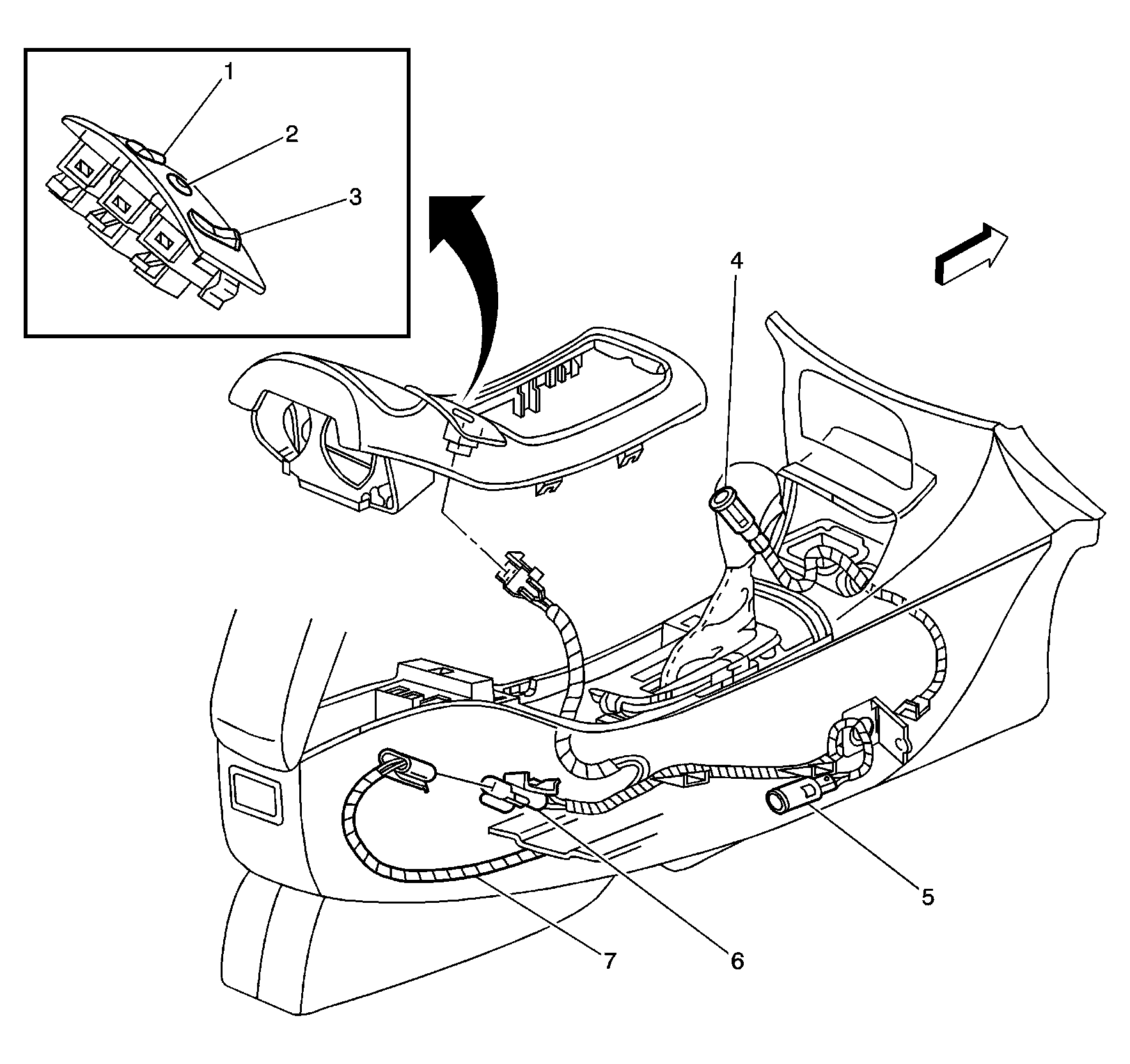

Fig 21: Center Console Connectors (D06)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Driver (KA1)
2	Traction Control Switch (Regal)
3	Heated Seat Switch - Passenger (KA1)
4	Cigar Lighter
5	Auxiliary Power Outlet (Regal)
6	C240 (Regal)
7	I/P Wiring Harness

Fig 22: Left Side Of The Passenger Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Wiring Harness
2	C351
3	Park Brake Cable
4	G301
5	C301
6	C311
7	Body Wiring Harness

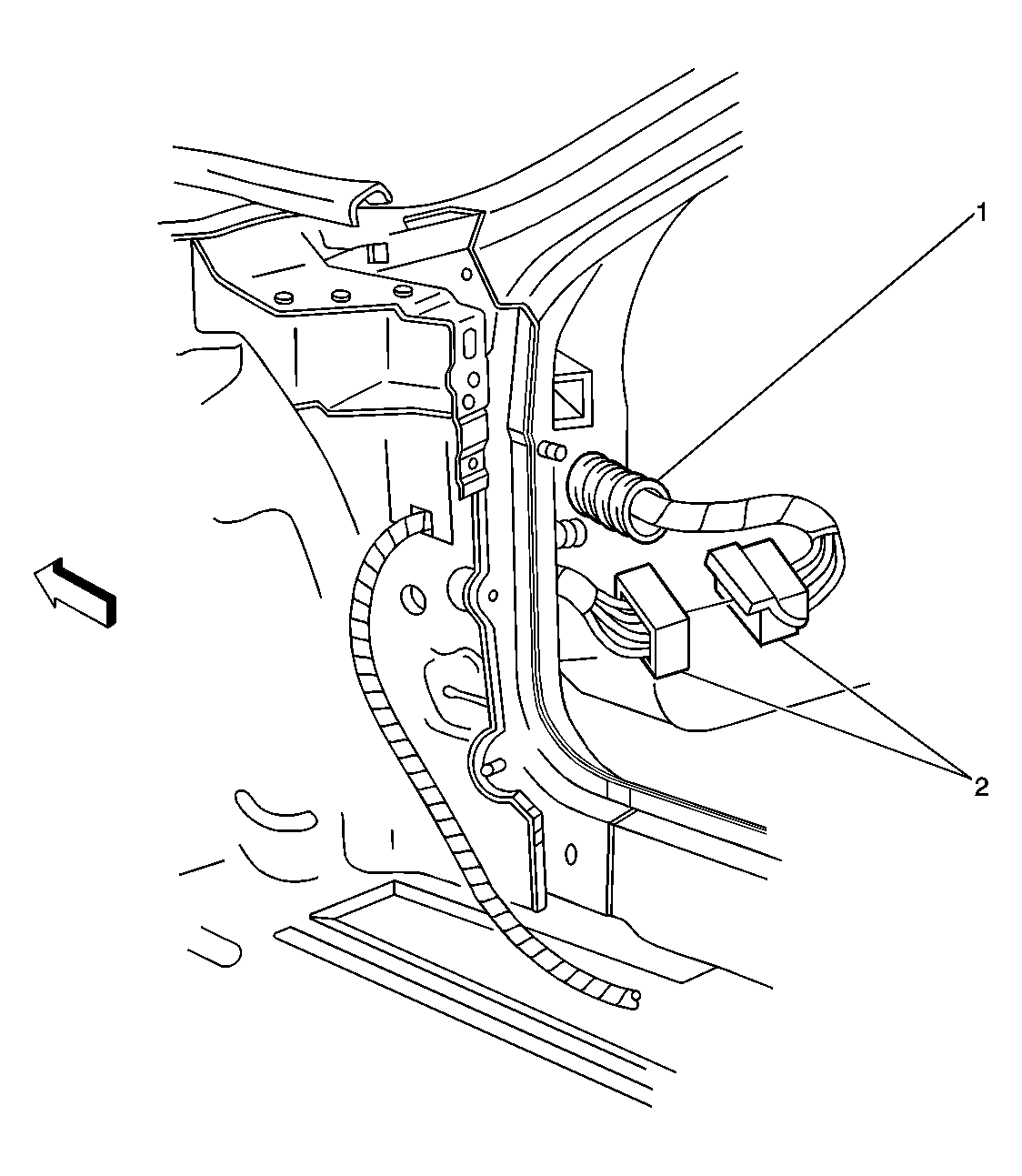

Fig 23: Lower RH A Pillar Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P500
2	C301

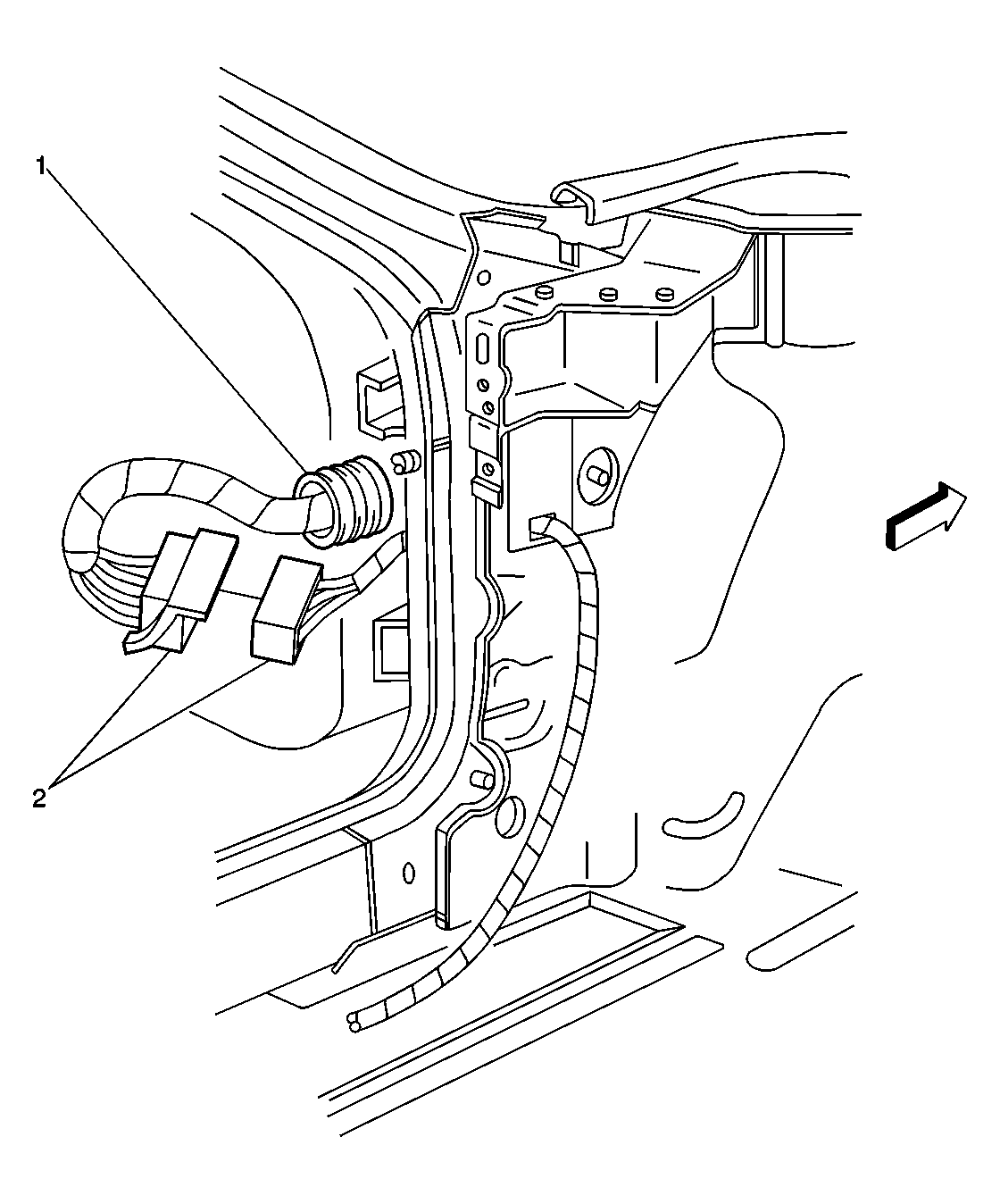

Fig 24: Lower LH A Pillar Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P600
2	C302

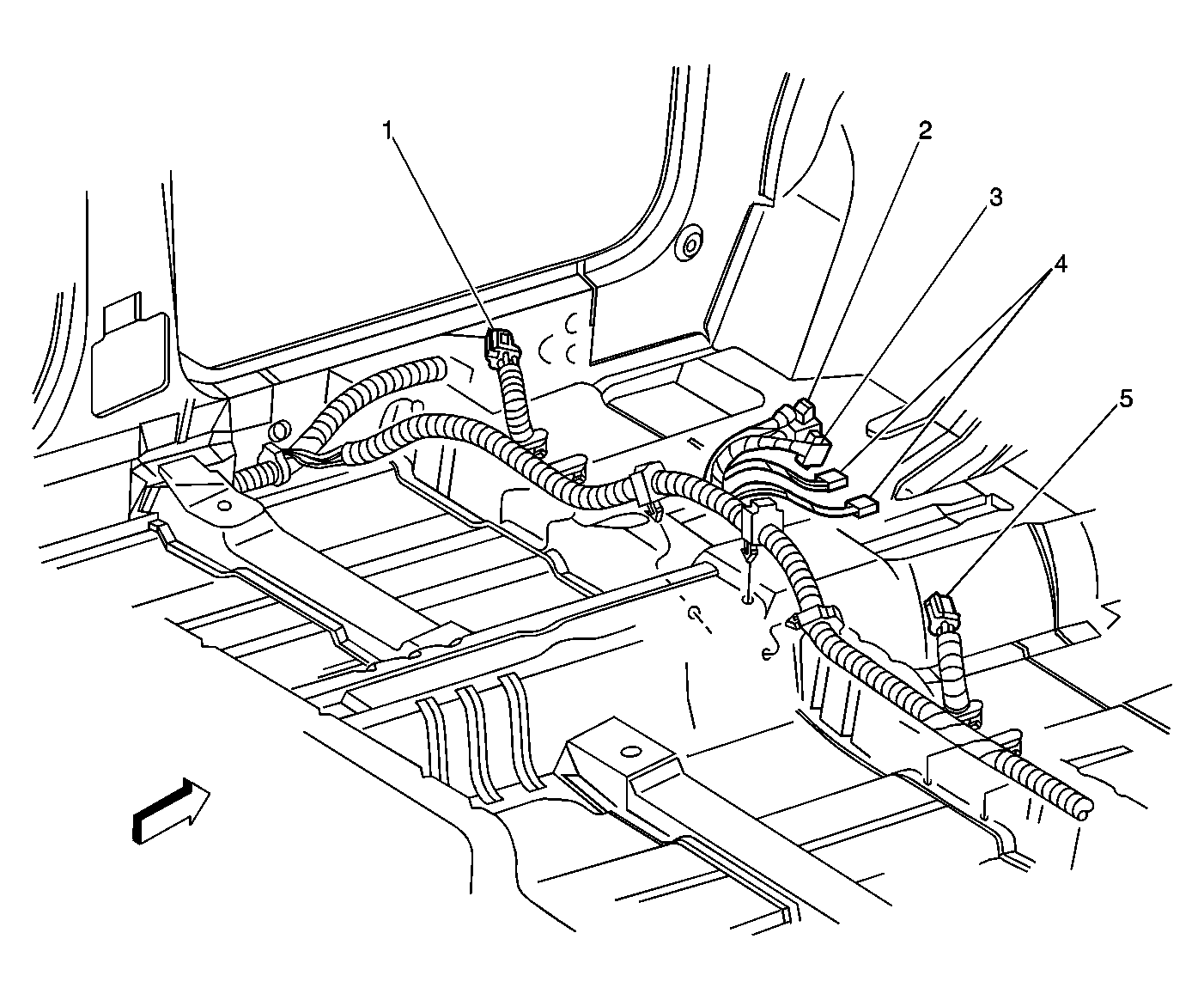

Fig 25: Cross Body Wiring Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C311
2	Inflatable Restraint Sensing and Diagnostic Module Connector
3	Heated Seat Switch - Driver
4	Heated Seat Switch - Passenger
5	C312

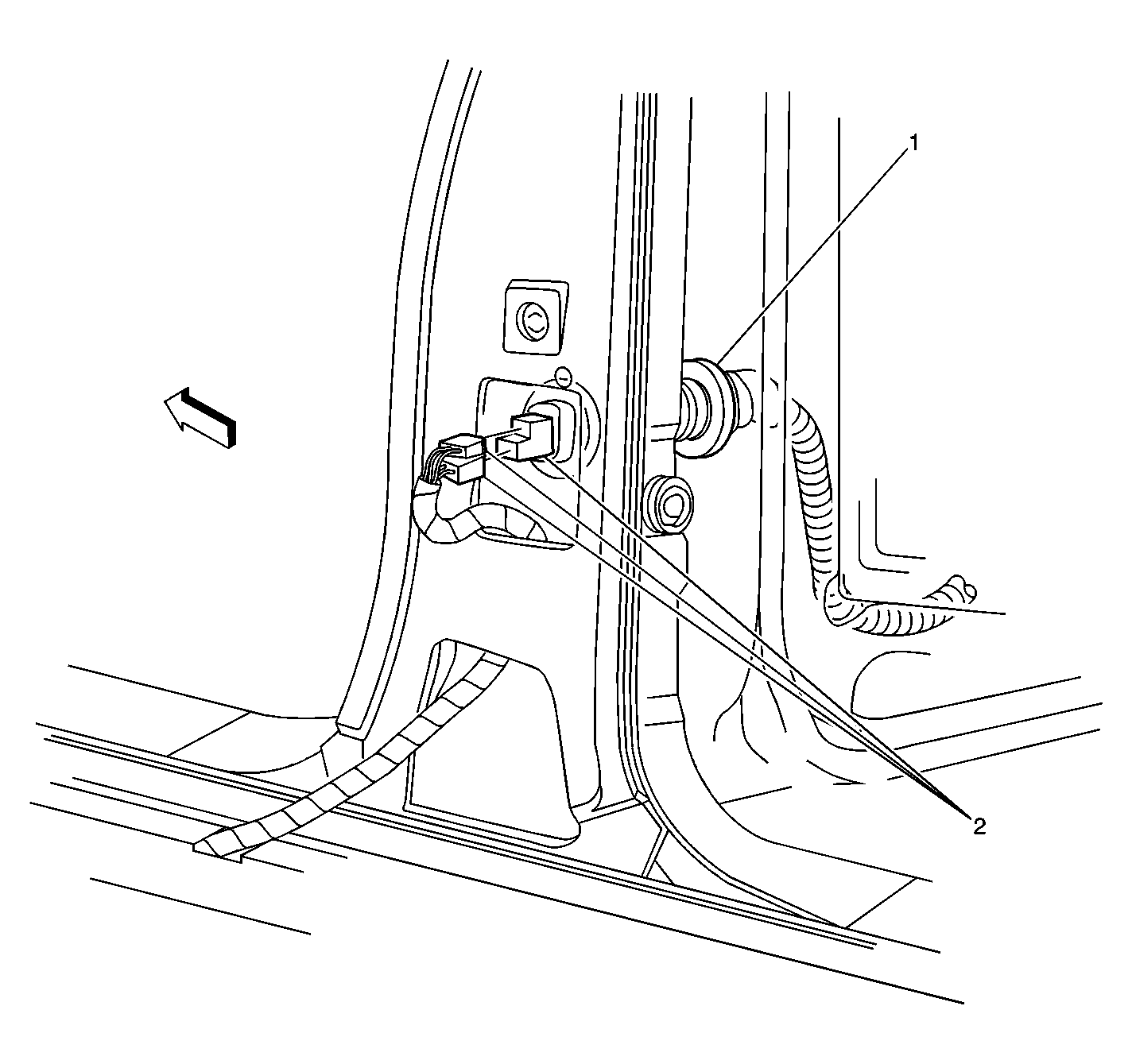

Fig 26: LH Pillar B Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P700 LH Shown, P800 RH Similar
2	C351 LR Shown, RR C352 Similar

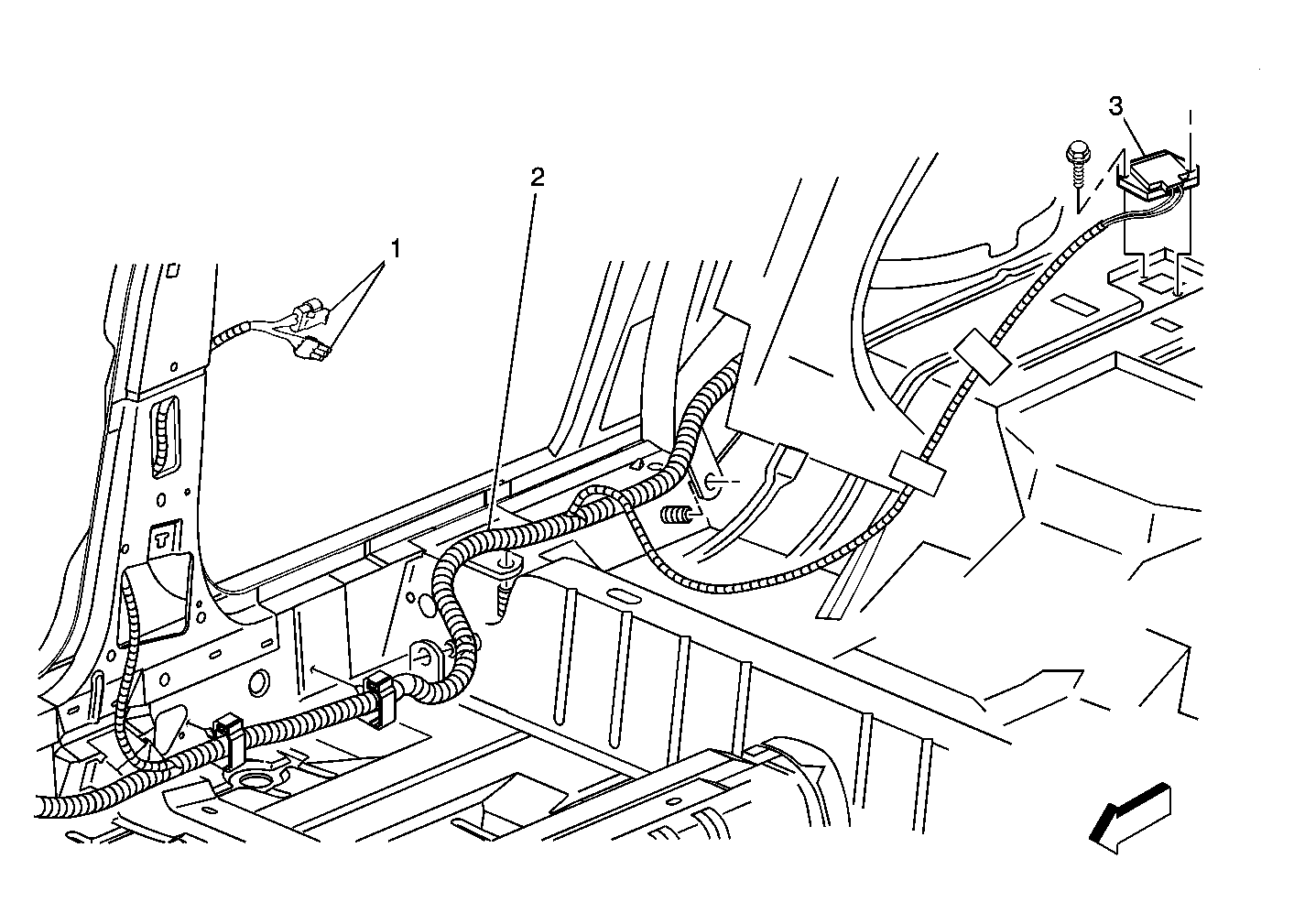

Fig 27: Right Side Of Passenger Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C352
2	Body Wiring Harness
3	C405

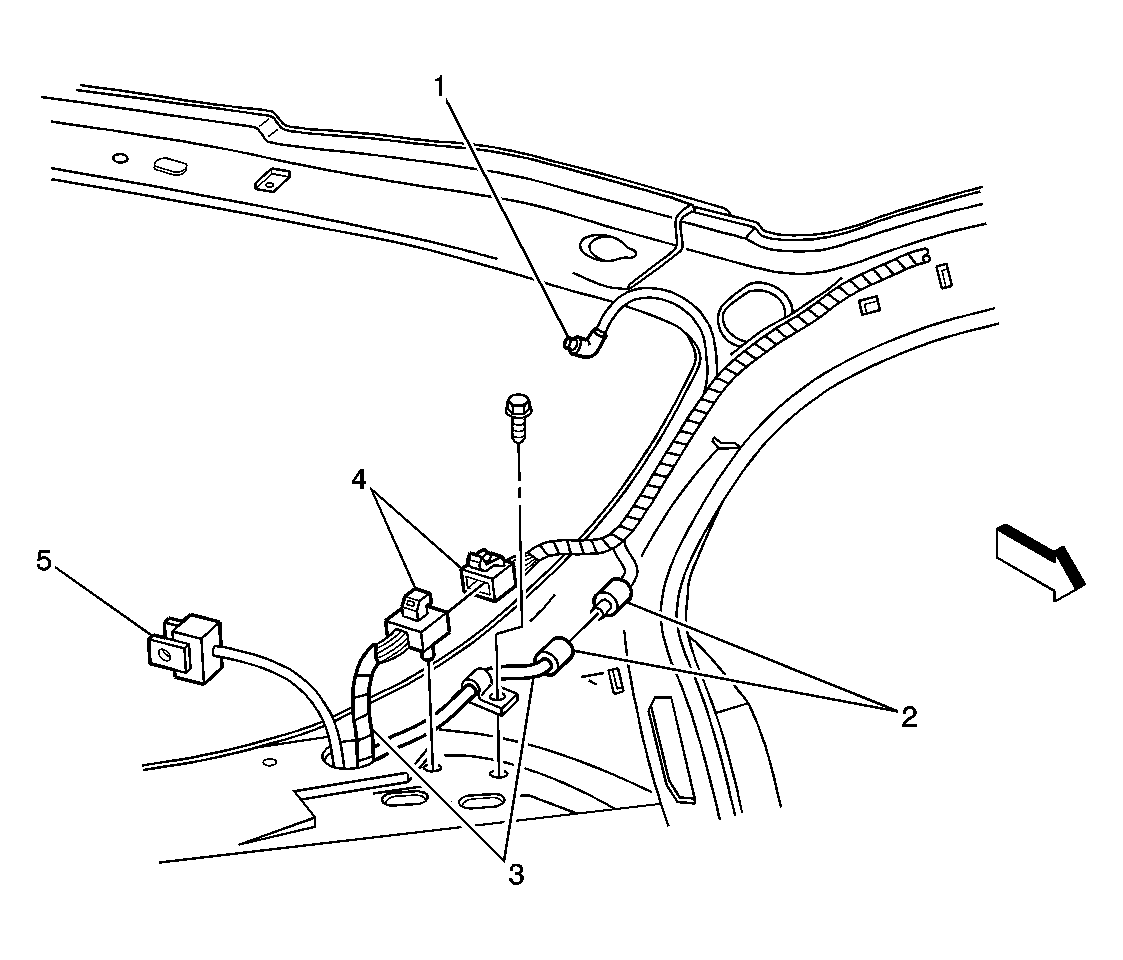

Fig 28: Left Side Of Rear Window Shelf Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna Connector (UE1)
2	C404 (UE1)
3	Body Wiring Harness
4	C403 (UE1)
5	Navigation Antenna Connector (UE1)

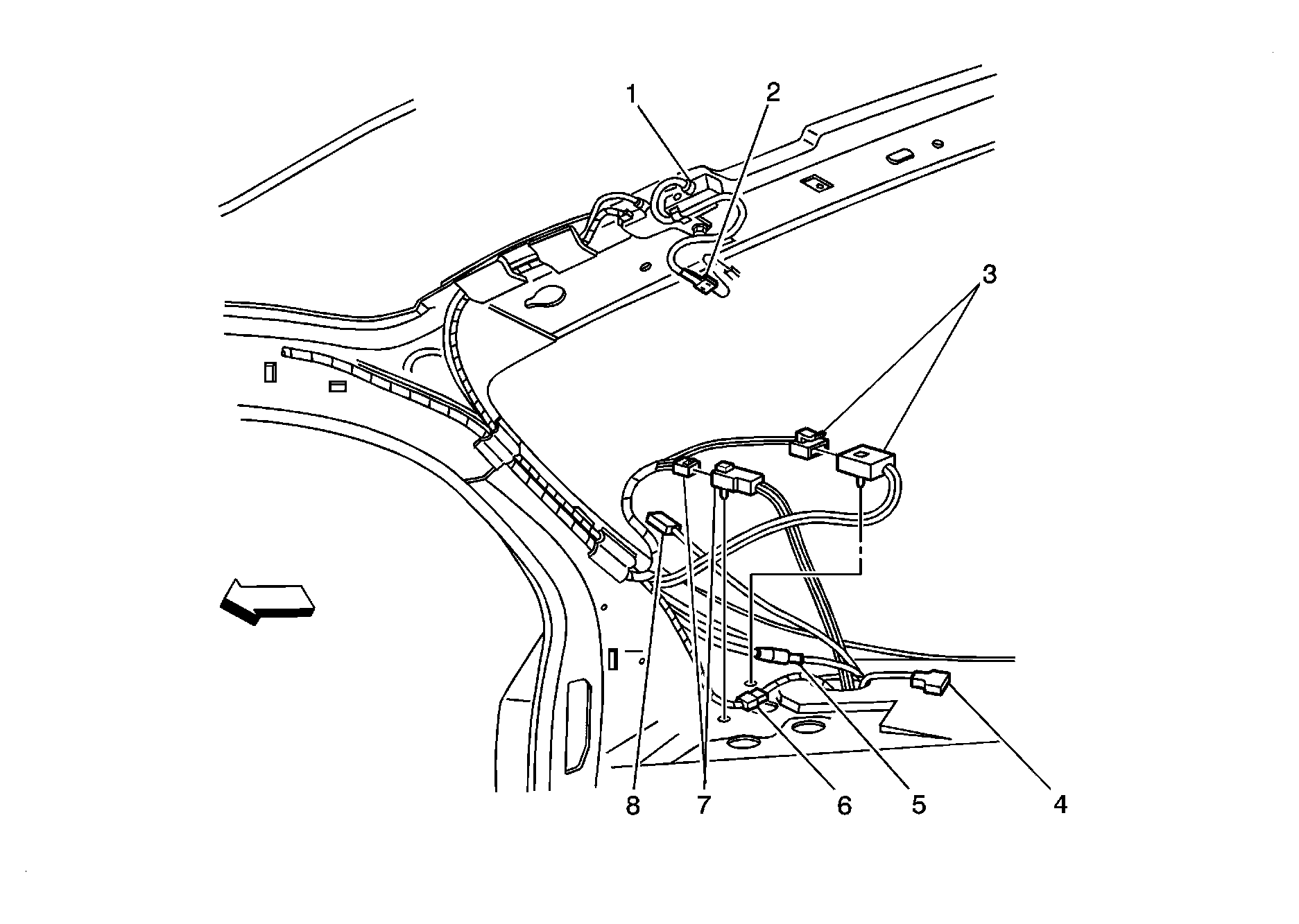

Fig 29: Right Side Of The Rear Window Shelf Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Module (U77)
2	Rear Window Antenna Grid Connector (U77)
3	C398
4	C420
5	C399
6	C395 (U77)
7	C390
8	Rear Window Defogger Connector, C1

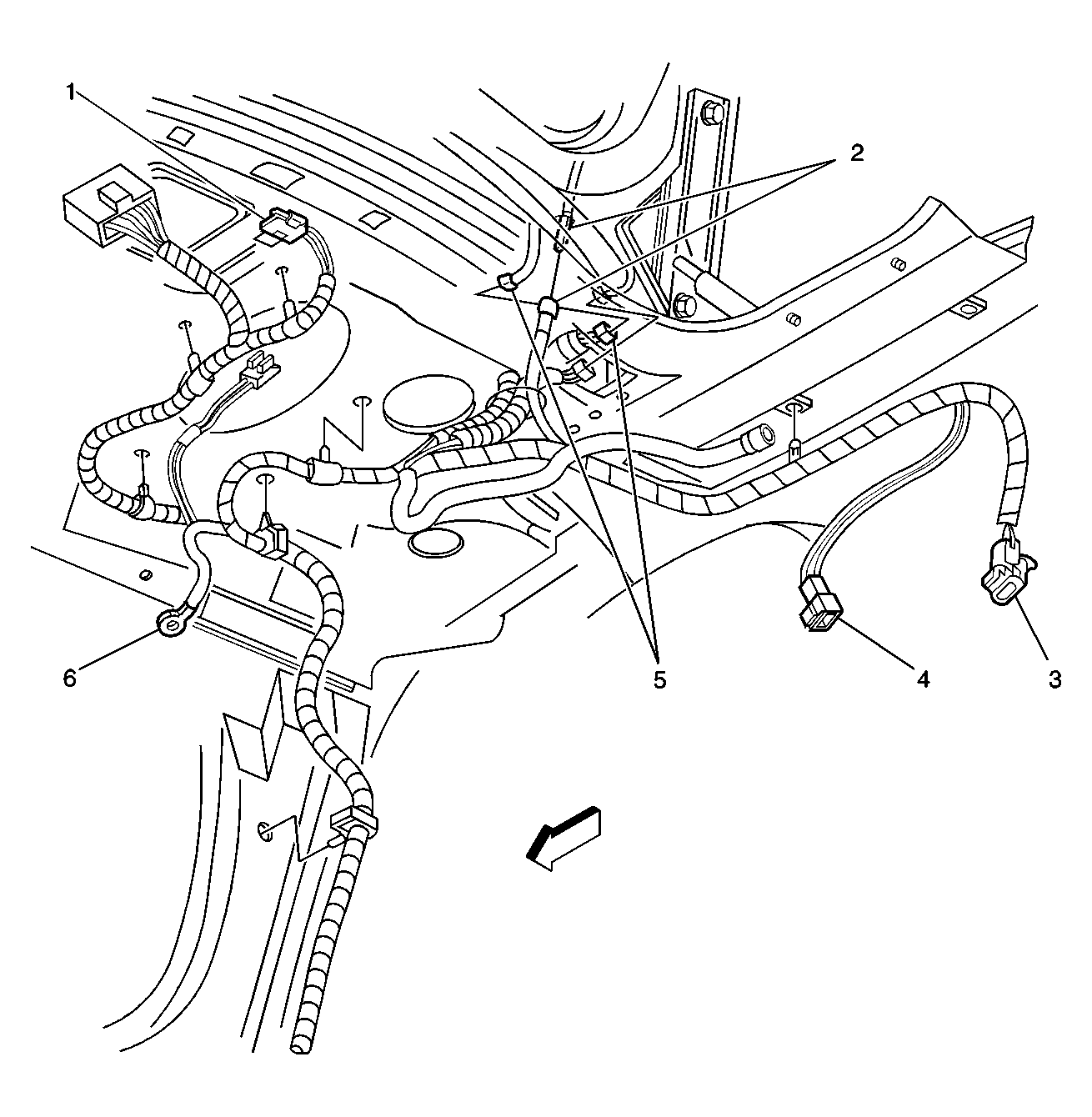

Fig 30: Right Side Of Rear Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp Connector
2	C399
3	C402
4	C410
5	C395 (U77)
6	G402

Fig 31: Left Side Of Rear Compartment Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR Connector
2	G401
3	P425
4	Evaporative Emissions (EVAP) Canister Vent Solenoid Connector
5	C402

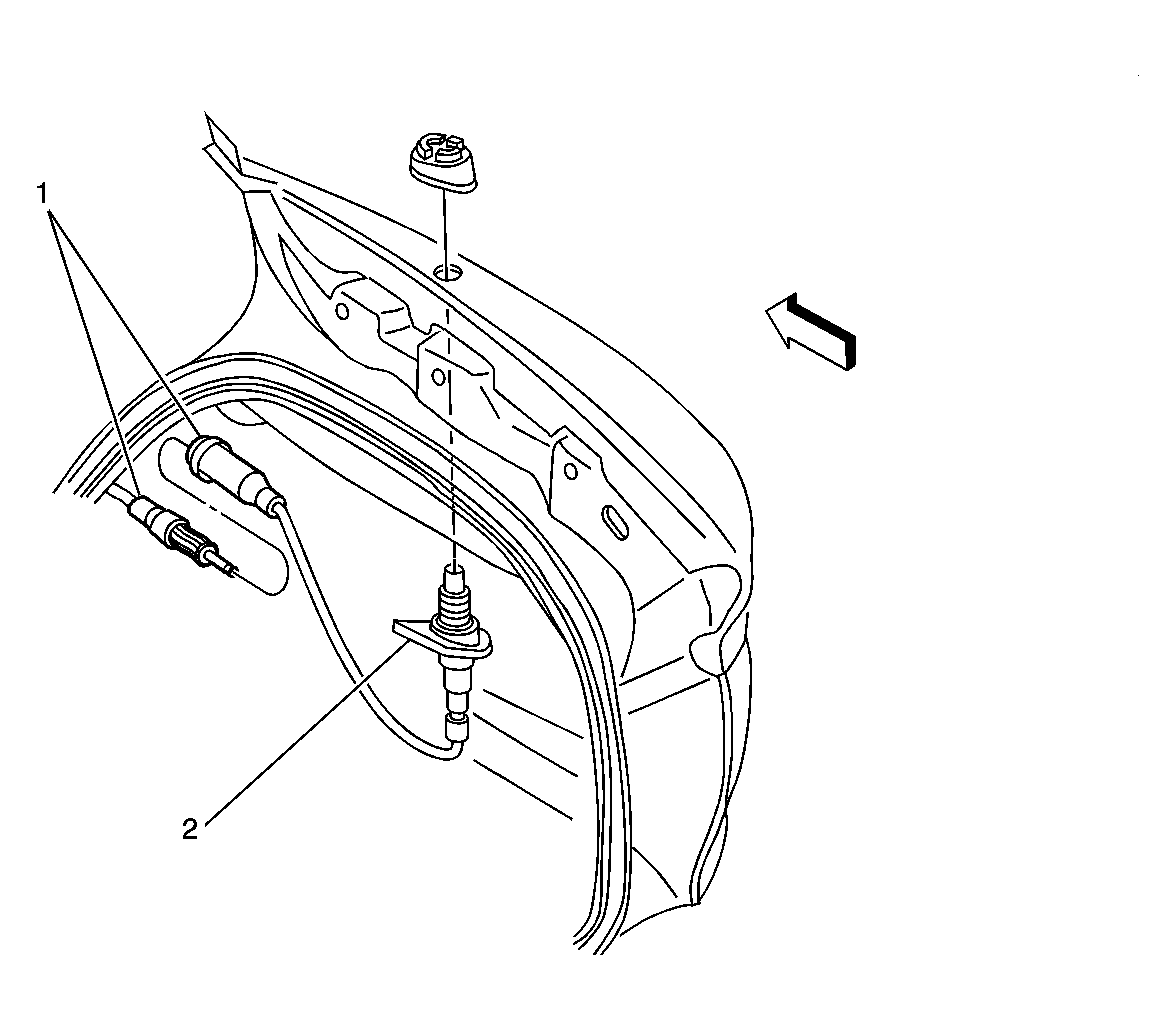

Fig 32: Right Side Of The Luggage Compartment Connectors (US6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C399
2	Fixed Mast Antenna

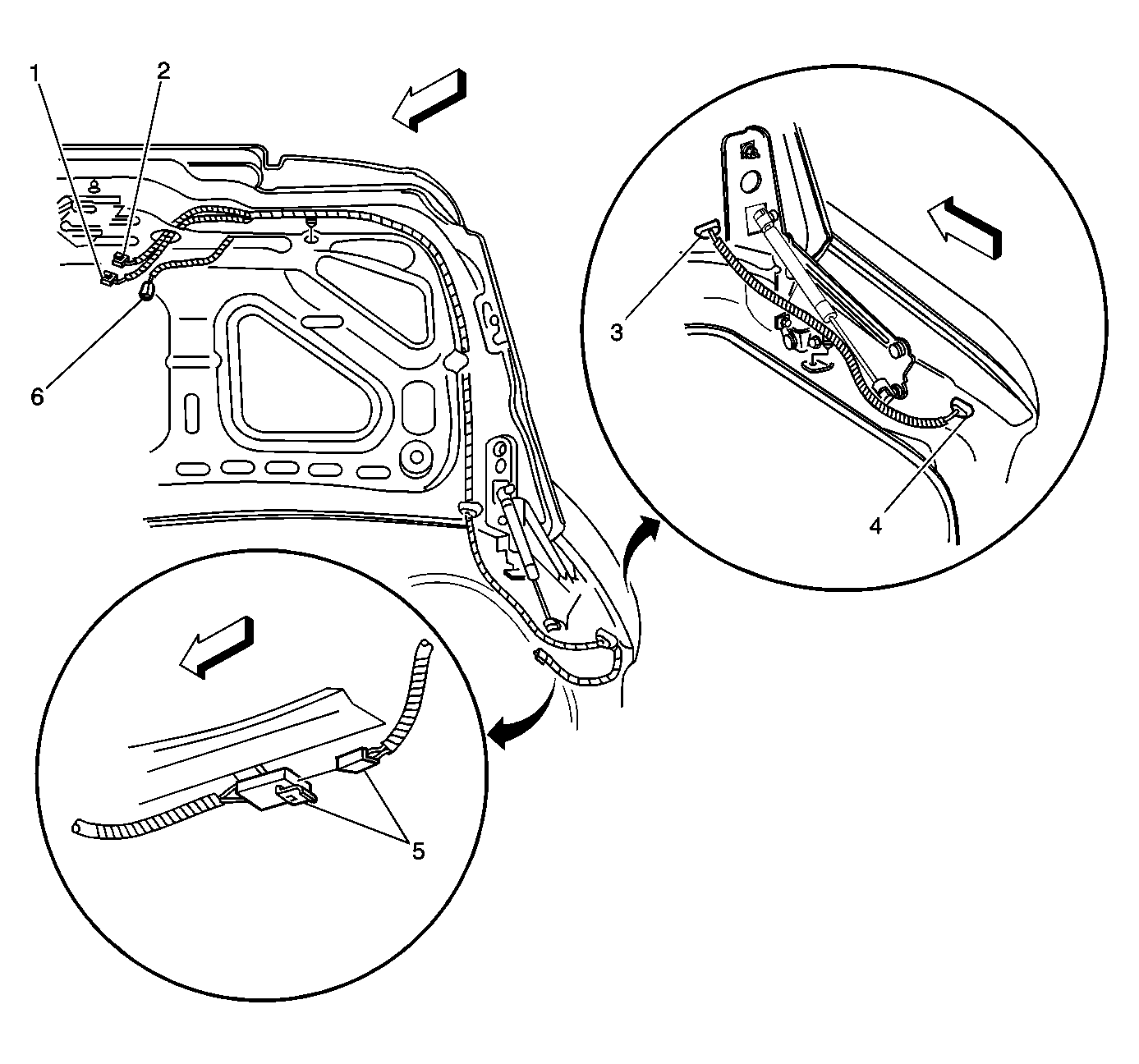

Fig 33: Rear Compartment Lid Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Ajar Switch Connector
2	Rear Compartment Lid Lock Release Actuator Connector
3	P932
4	P430
5	C410
6	C915

Fig 34: LR Of The Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
2	Body Wiring Harness
3	Evaporative Emissions (EVAP) Canister
4	P425
5	Body Wiring Harness

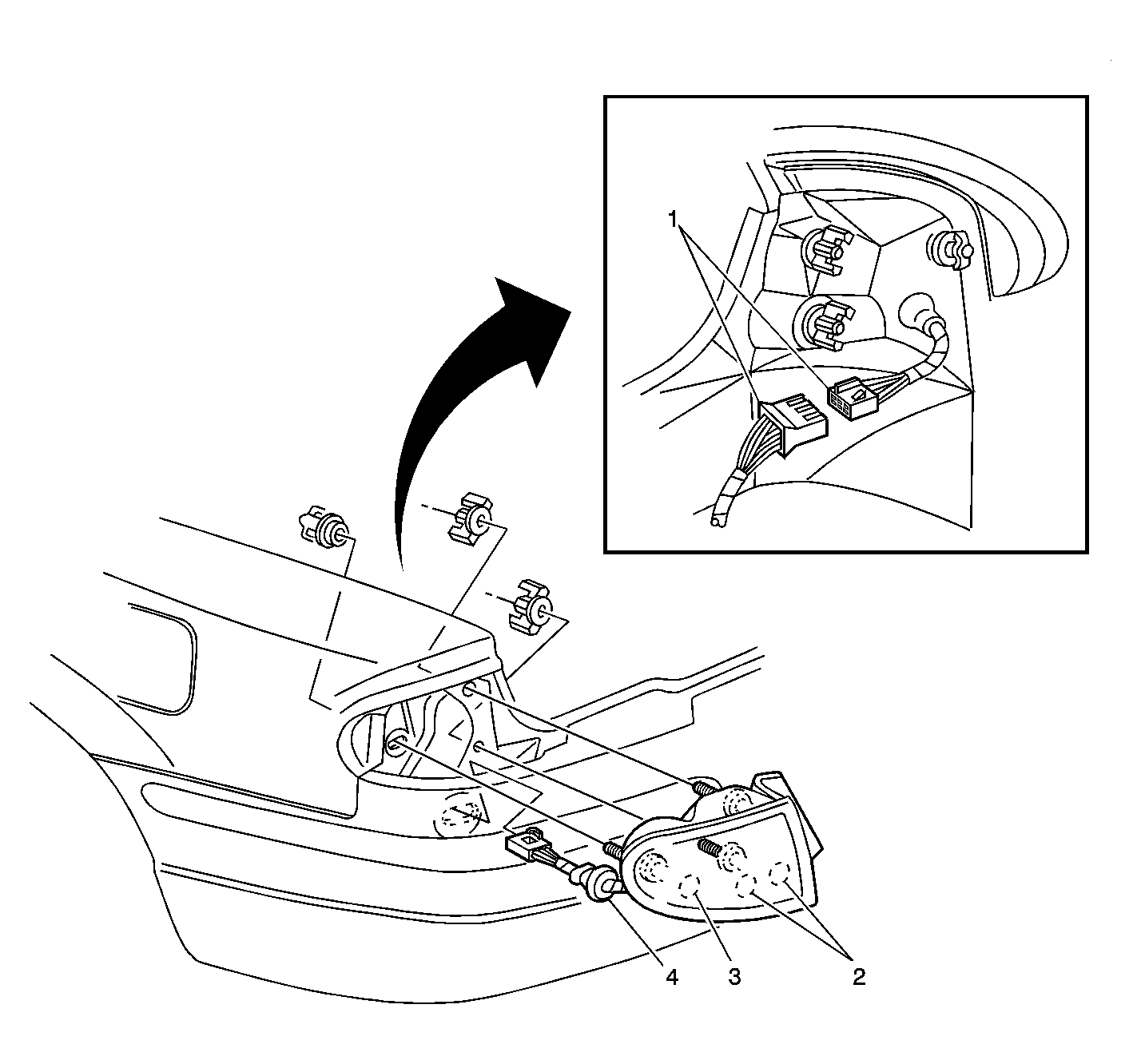

Fig 35: Left Rear Of Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401 Shown, C402 Similar
2	Tail/Stop and Turn Signal Lamp - Left Shown, Right Similar
3	Marker Lamp - LR Shown, RR Similar
4	P401 Shown, P402 Similar

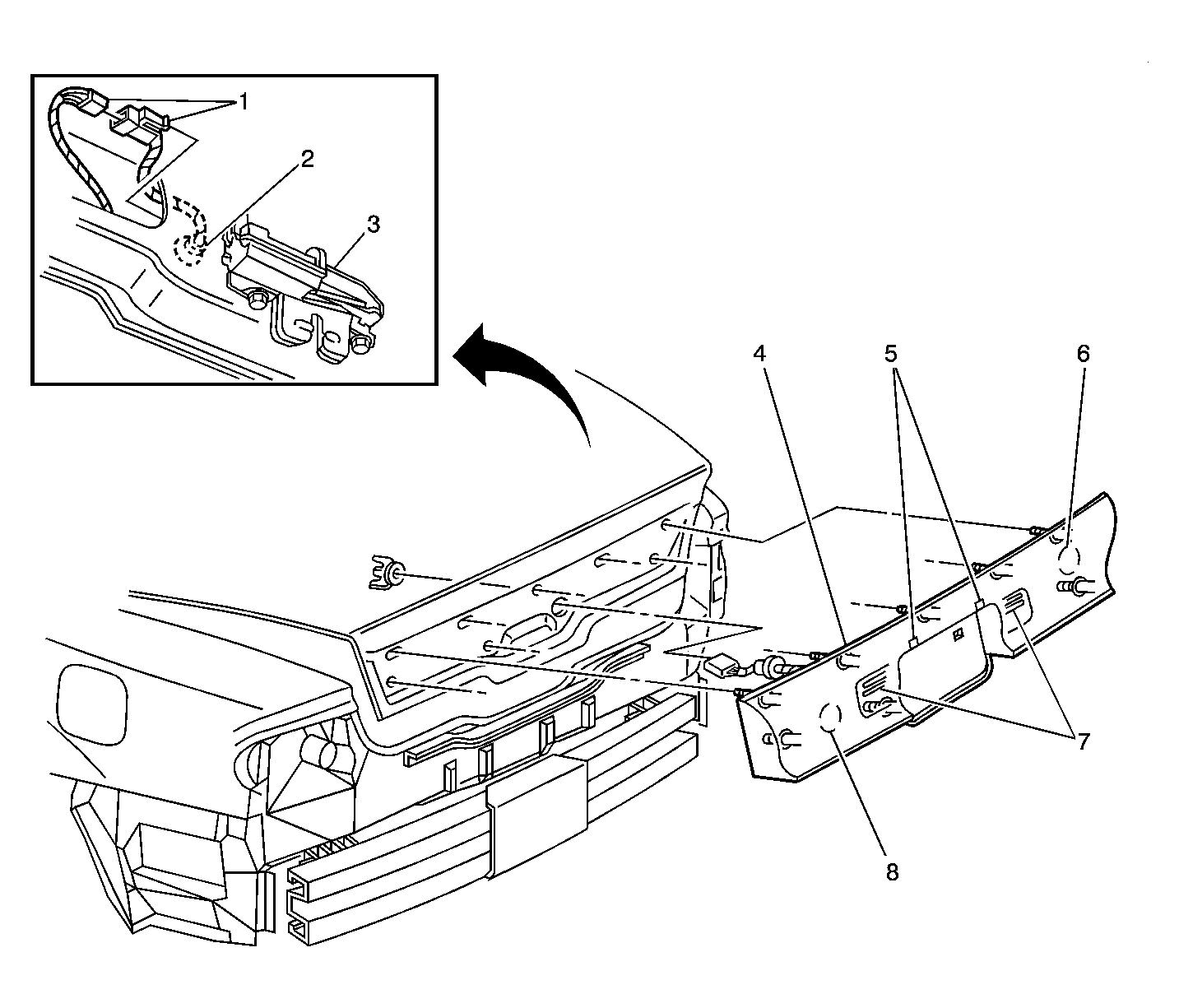

Fig 36: Rear Of The Vehicle Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C915
2	P915
3	Rear Compartment Lid Lock Release Actuator
4	Rear Compartment Lid Applique
5	License Lamps
6	Tail Lamp - Right
7	Back Up Lamps
8	Tail Lamp - Left
