Body Rear End Component Views

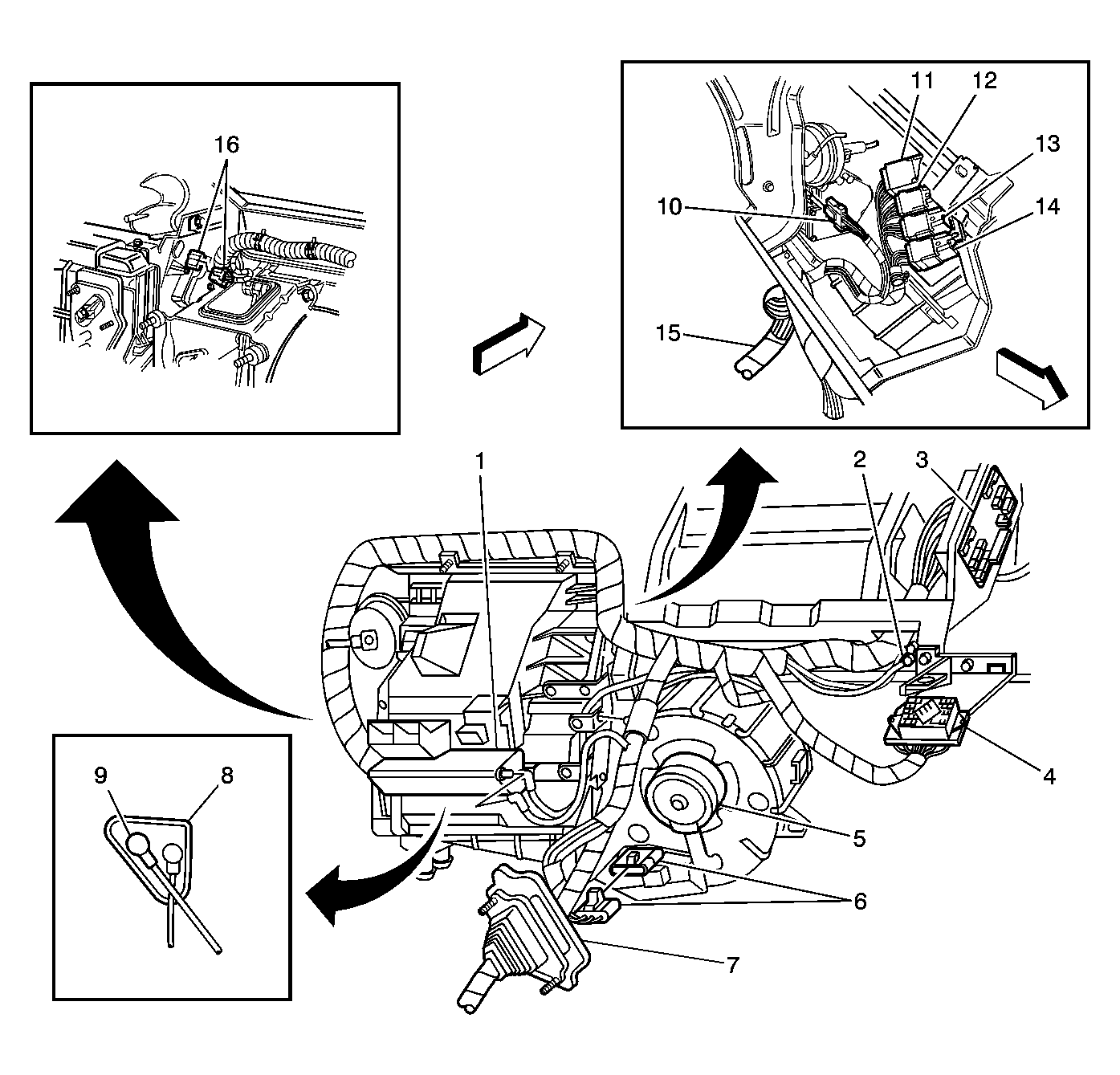

Fig 1: Behind The Right Side Of The I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Reservoir
2	G200
3	Fuse Block - I/P
4	C200
5	Blower Motor
6	Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7	P100
8	Vacuum Reservoir
9	Black Vacuum Hose
10	Air Temperature Actuator - Right
11	Automatic Headlamp Relay
12	Rear Compartment Lid Release Relay
13	Rear Window Defogger Relay
14	Retained Accessory Power (RAP) Relay
15	I/P Wiring Harness
16	Air Temperature Actuator - Left

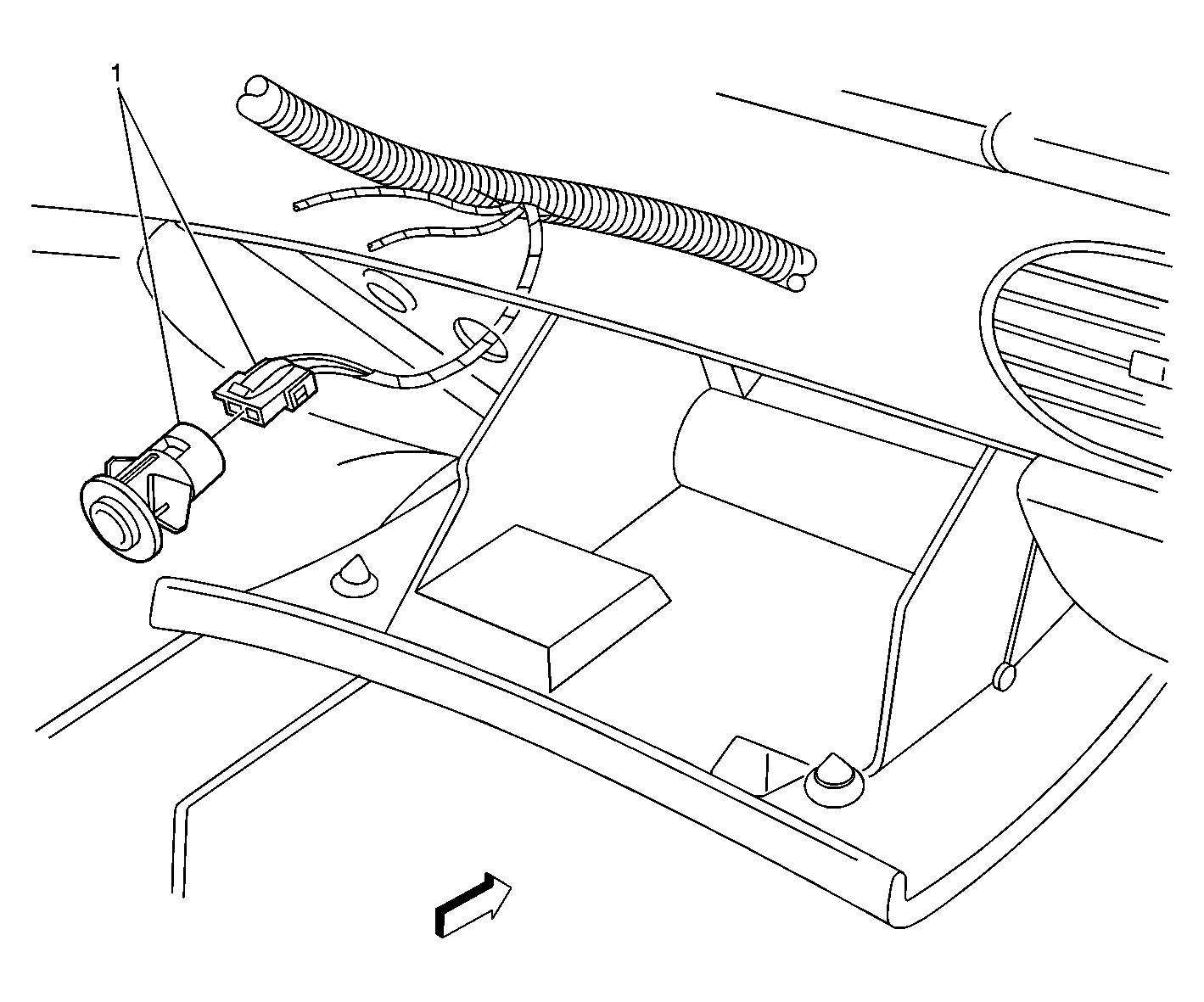

Fig 2: Inside Left Side Of Instrument Panel Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch

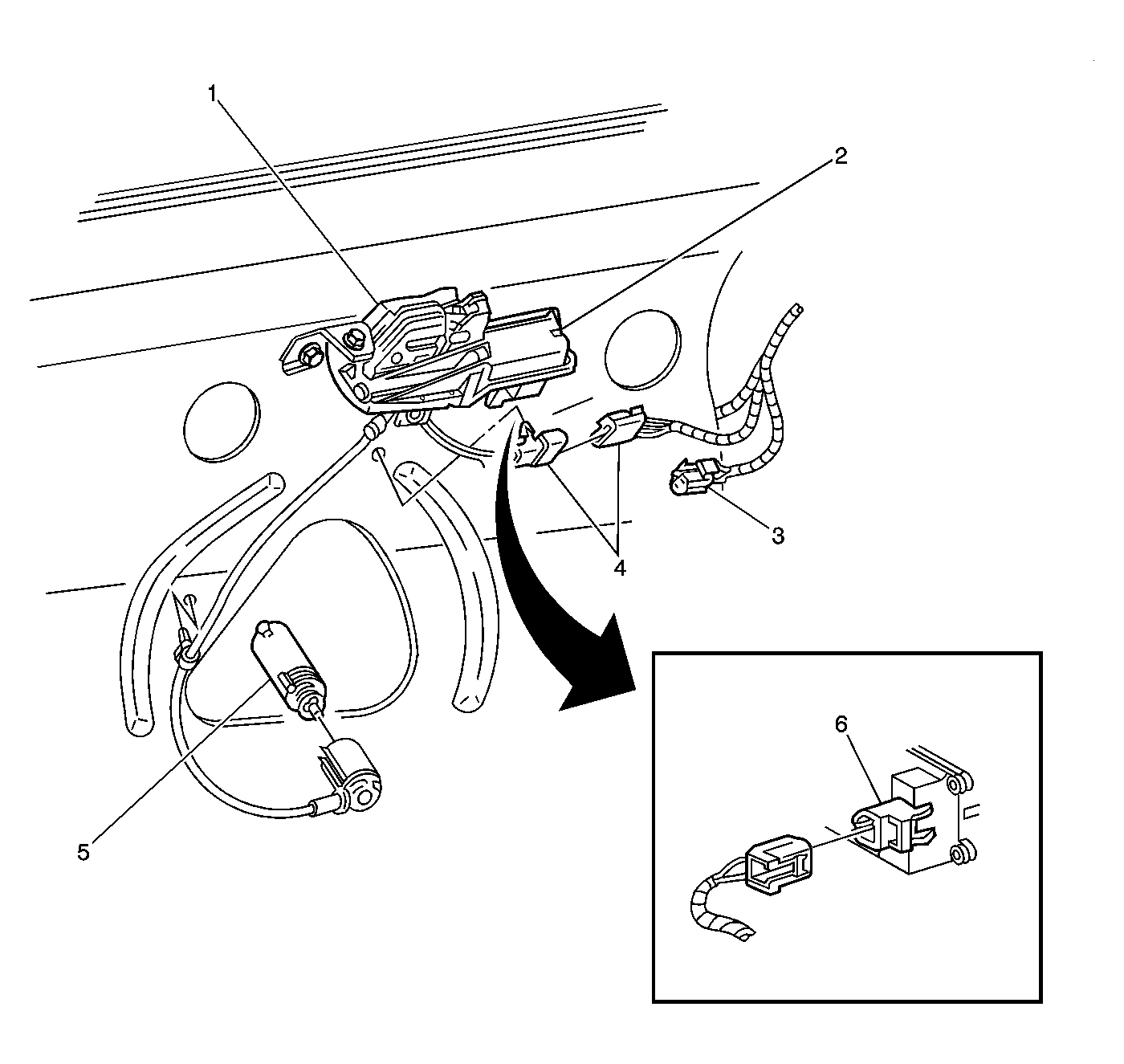

Fig 3: Rear Compartment Lid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Ajar Switch
2	Rear Compartment Lid Lock Release Actuator
3	Rear Compartment Lid Lock Release Actuator Connector
4	Rear Compartment Lid Ajar Switch Connector
5	Rear Compartment Key Cylinder
6	Rear Compartment Lid Lock Release Actuator
