Exterior Lights Schematics

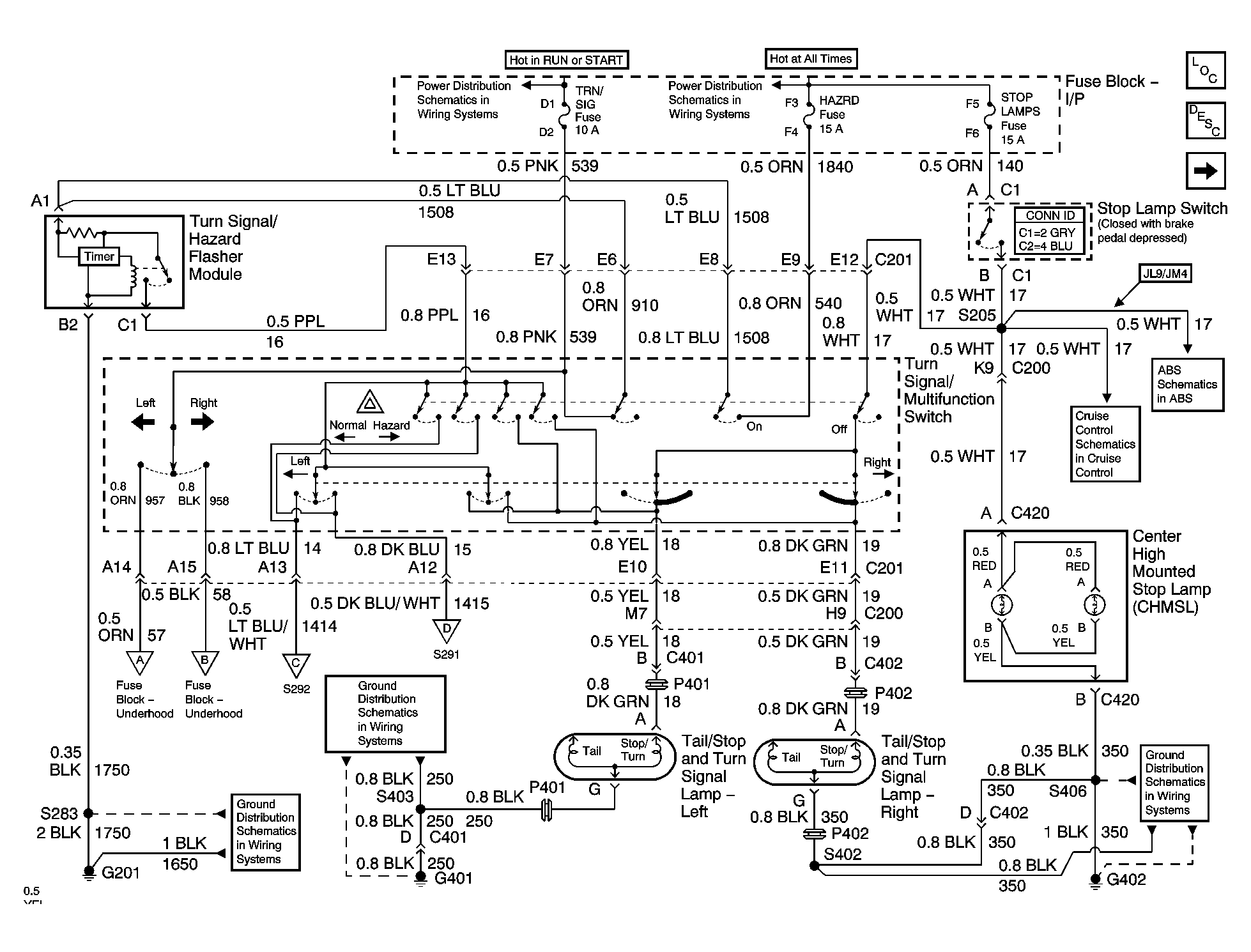

Fig 1: Stop Lamps And Rear Turn Lamps Schematic
GM1218994Courtesy of GENERAL MOTORS CORP.

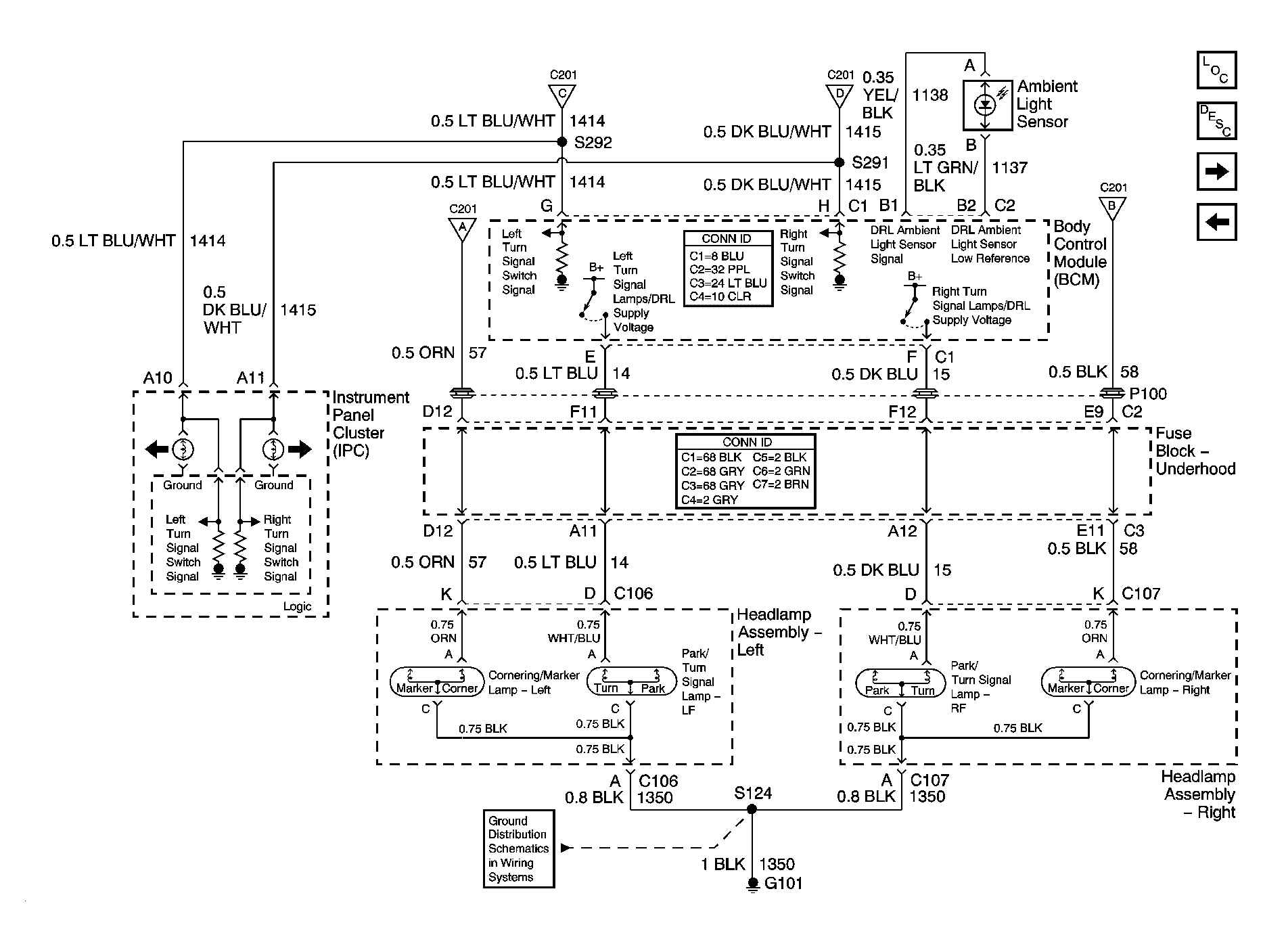

Fig 2: Front Turn Lamps, Cornering Lamps, And DRL Schematic
GM1218995Courtesy of GENERAL MOTORS CORP.

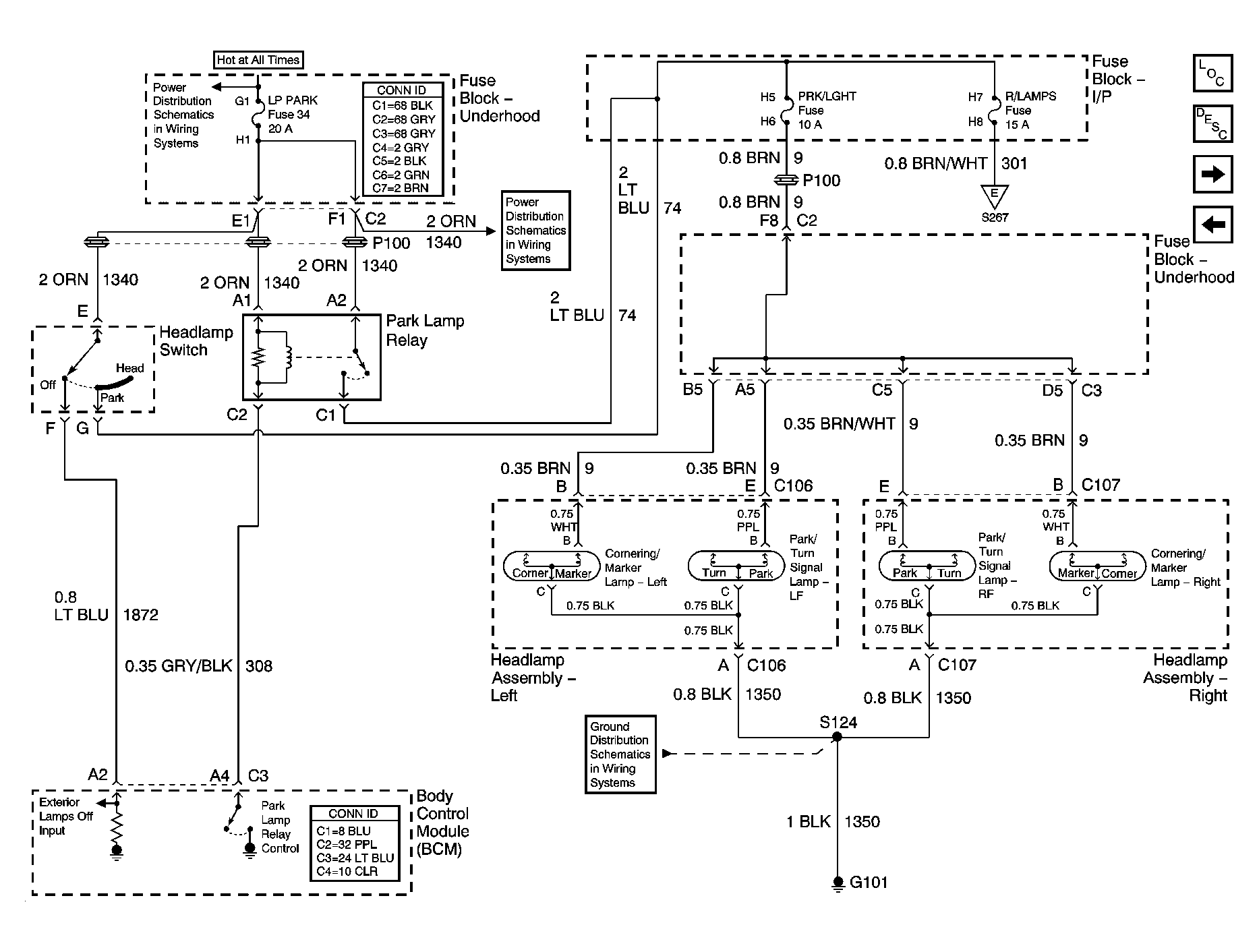

Fig 3: Front Park Lamps Schematic
GM1218998Courtesy of GENERAL MOTORS CORP.

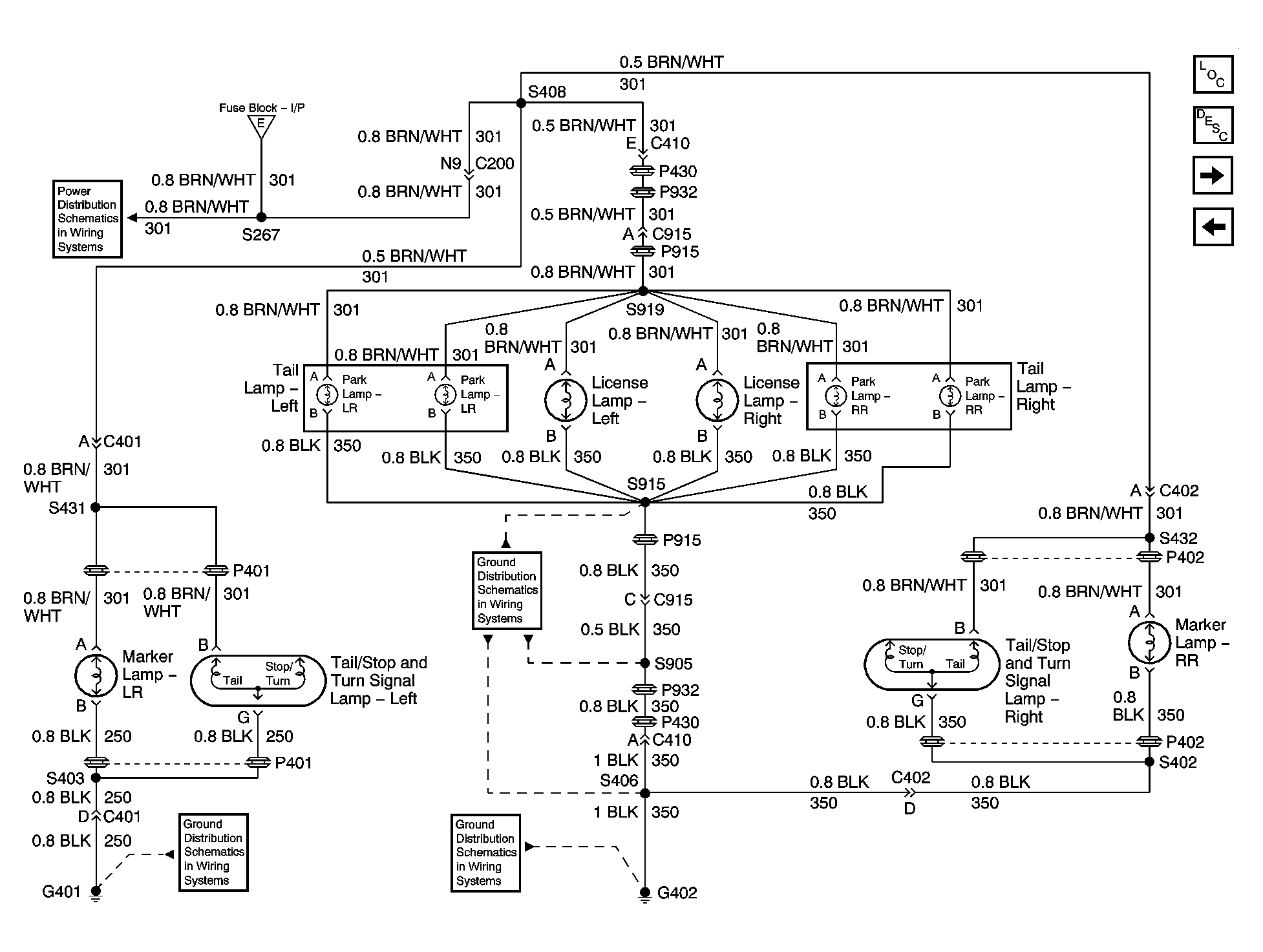

Fig 4: Rear Park Lamps And License Lamps Schematic
GM1276465Courtesy of GENERAL MOTORS CORP.

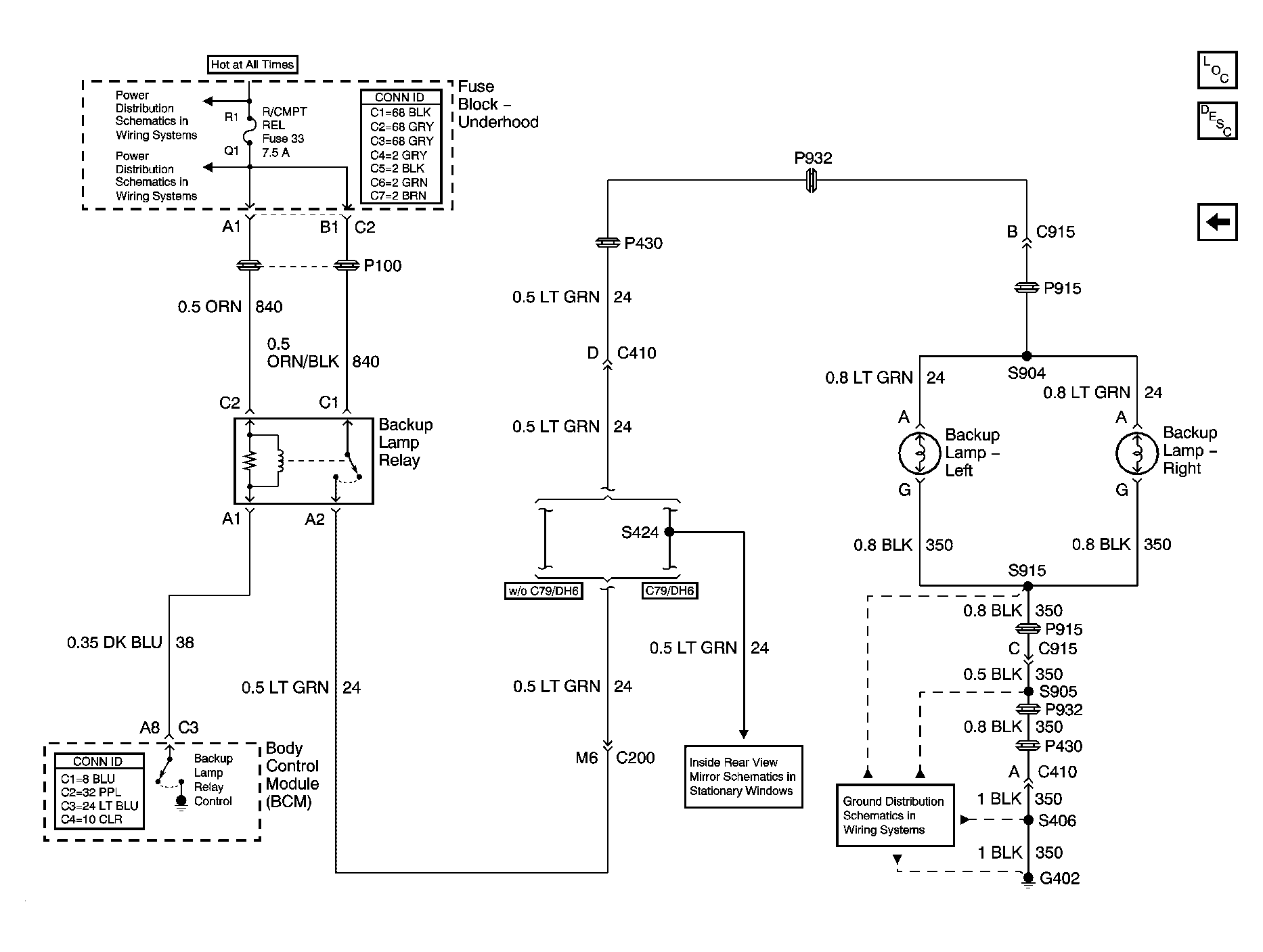

Fig 5: Back Up Lamps Schematic
GM847688Courtesy of GENERAL MOTORS CORP.
