Component Locations

COMPONENT LOCATIONS

Component Location
Body Control Module Under Instrument Panel, Left Of Steering Column
Horn Assembly Behind Right Front Fascia
Horn Fuse In Underhood Fuse Block
Horn Relay In Underhood Fuse Block
Horn Switch Integral Part Of Air Bag Module
Underhood Fuse Block Right Side Of Engine Compartment, On Strut Tower

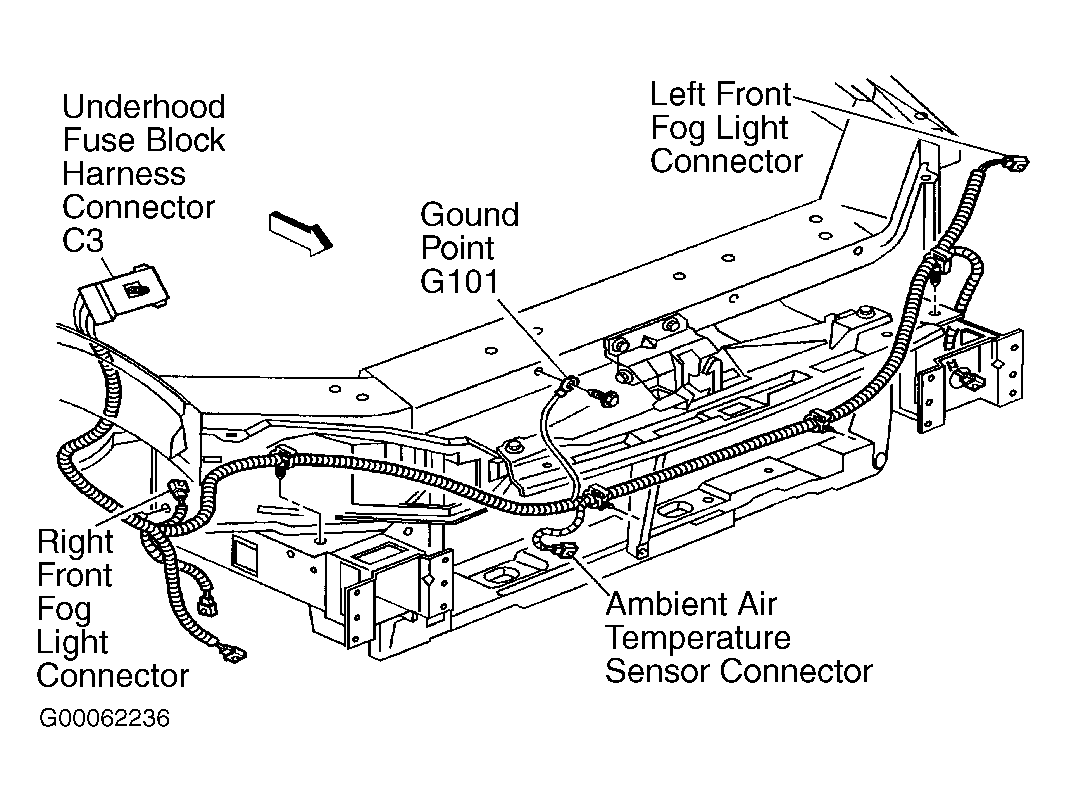

Fig 1: Locating Ground Point G101
G00062236Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Underhood Fuse Block
G00052825Courtesy of GENERAL MOTORS CORP.
