Removal Procedure

  1. Locate the relay. Refer to the BUZZERS, RELAYS & TIMERS in ELECTRICAL COMPONENT LOCATOR to locate the relay in the vehicle.
  2. Remove any fasteners which hold the relay in place.
  3. Remove any connector position assurance (CPA) devices or secondary locks.
    IMPORTANT: Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.

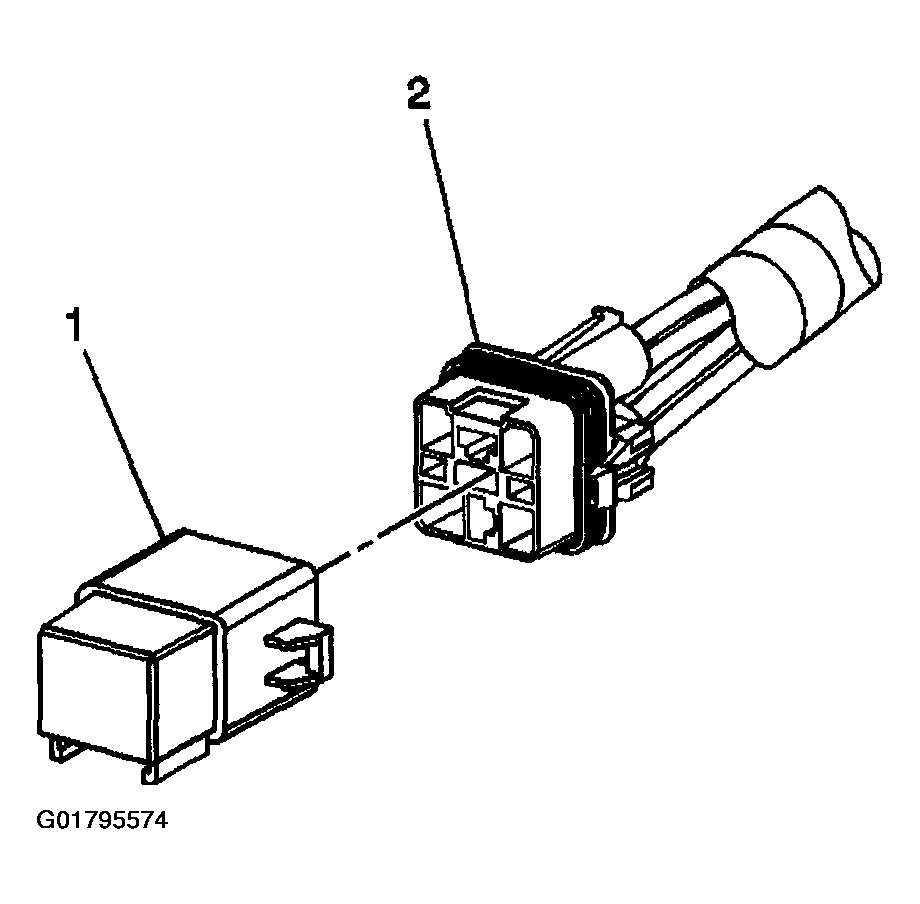

    4. Fig 1: Separating Relay From Wire Harness Connector
    G01795574Courtesy of GENERAL MOTORS CORP.
  4. Separate the relay (1) from the wire harness connector (2).
