Removal Procedure

  1. Disconnect the negative battery cable from the battery.
  2. Remove the positive battery cable fastener.
  3. Remove the positive battery cable.

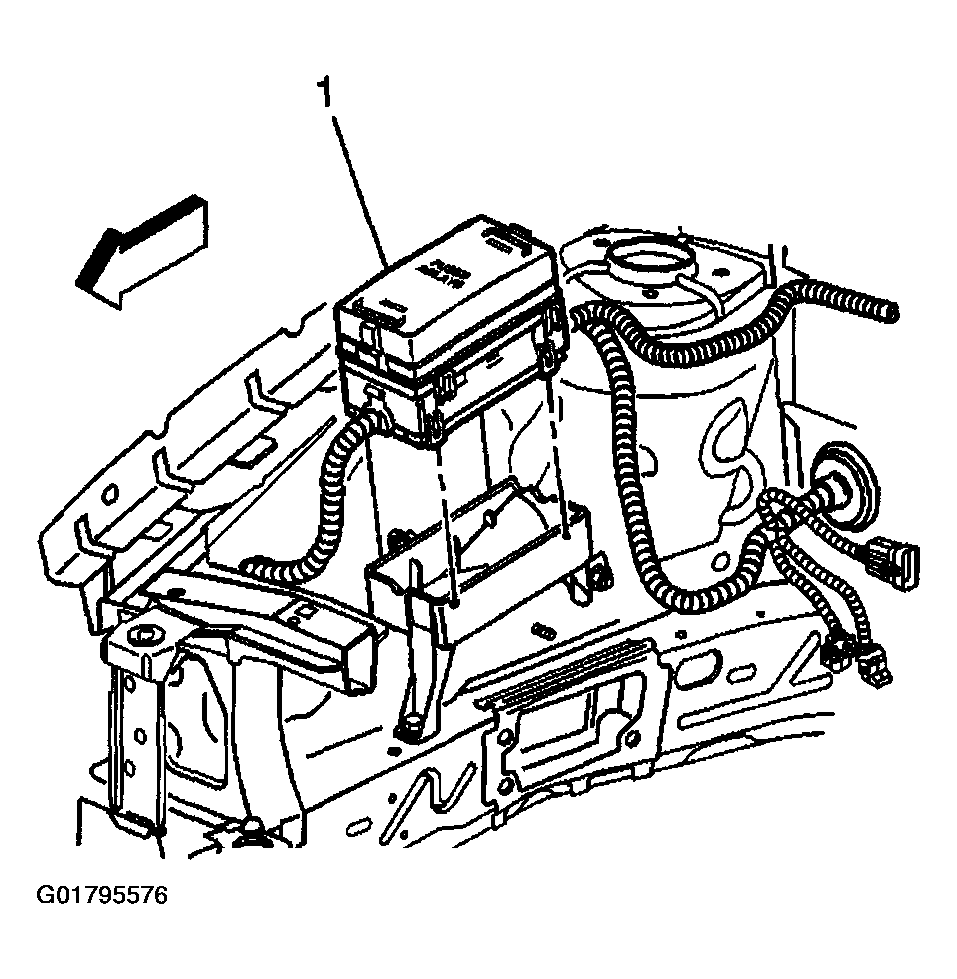

    4. Fig 1: Lifting Electrical Fuse Block Out Of Base
    G01795576Courtesy of GENERAL MOTORS CORP.
  4. Unclip the four retaining clips and lift the electrical fuse block (1) out of the base.

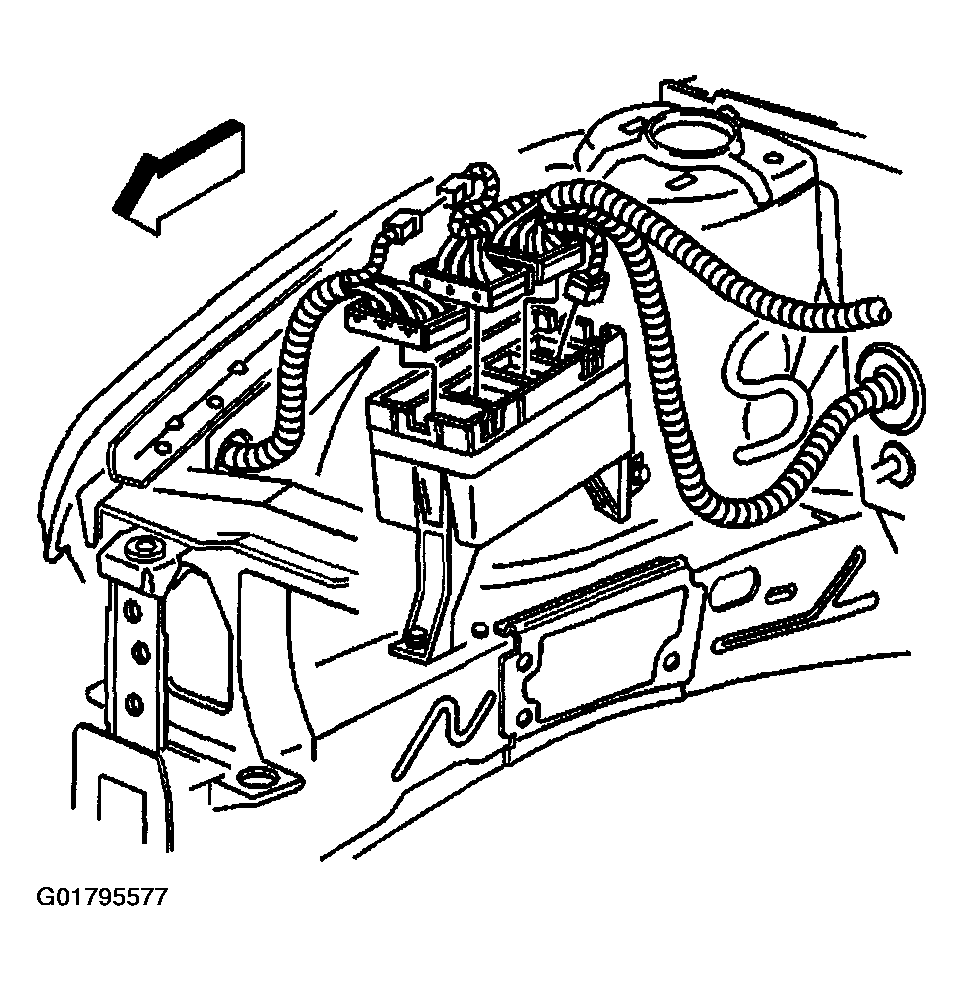

    Fig 2: Removing Electrical Connectors
    G01795577Courtesy of GENERAL MOTORS CORP.
  5. Turn the fuse block over in the base in order to remove the electrical connectors.
  6. Remove the three connector fasteners and remove all the electrical connectors from the fuse block.

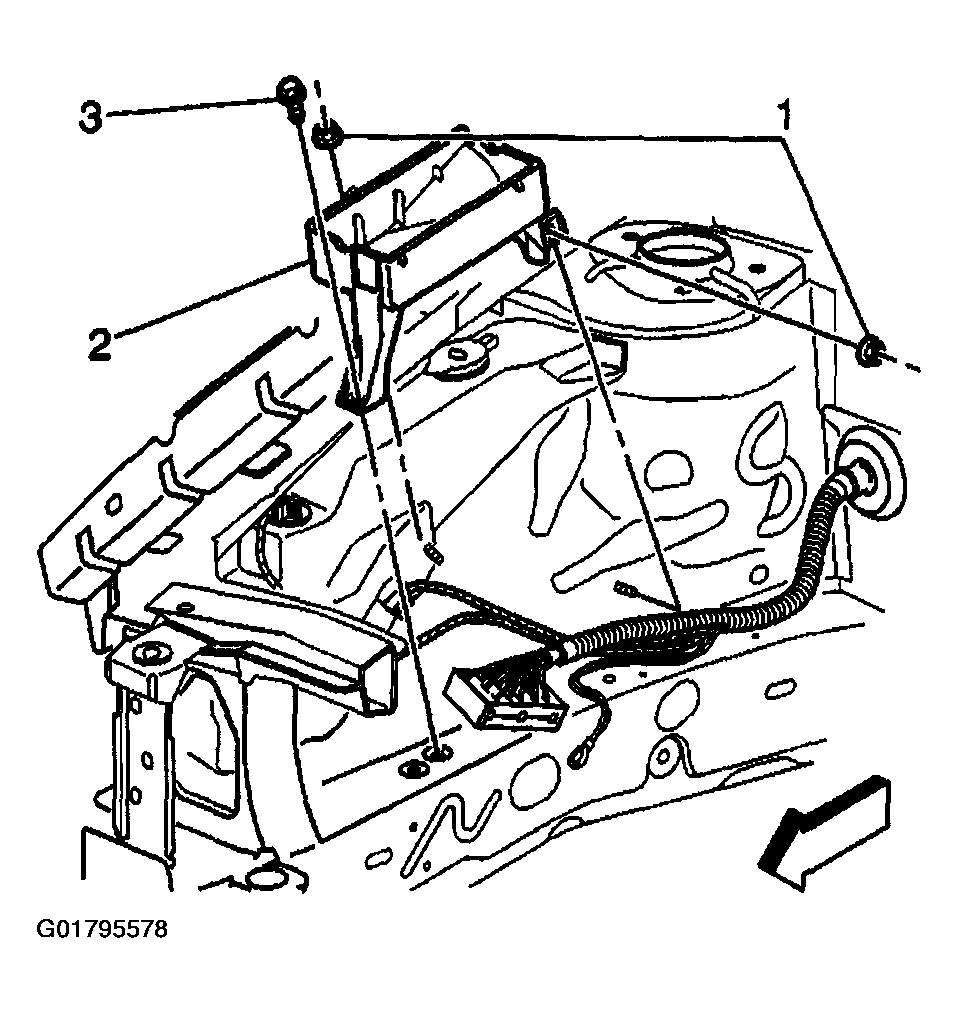

    7. Fig 3: Removing Fuse Block Base
    G01795578Courtesy of GENERAL MOTORS CORP.
  7. Remove the three fasteners (1,3) from the fuse block base (2).
  8. Remove the fuse block base (2) from the vehicle
