Installation Procedure

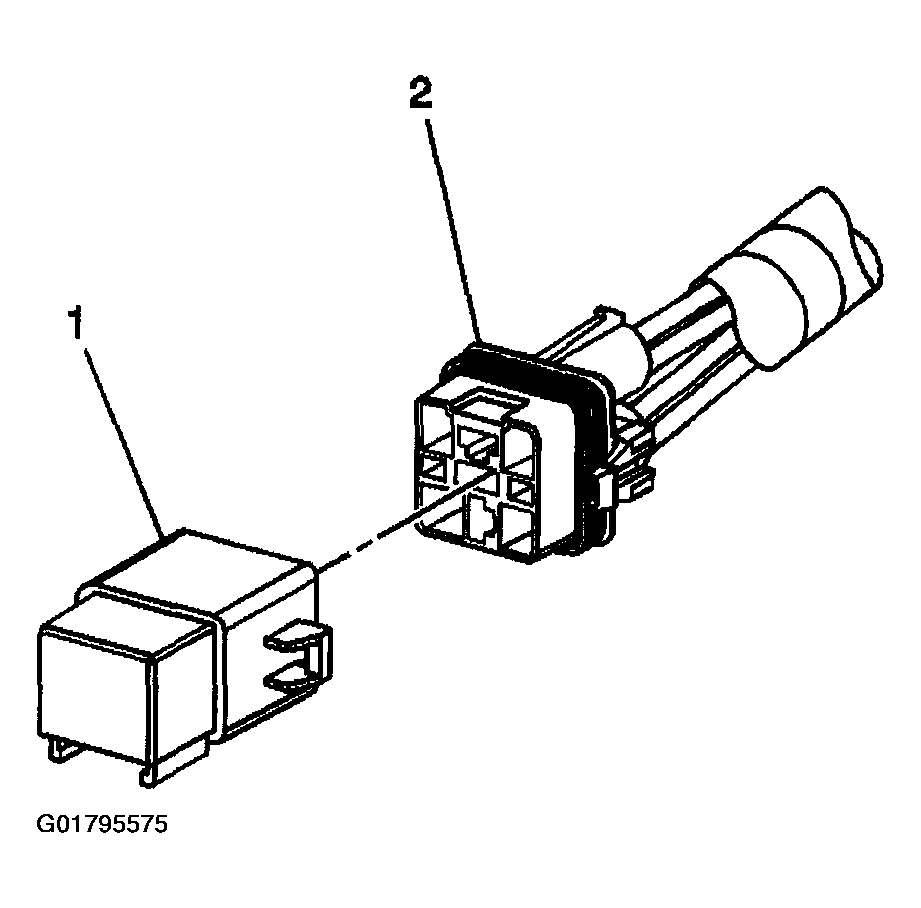

    Fig 1: Installing Relay To Wire Harness Connector
    G01795575Courtesy of GENERAL MOTORS CORP.
  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.
