Electrical Symbols

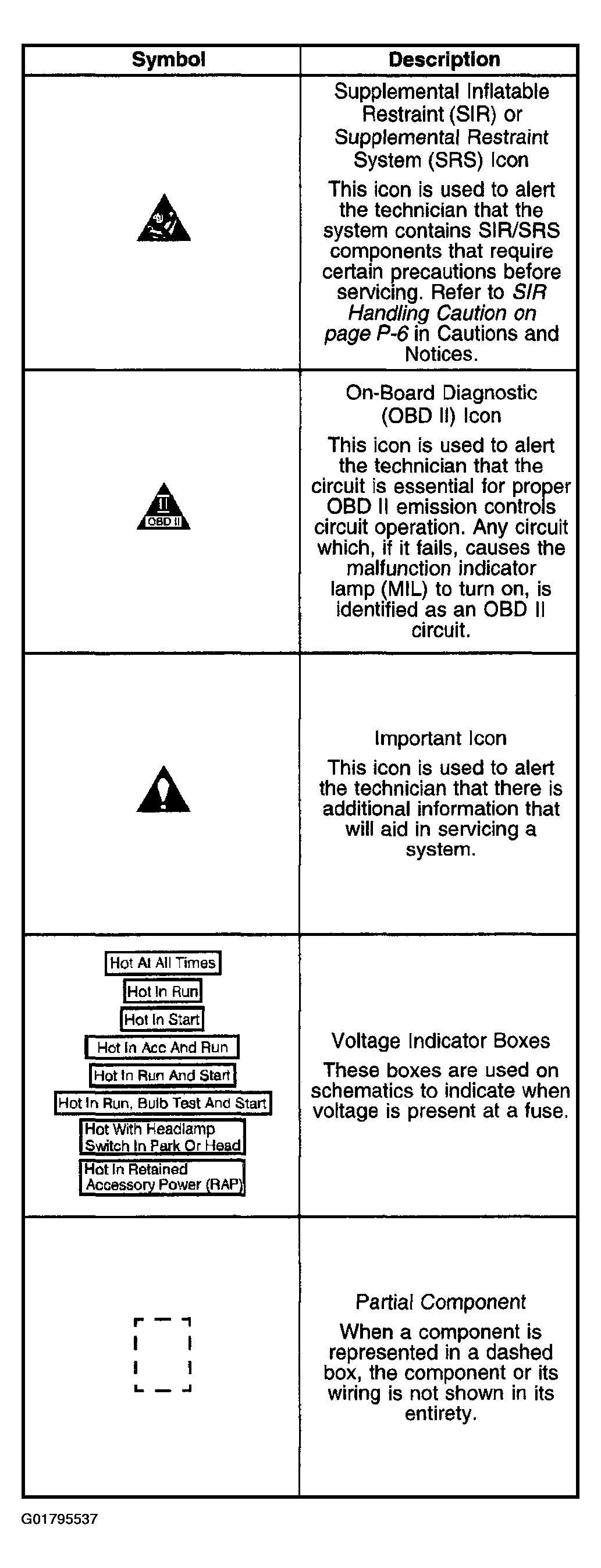

Fig 1: Electrical Symbols (1 Of 8)

G01795537

Courtesy of GENERAL MOTORS CORP.

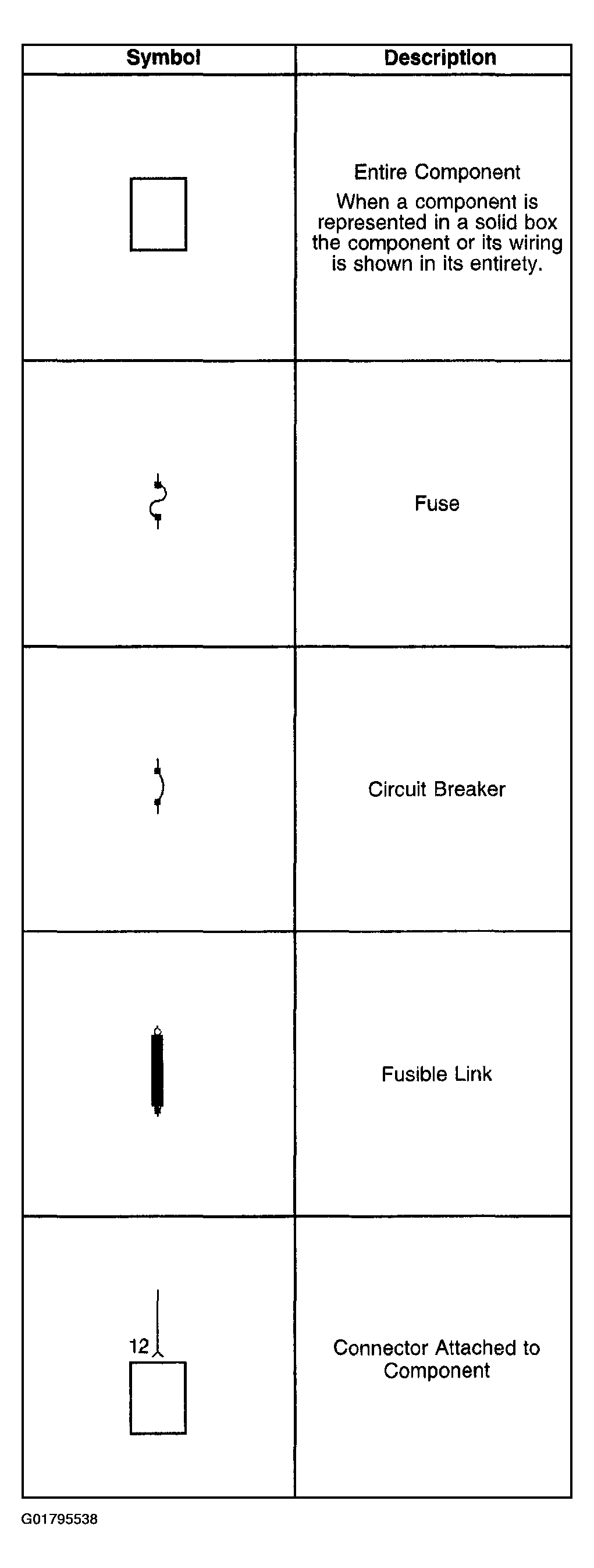

Fig 2: Electrical Symbols (2 Of 8)

G01795538

Courtesy of GENERAL MOTORS CORP.

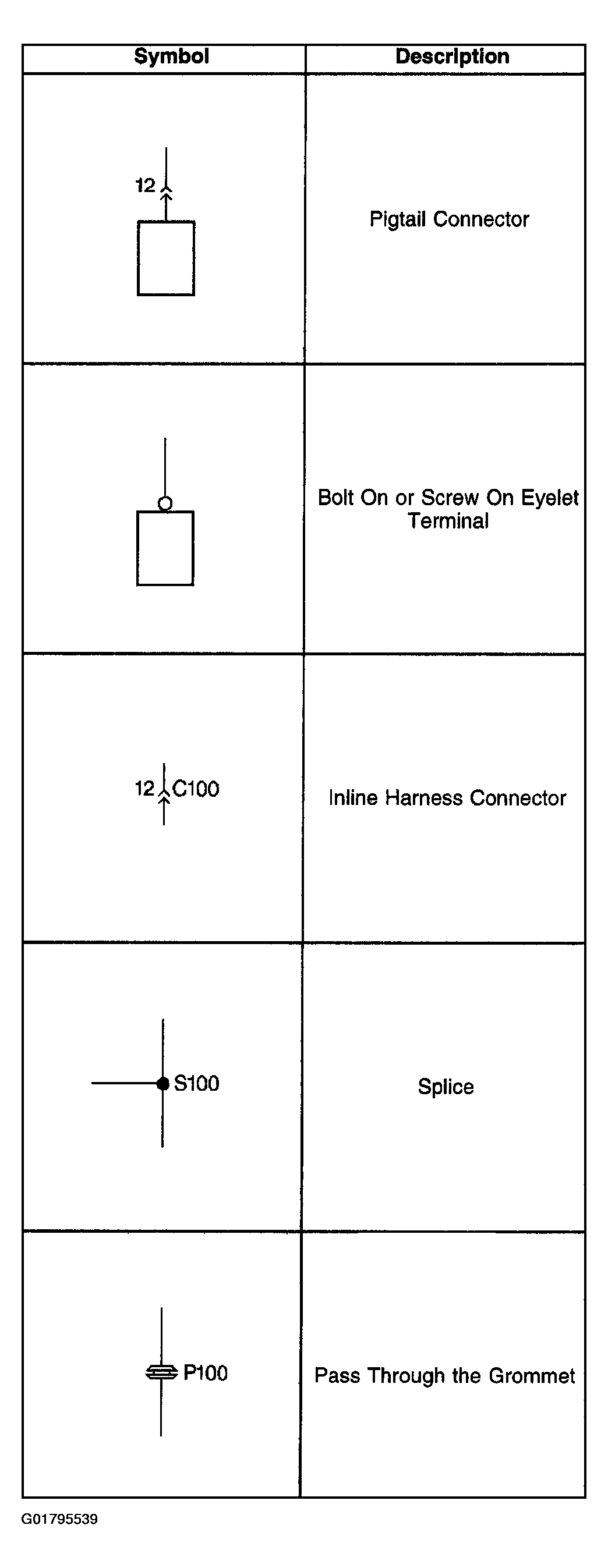

Fig 3: Electrical Symbols (3 Of 8)

G01795539

Courtesy of GENERAL MOTORS CORP.

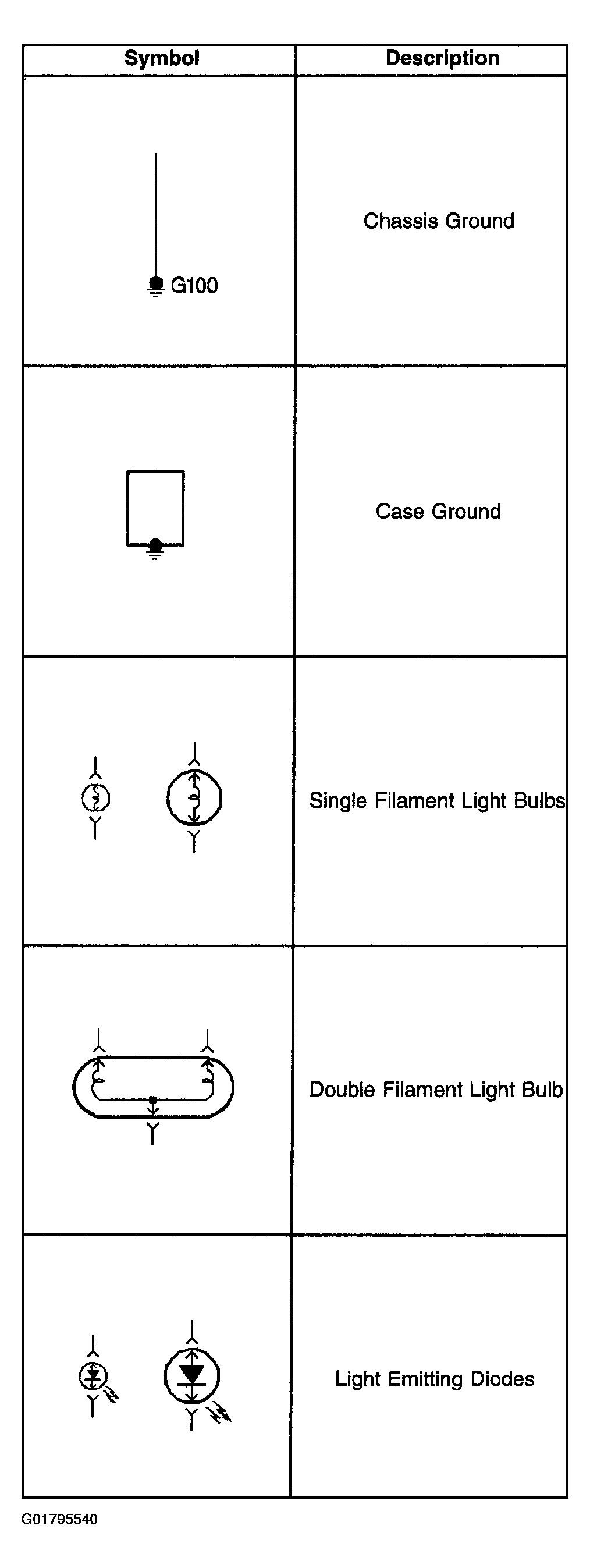

Fig 4: Electrical Symbols (4 Of 8)

G01795540

Courtesy of GENERAL MOTORS CORP.

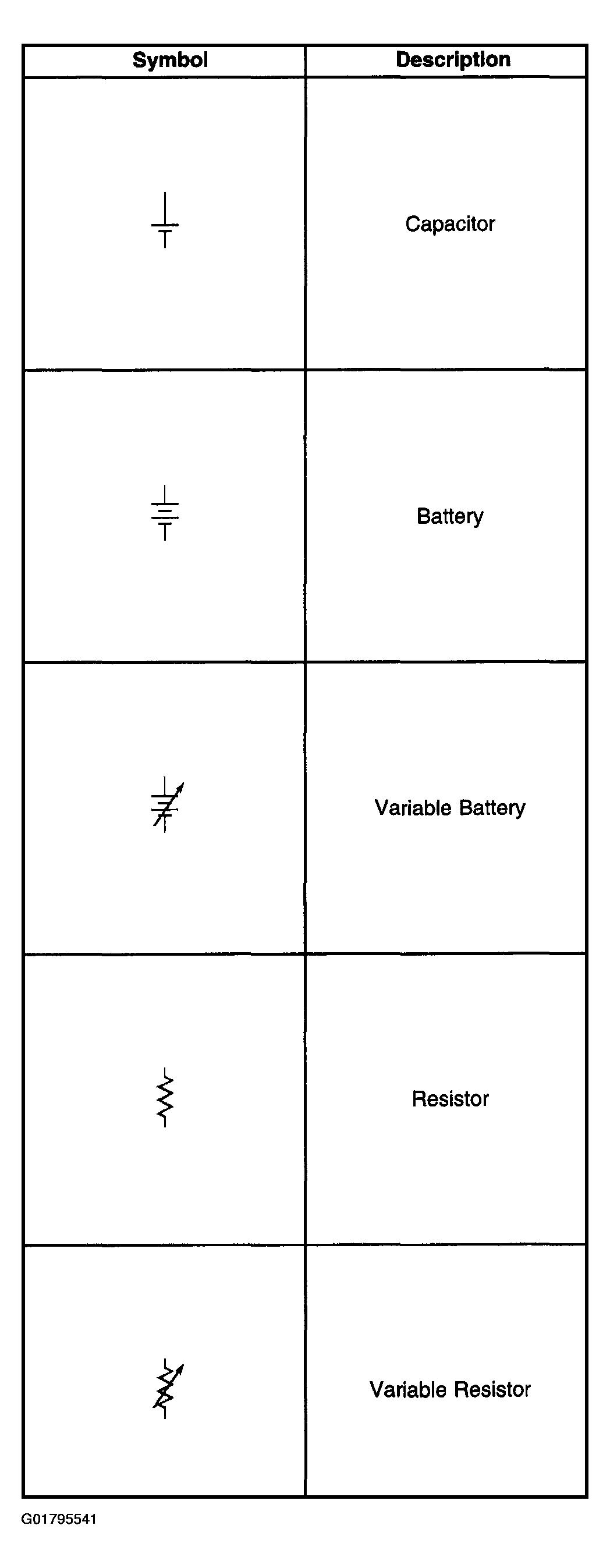

Fig 5: Electrical Symbols (5 Of 8)

G01795541

Courtesy of GENERAL MOTORS CORP.

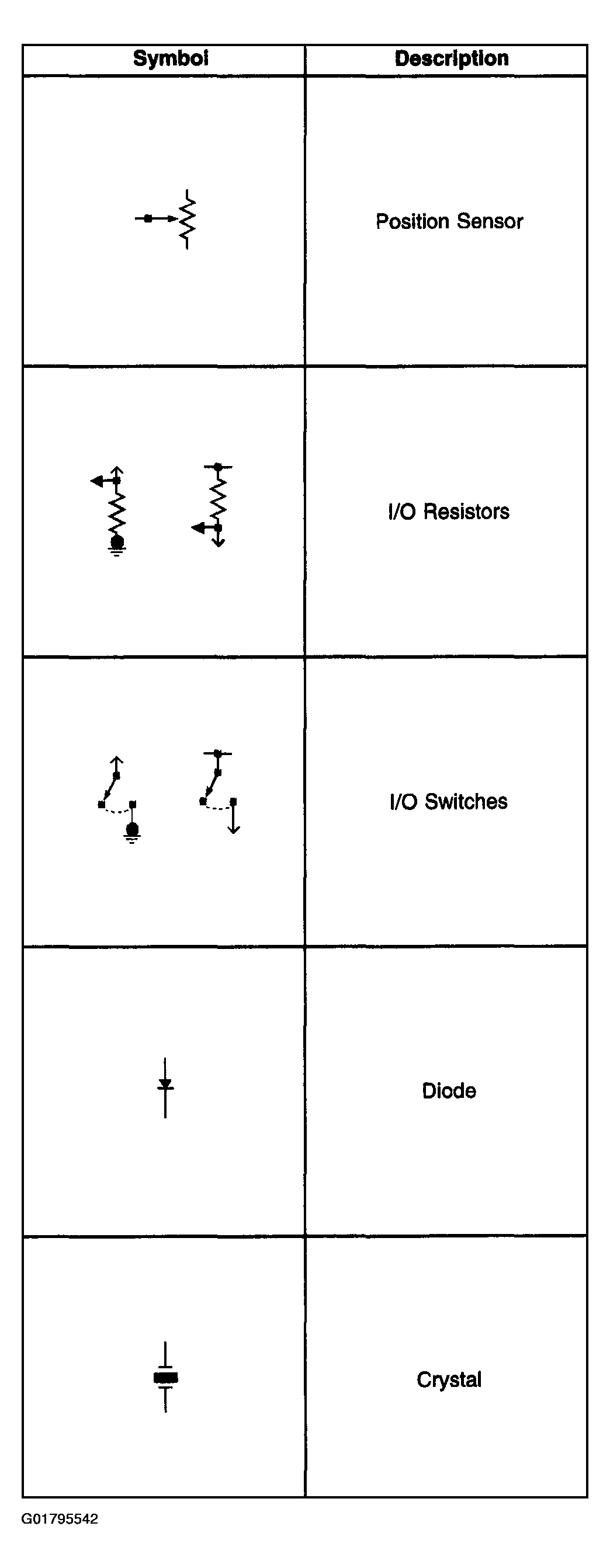

Fig 6: Electrical Symbols (6 Of 8)

G01795542

Courtesy of GENERAL MOTORS CORP.

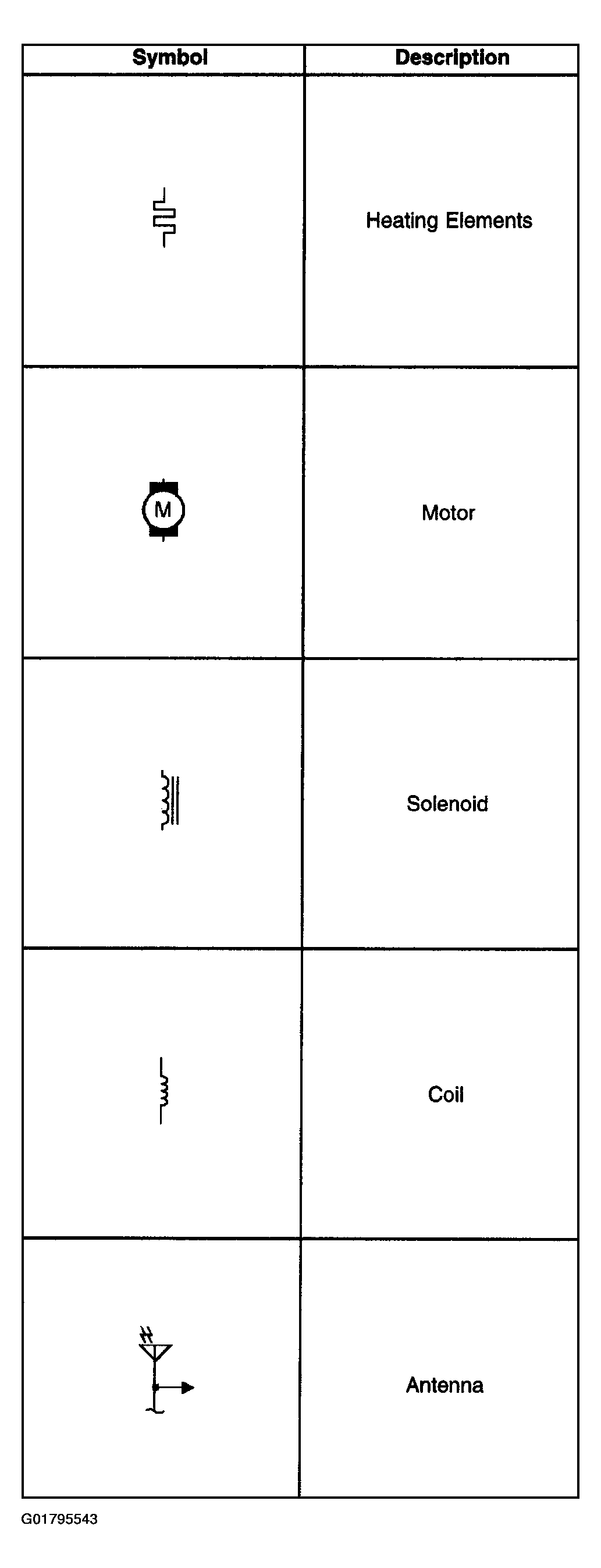

Fig 7: Electrical Symbols (7 Of 8)

G01795543

Courtesy of GENERAL MOTORS CORP.

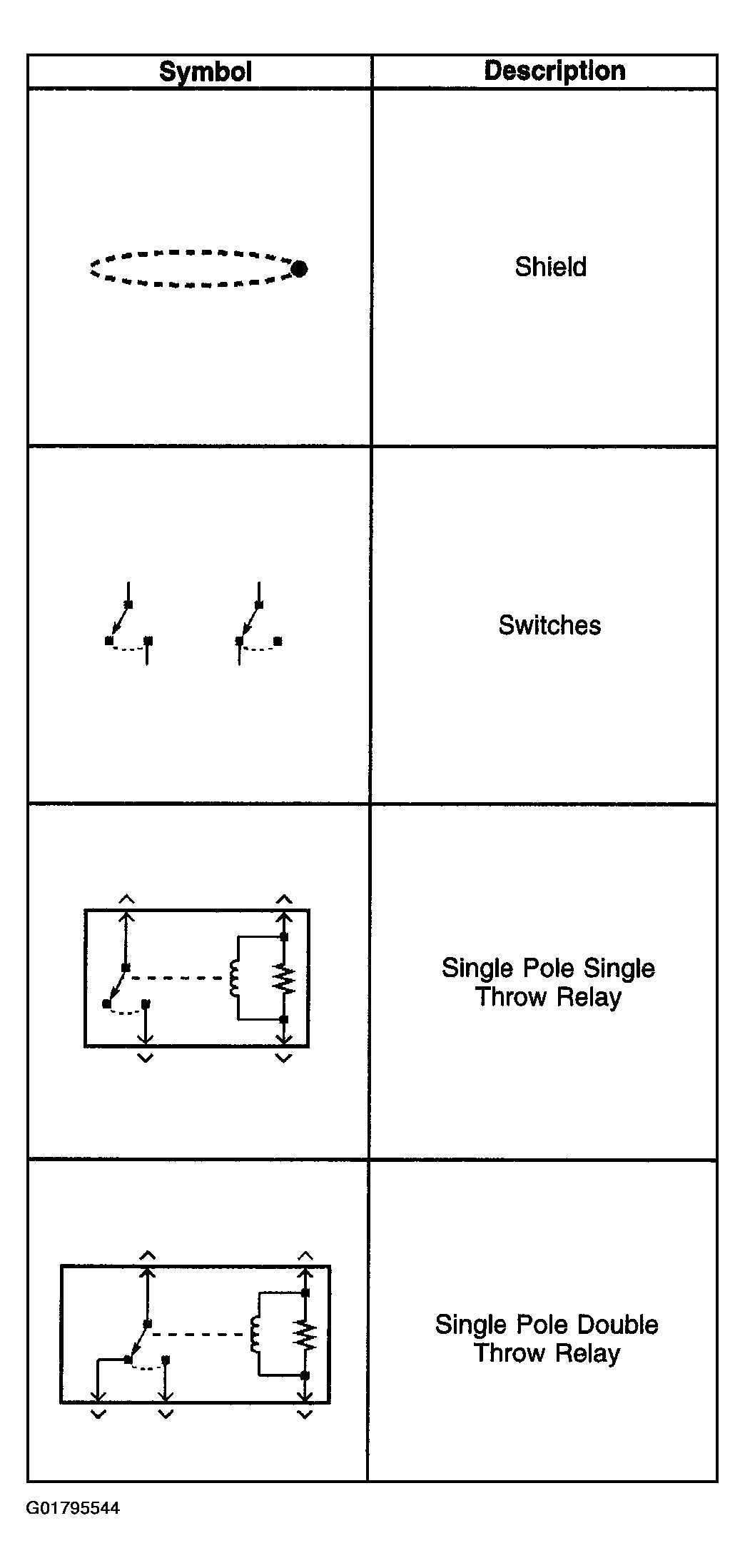

Fig 8: Electrical Symbols (8 Of 8)

G01795544

Courtesy of GENERAL MOTORS CORP.
