Instrument Cluster Wiring Schematics: Indicators

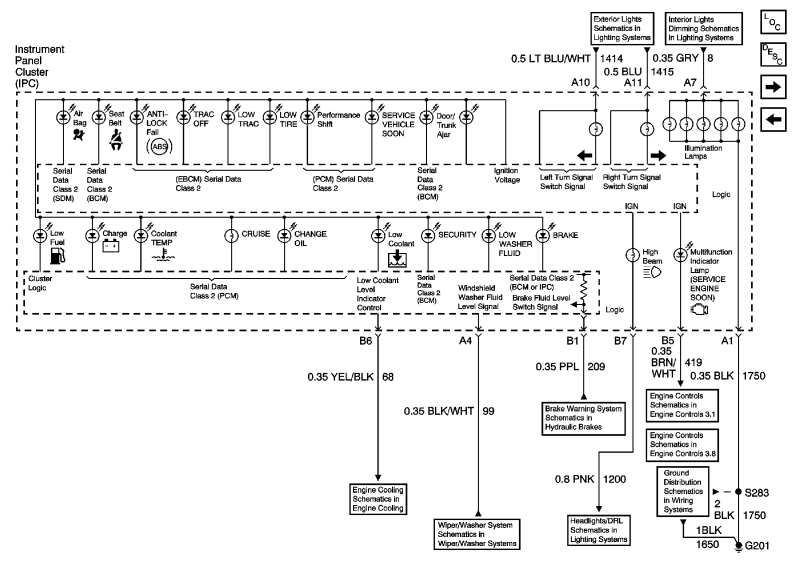

Fig 1: Indicators Wiring Diagram

GM786903

Courtesy of GENERAL MOTORS COMPANY
