Home >> Buick >> 2001 >> Century Limited >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Instrument Panel System Displays, Gauges And Console >> Diagnostic Information and Procedures >> Chime Always On

Chime Always On

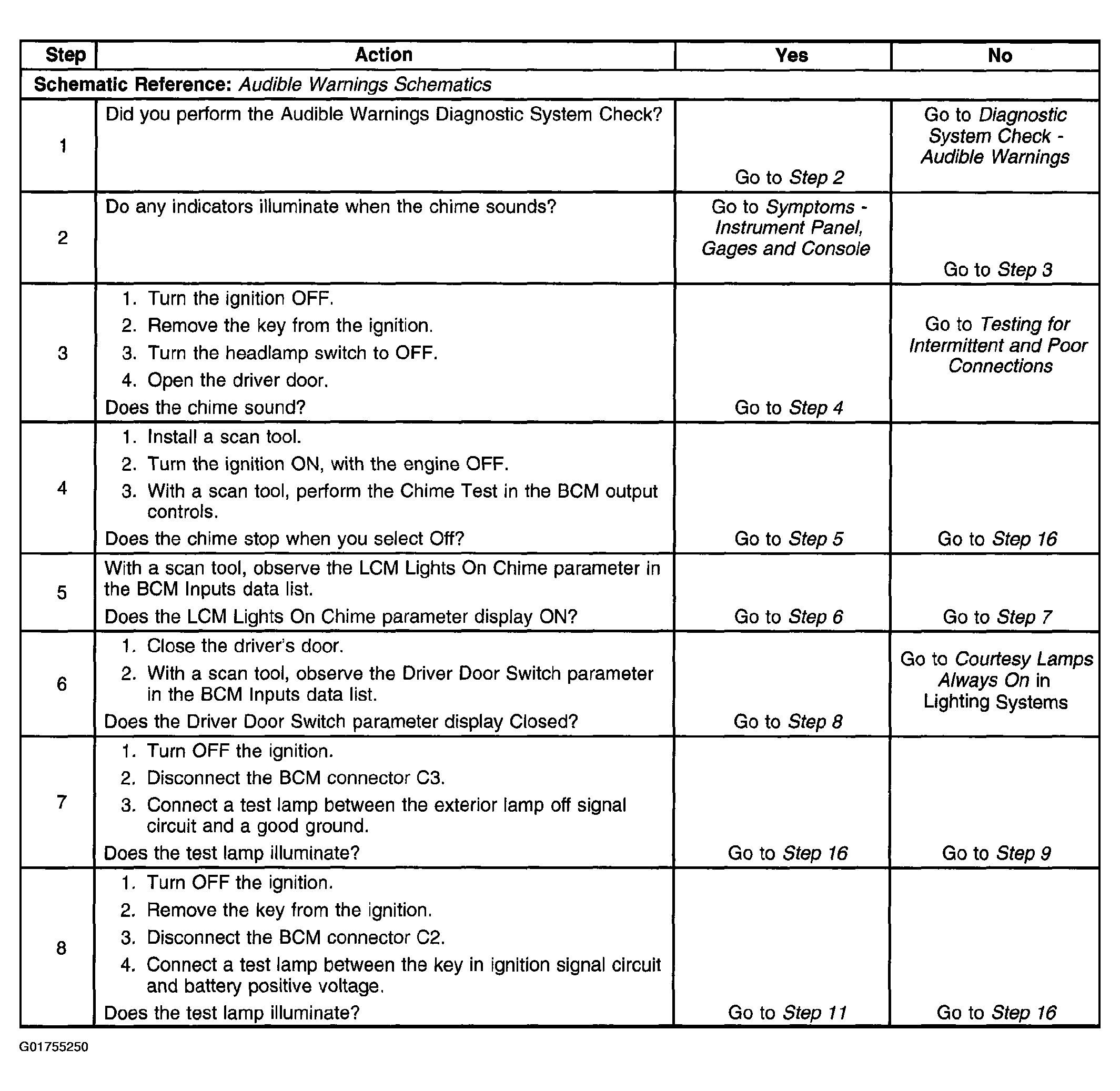

Fig 1: Chime Always On Diagnostic Table (Steps 1-8)

G01755250

Courtesy of GENERAL MOTORS CORP.

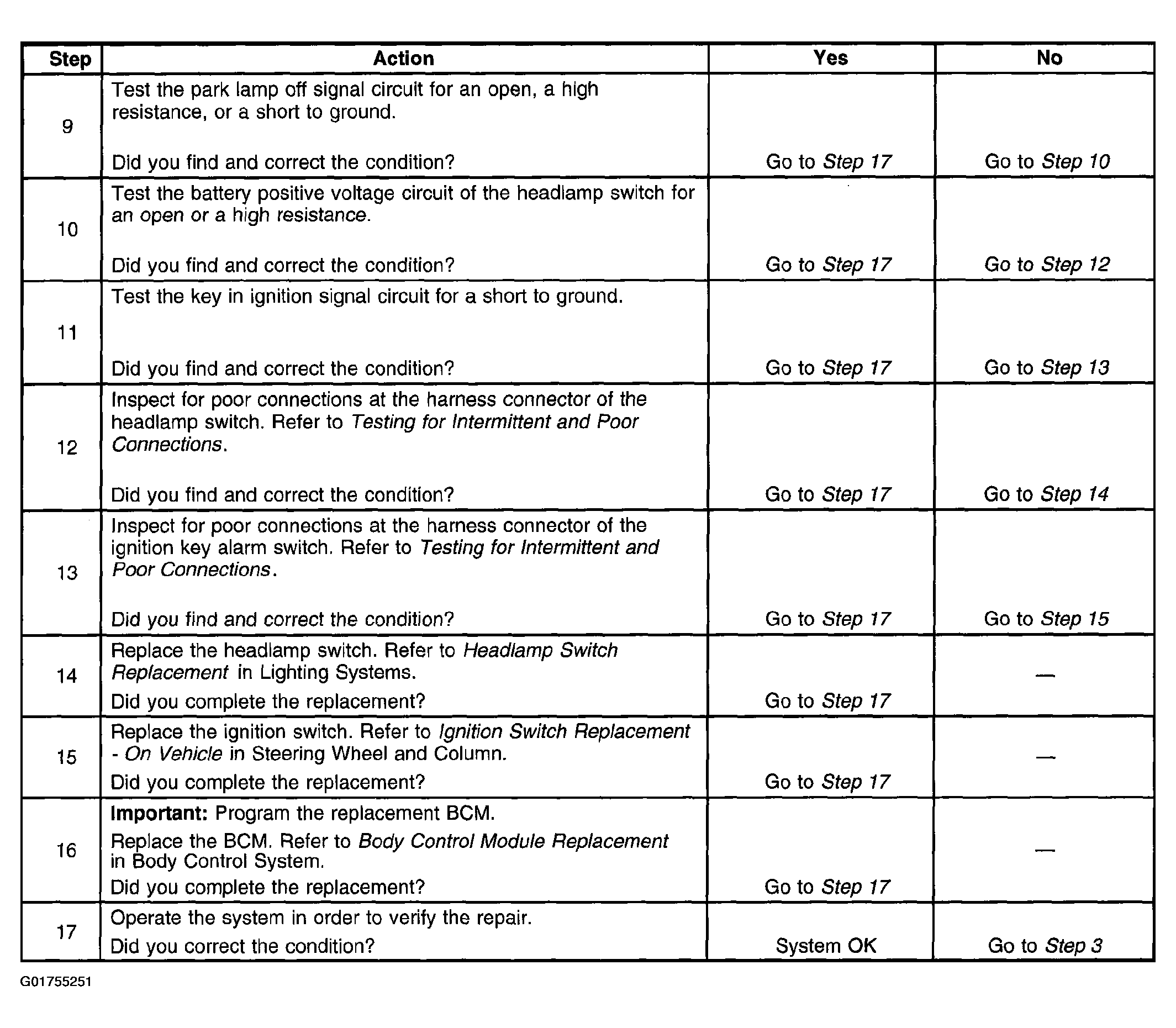

Fig 2: Chime Always On Diagnostic Table (Steps 9-17)

G01755251

Courtesy of GENERAL MOTORS CORP.
