Removal (Century, Grand Prix, Malibu 3.1L)

NOTE: Delphi CS130D (K68) 105-amp generator is serviced as a complete unit only.

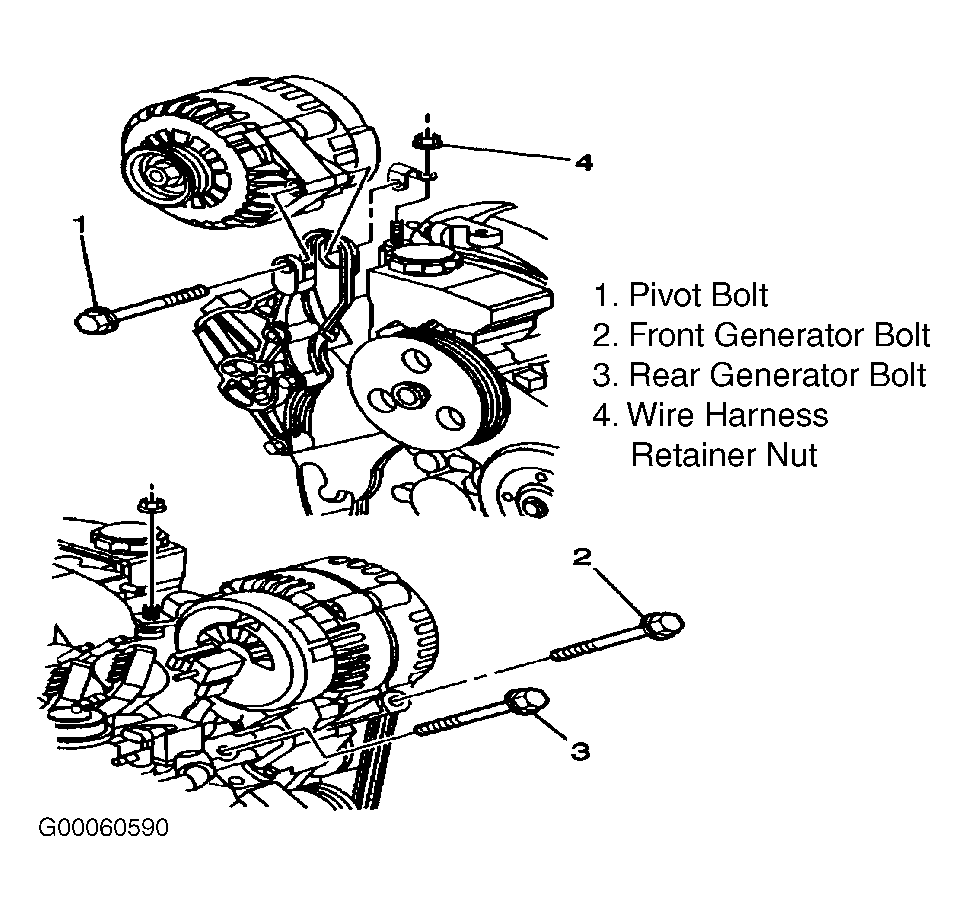

Fig 1: Generator Mounting Bolts (3.1L)

Courtesy of GENERAL MOTORS CORP.

1. Disconnect negative battery cable.
2. Remove the engine compartment cross vehicle brace, if necessary. Remove drive belt from generator.
3. Place coolant recovery reservoir aside for access, as necessary.
4. Disconnect electrical connector from generator. Remove power steering line clip (Malibu).
5. Remove bolts (1, 2, 3) from generator.
6. Remove protective boot from generator output BAT terminal.
7. Remove generator output BAT terminal nut and remove positive battery lead from generator.
8. Remove generator.
