MULTIFUNCTION Switch: Installation

Using a small, flat-blade screwdriver, compress electrical contact on multifunction switch and move switch into position. Ensure electrical contact rests on canceling cam. Tighten turn signal and multifunction switch screws to specification. See TORQUE SPECIFICATIONS  . To complete installation, reverse removal procedure.

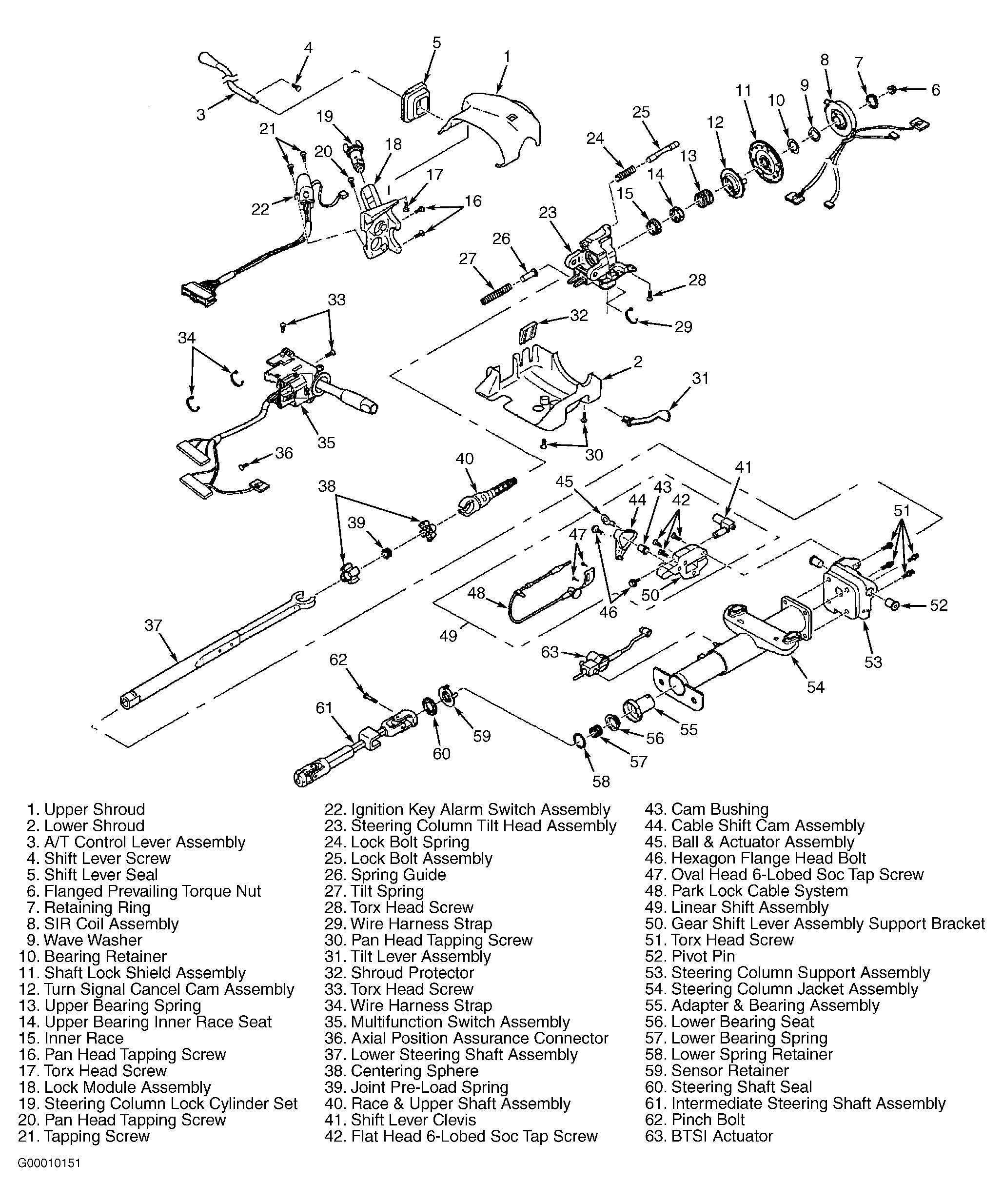

Fig 1: Exploded View Of Steering Column Assembly (Column Shift)

Courtesy of GENERAL MOTORS CORP.

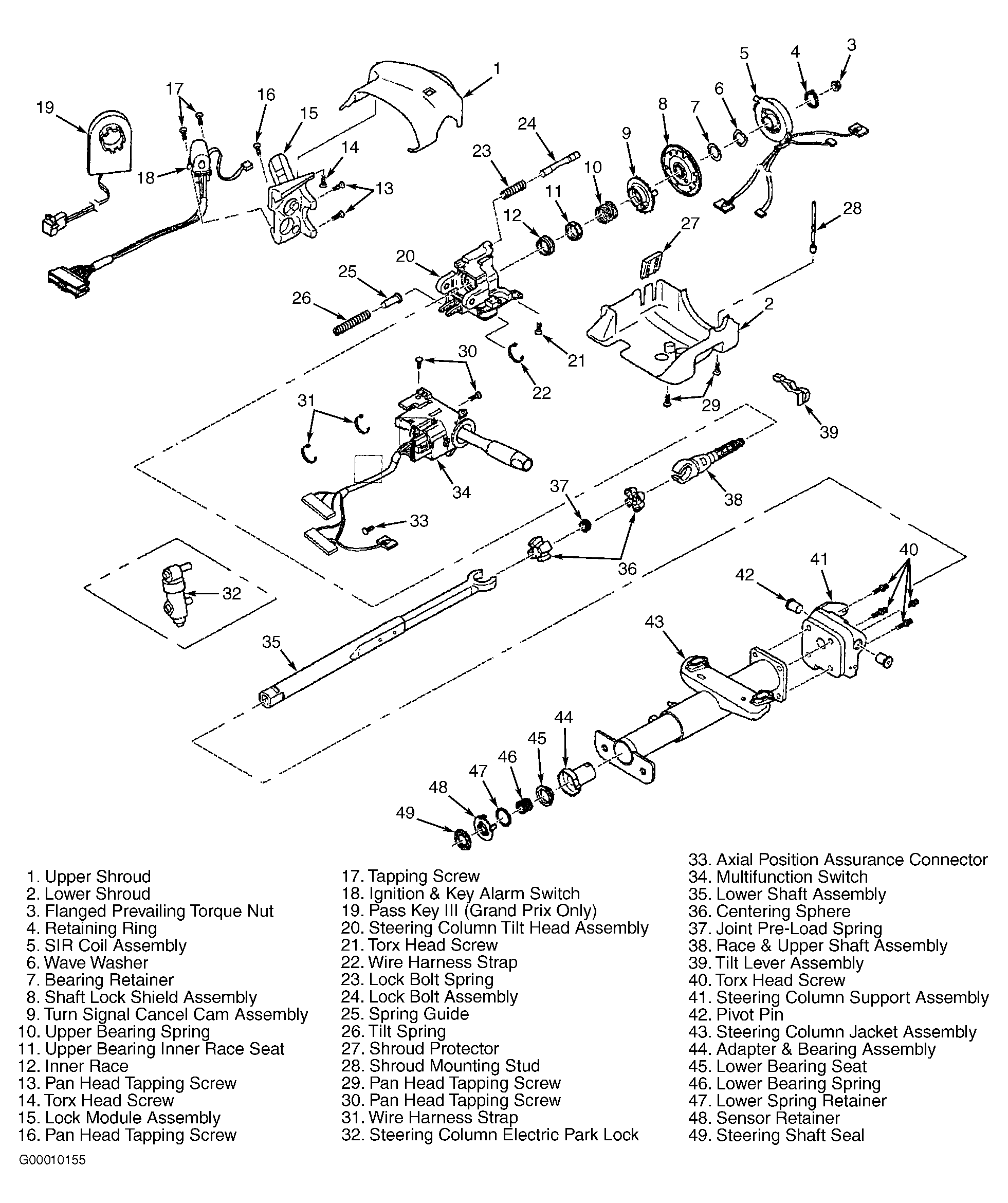

Fig 2: Exploded View Of Steering Column Assembly (Floor Shift)

Courtesy of GENERAL MOTORS CORP.
