Radio, Shift Lever, Ashtray, Traction Control, and Fog Lamp Switches

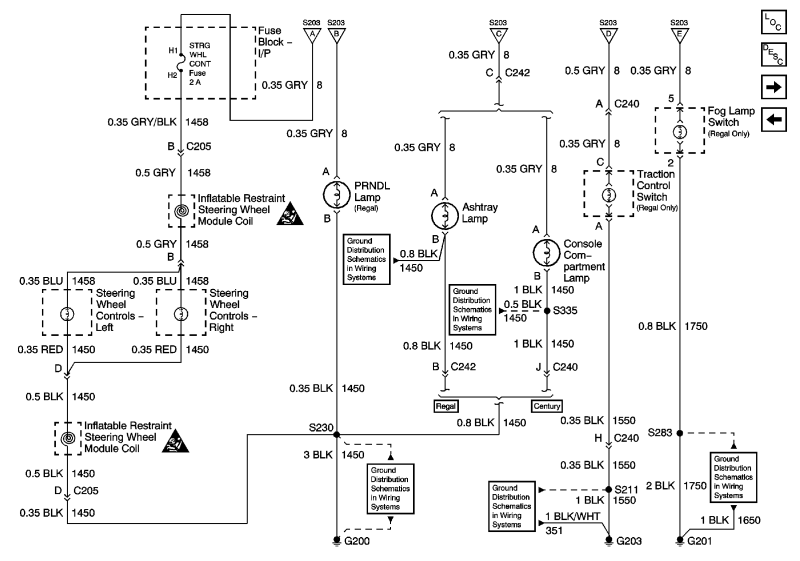

Fig 1: Radio, Shift Lever, Ashtray, Traction Control, and Fog Lamp Switches Wiring Schematic

GM706467

Courtesy of GENERAL MOTORS COMPANY
