Headlamp Relay, Ambient Light Sensor, and Park Brake Switch

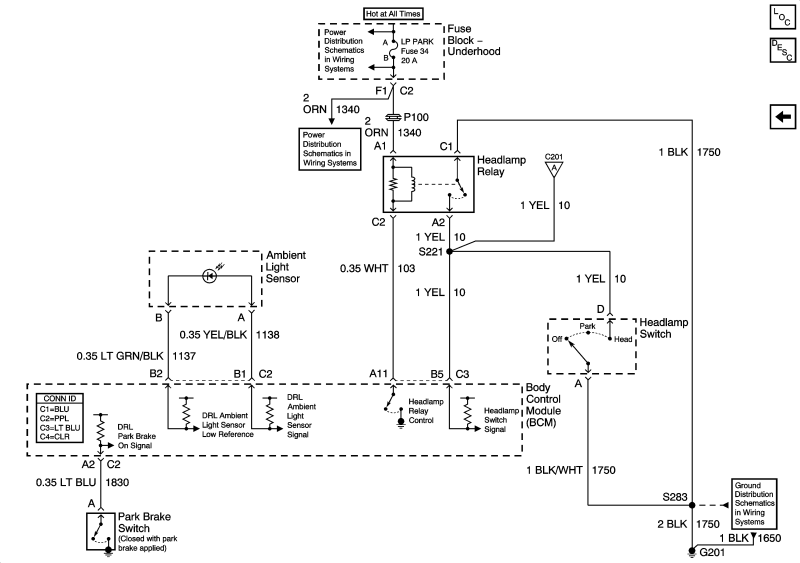

Fig 1: Headlamp Relay, Ambient Light Sensor, and Park Brake Switch Wiring Schematic

GM706404

Courtesy of GENERAL MOTORS COMPANY
