Back Up Lights - Century

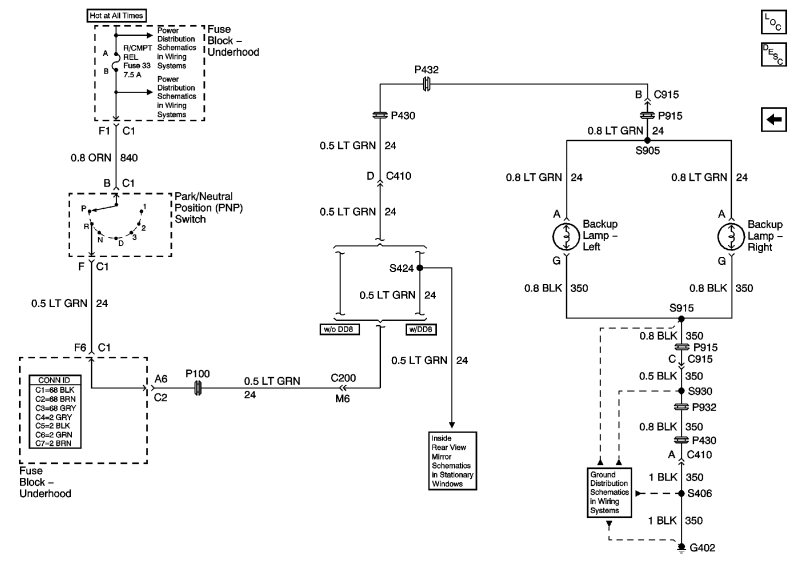

Fig 1: Back Up Lights - Century Wiring Schematic

GM706454

Courtesy of GENERAL MOTORS COMPANY
