Installation Procedure

  1. Install the defrost distribution ducts to the cross vehicle beam.
    2. Fig 1: Identifying I/P Carrier
    GM482600Courtesy of GENERAL MOTORS COMPANY
  2. Install the cross vehicle beam to the vehicle
    3. Fig 2: View Of Bolts/Screws For IP Carrier And Cross Vehicle Beam To Hinge Pillar
    GM482588Courtesy of GENERAL MOTORS COMPANY
  3. Install the RH cross vehicle beam to hinge pillar bolts finger tight
    4. Fig 3: Identifying I/P Carrier To The Left Hinge Pillar Bolts
    GM482587Courtesy of GENERAL MOTORS COMPANY
  4. Install the LH cross vehicle beam to hinge pillar bolts finger tight. Tighten Tighten the cross vehicle beam at hinge pillar bolts to 20 N.m (15 lb ft).
  5. Install the bolts to the HVAC module upper support brackets. Tighten Tighten the upper HVAC support bracket bolts to 10 N.m (89 lb in).

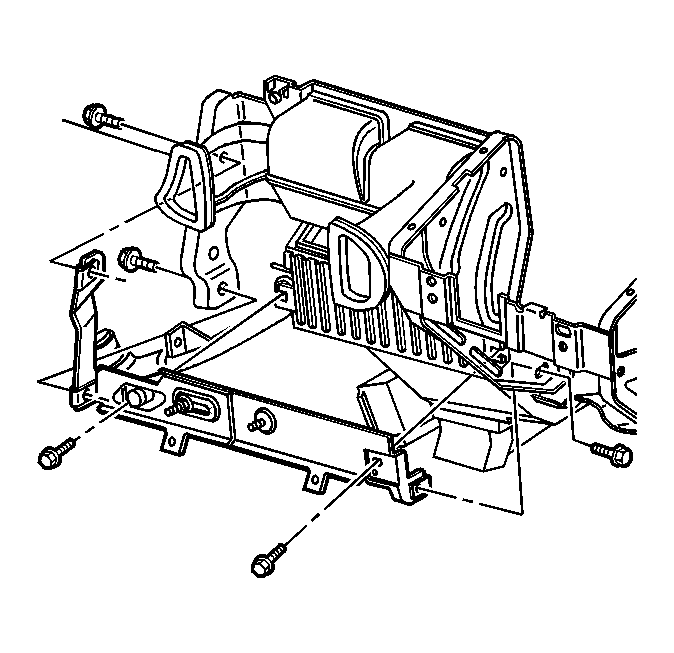

    6. Fig 4: View Of HVAC Module Center Support Bracket & Bolts
    GM282301Courtesy of GENERAL MOTORS COMPANY
  6. Install the HVAC module center support bracket
  7. Install the bolts to the HVAC module center support bracket. Tighten Tighten the center HVAC support bracket bolts to 10 N.m (89 lb in).
  8. Reposition the instrument panel wiring harness to the cross vehicle beam and install harness retaining clips
    9. Fig 5: View Of BCM Bracket
    GM486680Courtesy of GENERAL MOTORS COMPANY
  9. Install the BCM bracket and the bolts. Tighten Tighten the BCM bracket bolts to 10 N.m (89 lb in).
    10. Fig 6: Locating Relays
    GM486677Courtesy of GENERAL MOTORS COMPANY
  10. Install the relay bracket and the bolts. Tighten Tighten the relay bracket bolts to 10 N.m (89 lb in).
  11. Install the air distribution ducts to the cross vehicle beam.
  12. Install the brake pedal reinforcement nuts. Tighten Tighten the brake pedal reinforcement nuts to 50 N.m (37 lb ft).
  13. Install the passenger side SIR inflator module. Refer to REMOVAL (PASSENGER-SIDE) for Airbag Instrument Panel Module Replacement in SIR
  14. Install the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement
