Installation Procedure

  1. Install the bulb to the lamp socket pressing into place until fully seated.
    Fig 1: Installing Instrument Cluster Bulb From Lamp Socket
    G01755313Courtesy of GENERAL MOTORS CORP.
  2. Install the required lamp to the cluster.
    Fig 2: Installing Instrument Cluster Lamp
    G01755314Courtesy of GENERAL MOTORS CORP.
  3. Connect the required lamp to the cluster turning clockwise.
  4. Install the instrument panel cluster. Refer to Instrument Cluster Replacement .

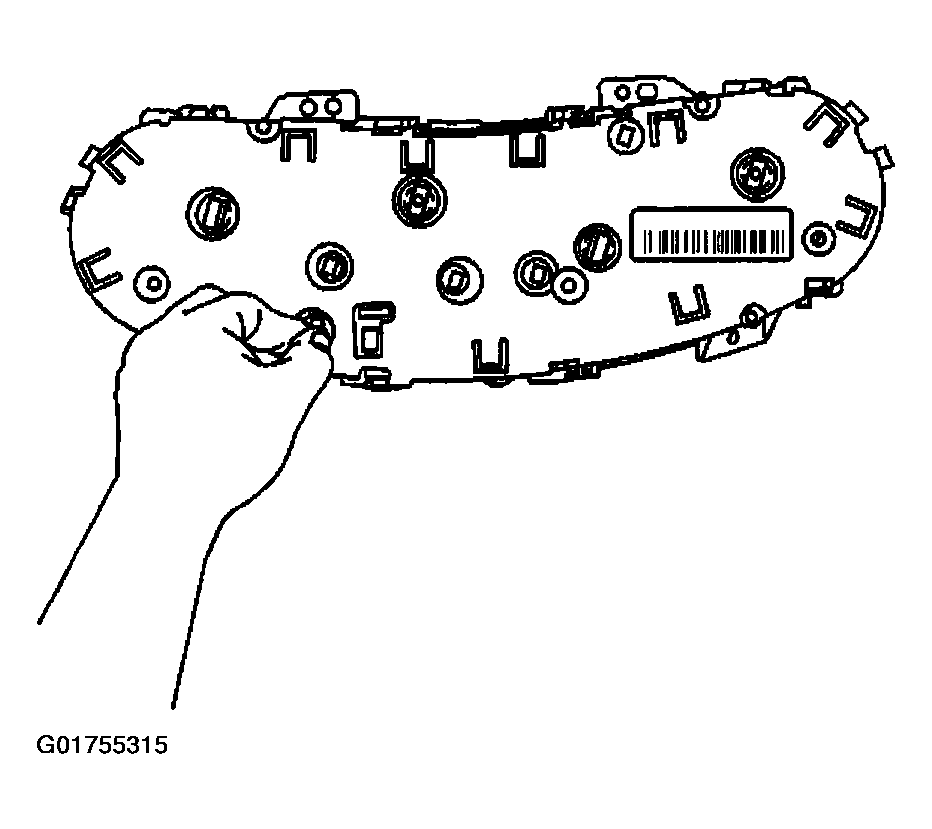

    Fig 3: Connecting Instrument Cluster Lamp To IPC
    G01755315Courtesy of GENERAL MOTORS CORP.
