Installation Procedure

  1. Position the front floor console into the vehicle
    2. Fig 1: Floor Console Wiring Harness
    GM326133Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connectors to the front floor console
  3. Align the front floor console over the transaxle shifter and position the front floor console retainers to the instrument panel

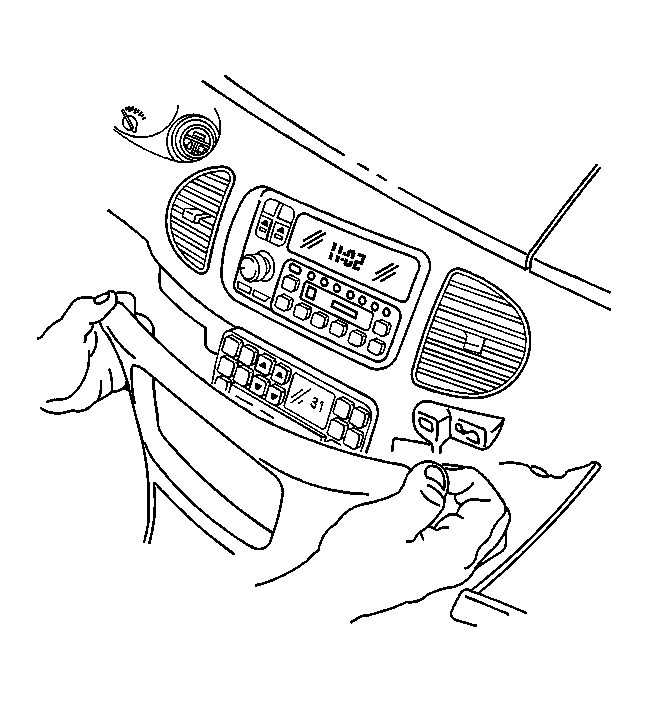

    4. Fig 2: Pushing Floor Console Into I/P Retainers
    GM689958Courtesy of GENERAL MOTORS COMPANY
  4. Push the front floor console forward into the retainers in the instrument panel until fully seated
    5. Fig 3: Rear Compartment Horizontal Bolts Near I/P
    GM326126Courtesy of GENERAL MOTORS COMPANY
  5. Install the bolts to the forward edge of the front floor console. Tighten the front floor console front side bolts to 5 N.m (44 lb in)
    6. Fig 4: Rear Compartment Bolts
    GM326124Courtesy of GENERAL MOTORS COMPANY
  6. Install the bolts into the front floor console mounting bracket at the rear of the transaxle shifter lever. Tighten the front floor console bracket rear of transaxle shift lever bolts to 5 N.m (44 lb in)
  7. Install the bolts to the storage area of the front floor console. Tighten Tighten the front floor console to storage compartment bolts to 5 N.m (44 lb in).
    8. Fig 5: Floor Console Trim Plate & Rear Compartment Mat
    GM326131Courtesy of GENERAL MOTORS COMPANY
  8. Install the rubber mat to the storage compartment in the front floor console
  9. Install the front floor console trim plate. Refer to Console Front Trim Plate Replacement
  10. Install the front floor console power accessory port
  11. Install the front floor console cigrette lighter
  12. Reposition the transaxle shift lever to the PARK position
  13. Release the parking brake
  14. Connect the battery negative cable
