Removal Procedure

  1. Disconnect the negative battery cable
  2. Raise and suitably support the vehicle

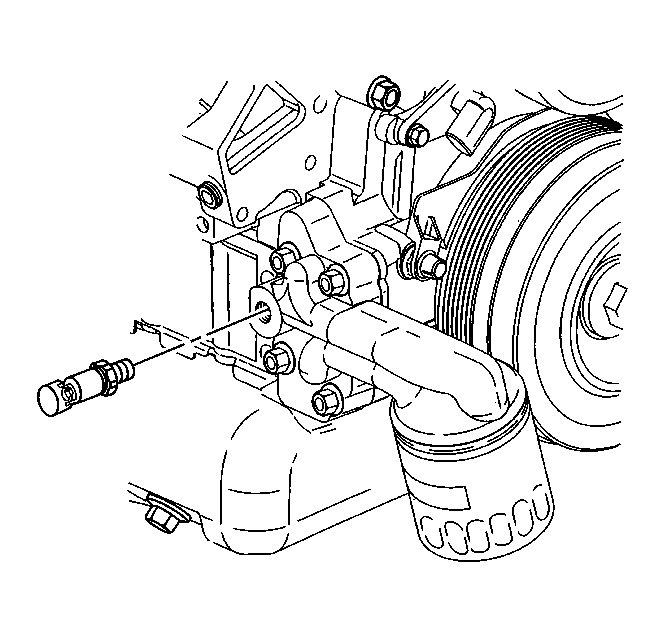

    3. Fig 1: Oil Pressure Switch Location (3.8L)
    GM153592Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the electrical connector from the engine oil pressure sensor
  4. Remove the engine oil pressure sensor.
