Installation Procedure

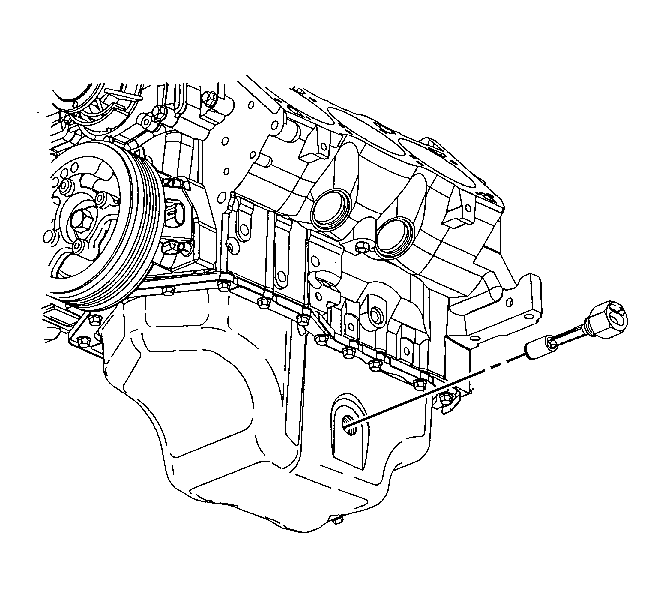

Fig 1: Oil Level Sensor Location (3.8L)

Courtesy of GENERAL MOTORS COMPANY

Install the oil level sensor from the oil pan. Tighten Tighten the engine oil level sensor to 20 N.m (15 lb ft).

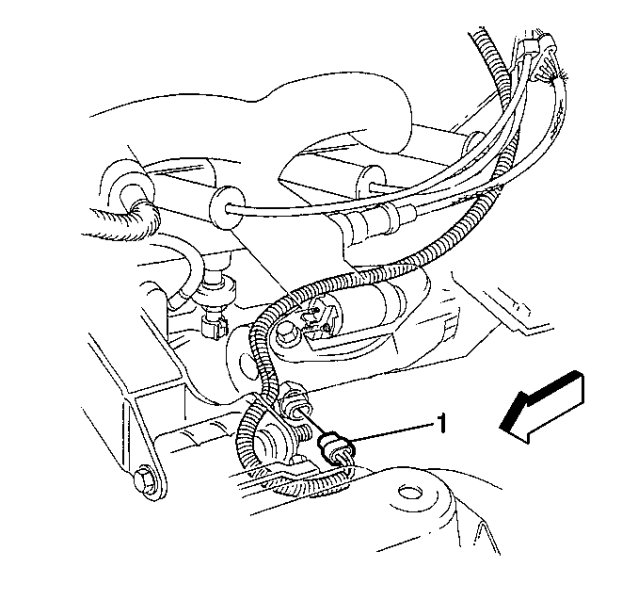

Fig 2: Oil Level Sensor Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Fig 3: Locating Engine Oil Drain Plug

Courtesy of GENERAL MOTORS COMPANY

Install the engine oil drain plug. Tighten Tighten the engine oil drain plug to 30 N.m (22 lb ft).
Lower the vehicle.
Refill the engine with appropriate amount of new recommended engine oil.
Start the engine and inspect for oil leaks
