Lower Left of Instrument Panel

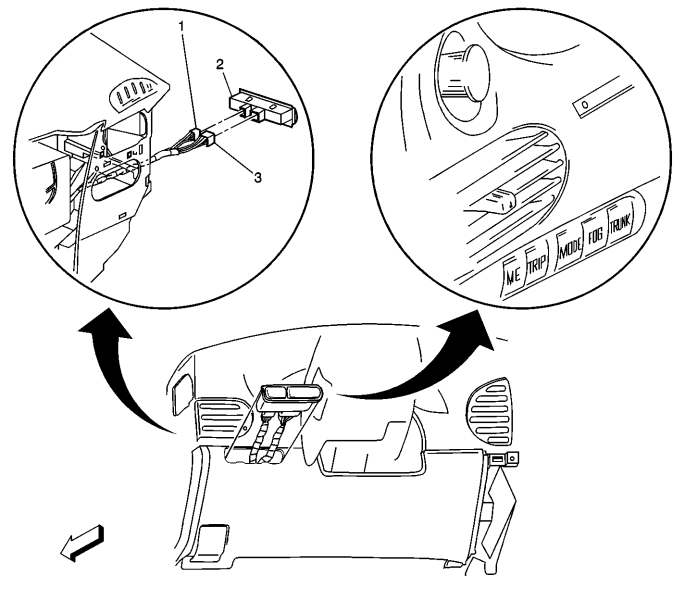

Fig 1: Lower Left of Instrument Panel
GM592288Courtesy of GENERAL MOTORS COMPANY

Graphic Legends

  1. Driver Information Display Switch Connector
  2. Driver Information Display/Fog Lamp Switch
  3. Fog Lamp Switch Connector
