Fwd Axle Shafts: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1996 Pontiac Bonneville, 1996 Oldsmobile Ninety-Eight, 1996 Oldsmobile LSS, 1996 Oldsmobile Eighty-Eight, and 1996 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Place Axle Seal Protector (J-37292-B ) to right side of transaxle, with handle between 5 and 7 o'clock position, so protector can be pulled out after axle shaft is installed. See Fig 3 . Remove and discard seal protector. Ensure no pieces of protector are left inside transaxle.

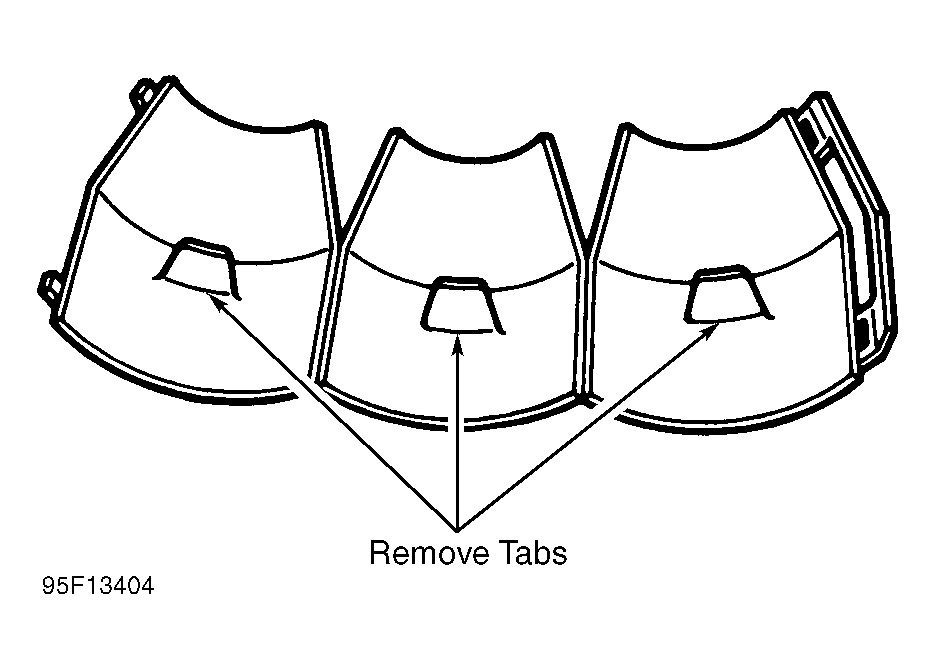

Fig 1: Modifying CV Boot Protector (J-34754)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing Axle Shaft From Transaxle

Courtesy of GENERAL MOTORS CORP.

Fig 3: Installing Axle Seal Protector

Courtesy of GENERAL MOTORS CORP.
