All Other Models

WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Press and hold metal readjust tab on cable adjuster at cable support bracket on engine. See Fig 1 . Pull cable housing away from throttle lever until housing stops and is completely against adjuster. Release readjust tab.
  2. Manually rotate throttle lever to its full throttle position. Ensure slider moves (ratchets) toward lever when lever is rotated to its full throttle position. Check cable for sticking and binding.

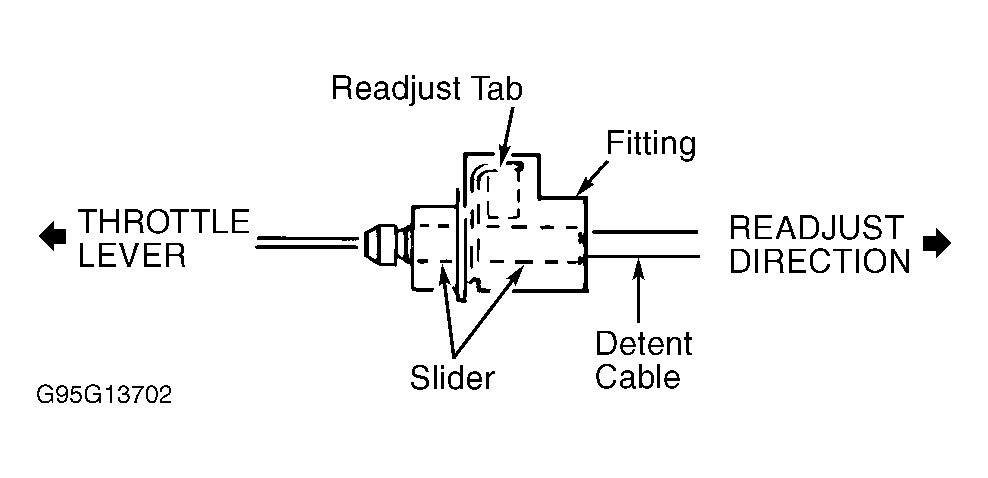

Fig 1: Adjusting TV Cable (Except "A" Body - 2.2L)
G95G13702Courtesy of GENERAL MOTORS CORP.
