"A" Body (2.2L)
WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

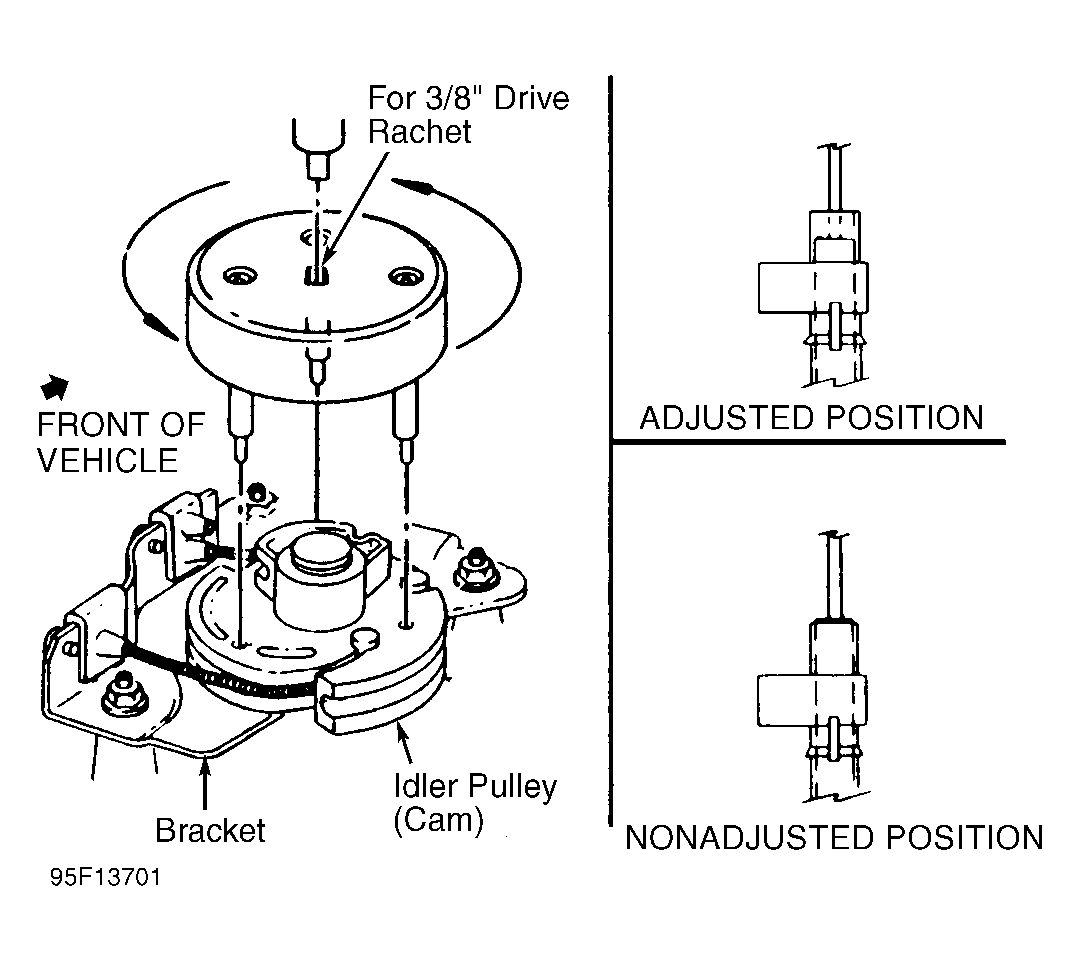

- Ensure TV cable is in full, non-adjusted position. See Fig 1 . Ensure TV cable operates smoothly and is connected at transaxle.
- Accelerator cable must be installed before adjusting TV cable. Rotate idler pulley (cam) counterclockwise to 62 INCH lbs. (7 N.m) to place cable in adjusted position.
