"B" & "D" Bodies

WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

Position steering column shift lever in Neutral. Raise and support vehicle. Loosen clamp and clamp screw where end of selector rod extends through hole in clamp. See Fig 1 . Place transmission shift shaft in Neutral. Tighten clamp screw.

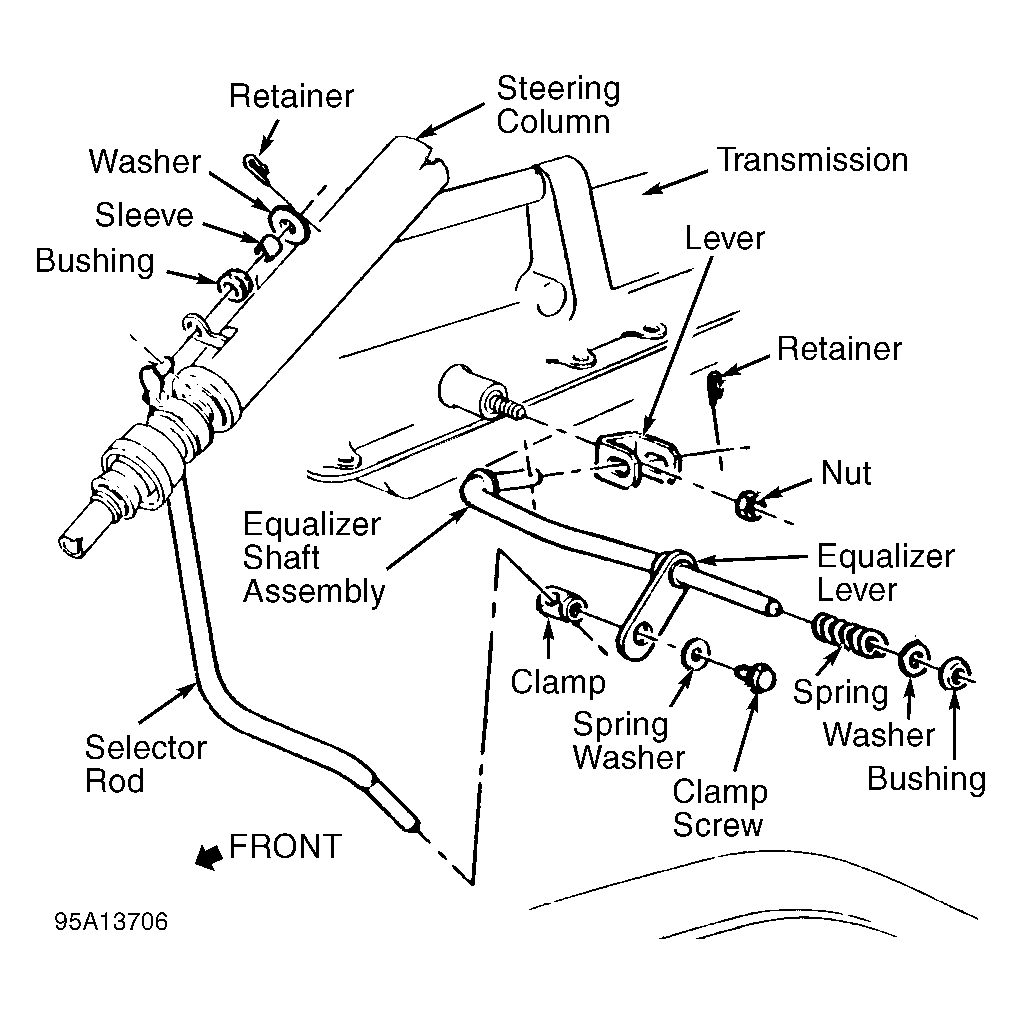

Fig 1: Adjusting Shift Linkage Rod ("B" & "D" Bodies)
G95A13706Courtesy of GENERAL MOTORS CORP.
