"F" & "Y" Bodies

WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

Place gear selector lever in Neutral. Raise and support vehicle. Loosen cable adjusting nut at transmission lever. See Fig 1 . Ensure shift shaft lever is in Neutral by rotating lever clockwise to Park detent, and then counterclockwise 2 detents to Neutral. Tighten nut (DO NOT  tighten nut with lever in Park).

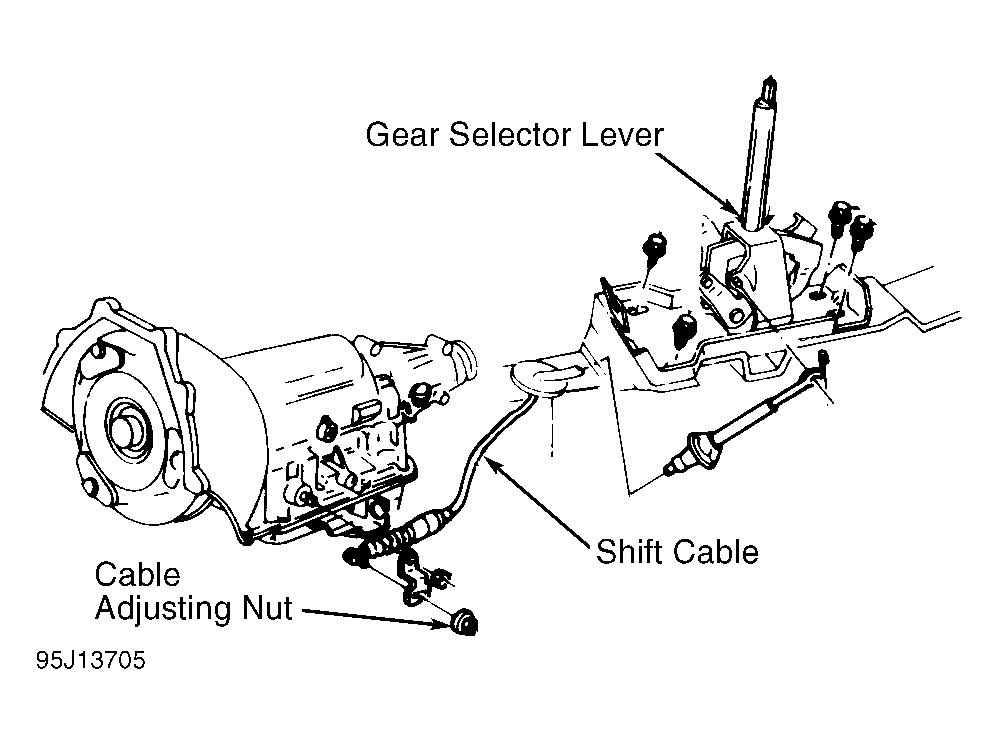

Fig 1: Adjusting Shift Cable ("F" & "Y" Bodies)
G95J13705Courtesy of GENERAL MOTORS CORP.
