Except Saturn

WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

Place gear selector lever in Neutral. Lift or press lock button on cable adjuster at transaxle mounting bracket. See Fig 1 and Fig 2 . Place transaxle lever in Neutral detent. Push down or release lock button.

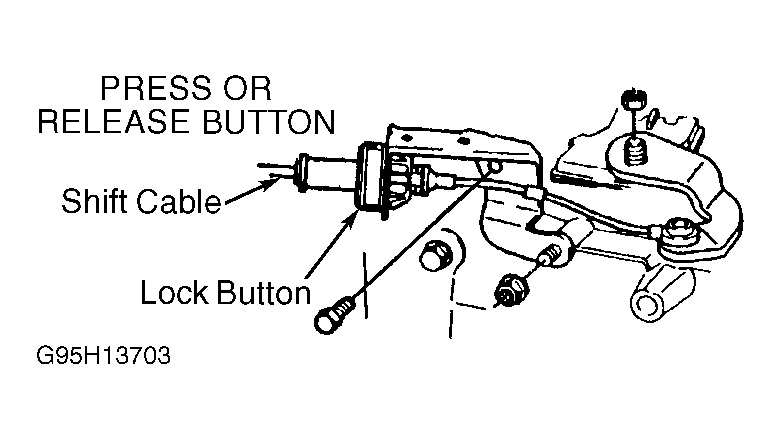

Fig 1: Adjusting Shift Cable ("J" & "N" Bodies)
G95H13703Courtesy of GENERAL MOTORS CORP.

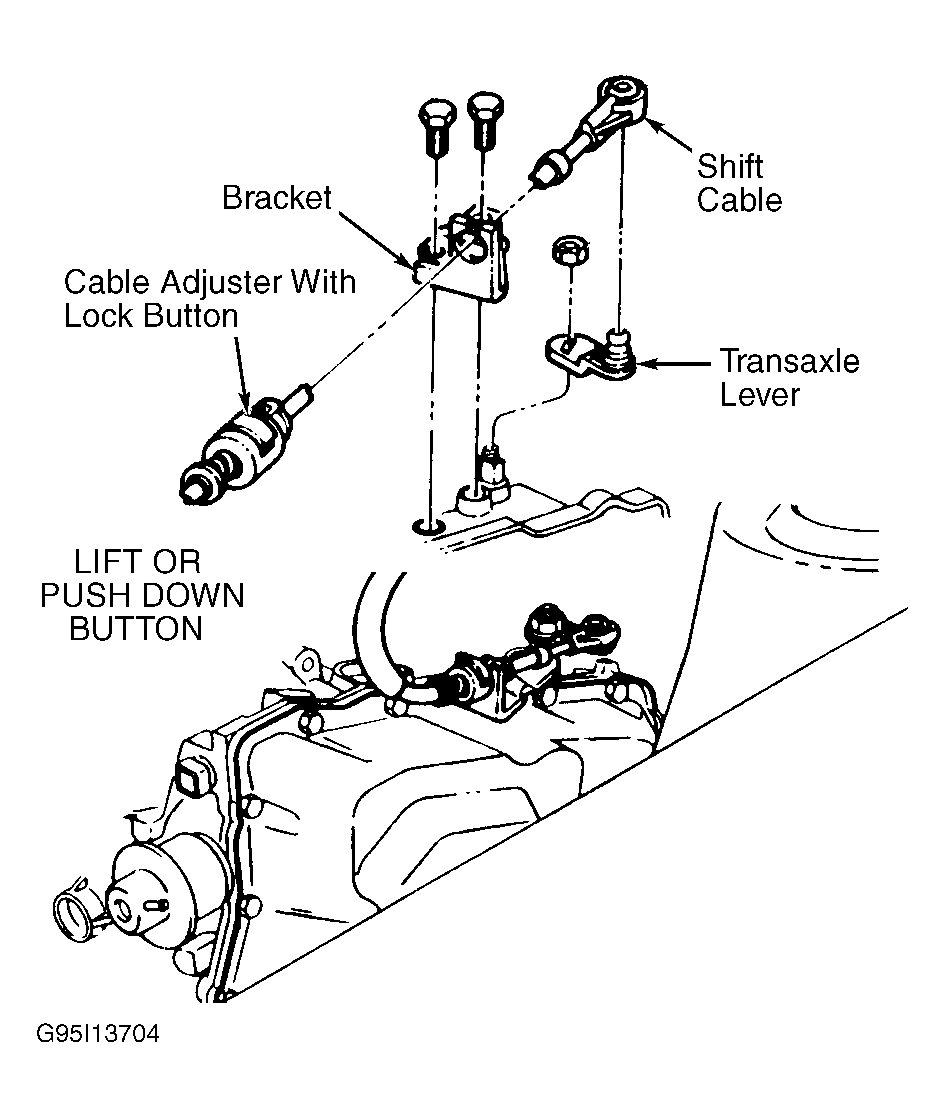

Fig 2: Adjusting Shift Cable (Except "J" & "N" Bodies)
G95I13704Courtesy of GENERAL MOTORS CORP.
