FWD (All Other Models)
WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

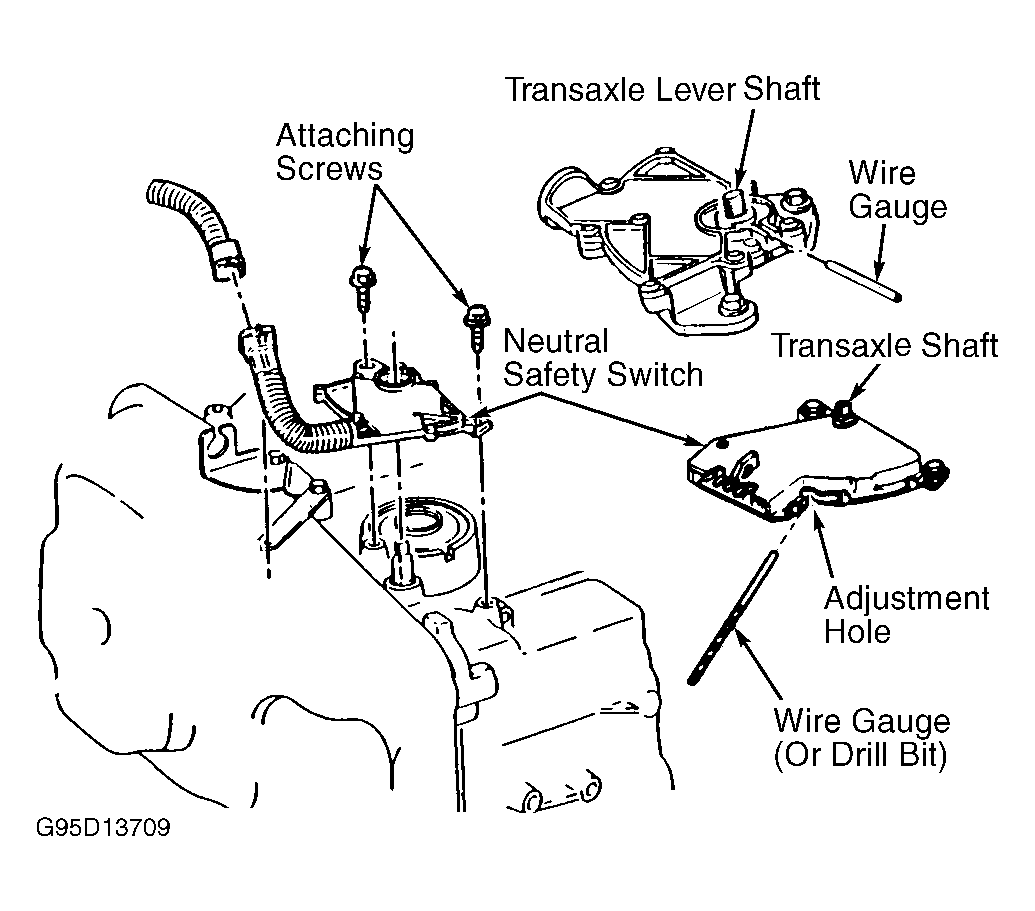

- Neutral safety switches come in 2 different types. See Fig 1 . Ensure shift cable is adjusted. To adjust switch, place gear selector lever in Neutral.
- Place transaxle lever in Neutral detent. Loosen switch attaching screws. Rotate switch on shifter assembly to align adjustment hole with carrier tang hole.
- Insert a .094" (2.4 mm) wire gauge about 5/8" (16 mm) into switch holes. Tighten attaching screws. Remove wire gauge. New switches may have a plastic pin installed in hole. Plastic pin is designed to shear off during initial shift lever operation.
