Century, Grand Prix, Cutlass Supreme, Lumina, Monte Carlo & Regal

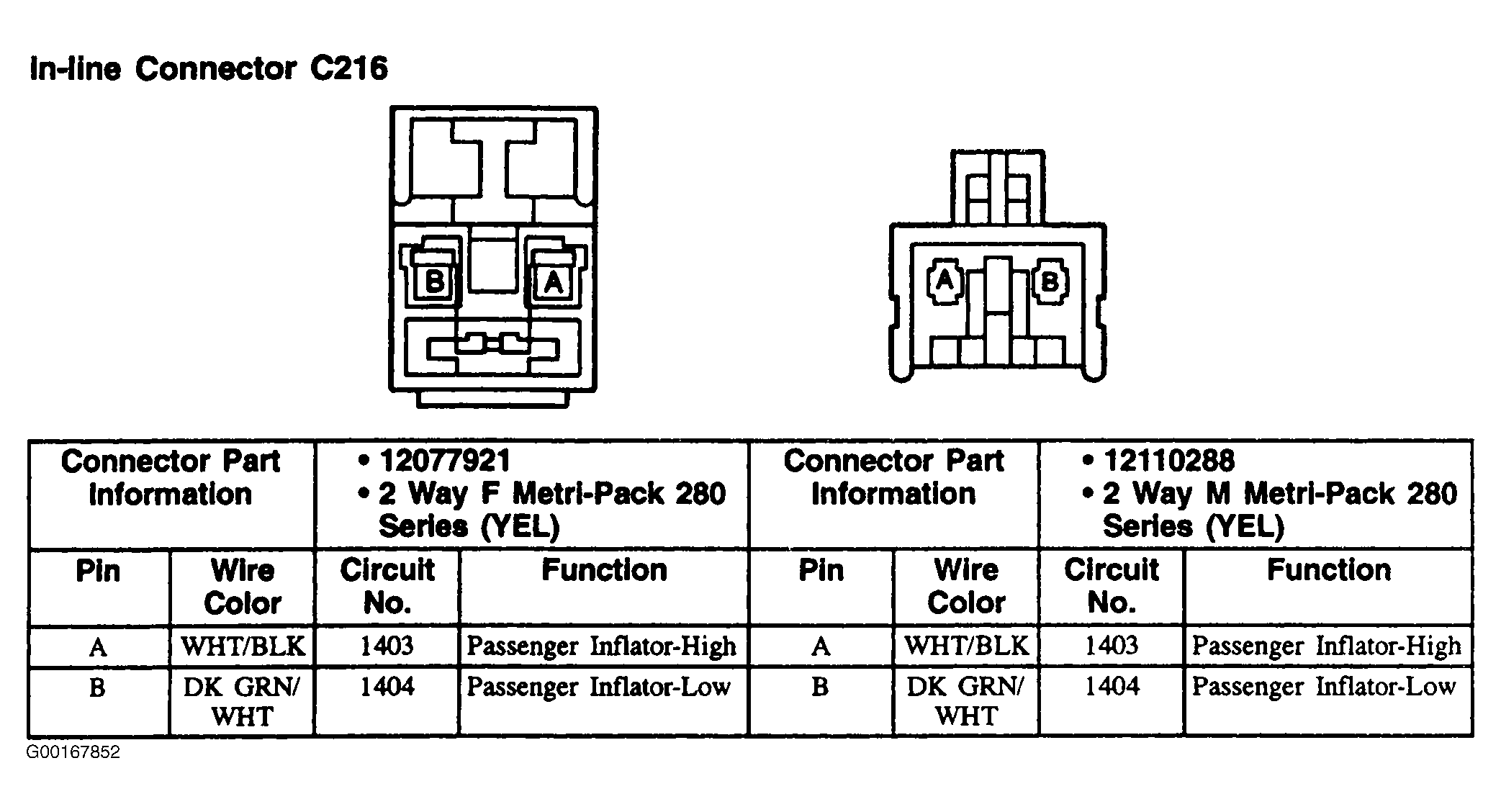

Fig 1: C216 (Century, Grand Prix, Cutlass Supreme, Lumina, Monte Carlo & Regal) - 2-Pin Connector (Yellow)
G00167852Courtesy of GENERAL MOTORS CORP.
