Removal & Installation: Thermostat: Installation

NOTE: Numbers in parenthesis refer to the numbers in illustrations.

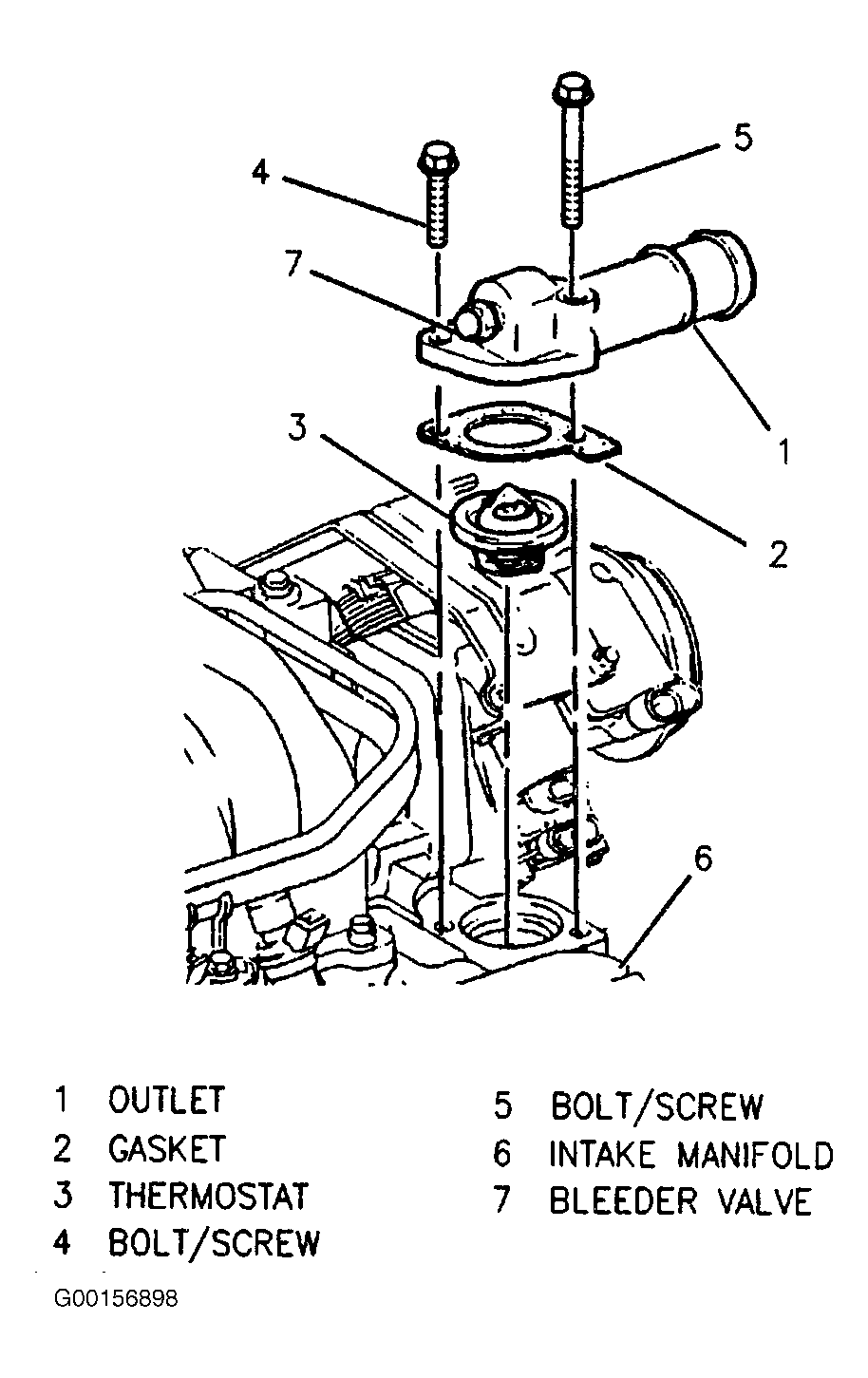

For installation, reverse the removal procedure. See Figure. All engines use a gasket O-ring (2). The thermostat, coolant outlet (1), is sealed with a gasket.
