Instrument Cluster
NOTE:
When replacing instrument cluster, be sure to remove odometer non-volatile memory chip for installation in replacement cluster.

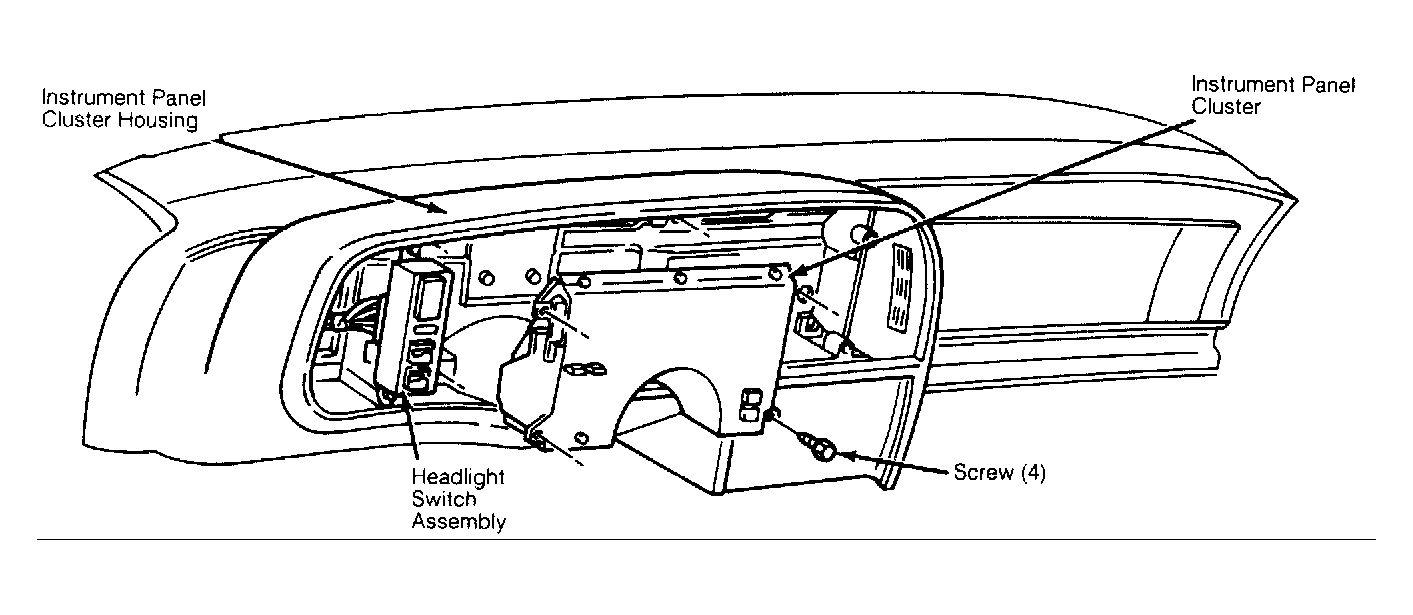

Turn ignition off. Remove instrument panel cluster trim plate 2 upper retaining screws, located in ventilation deflectors. Pull cluster trim plate out of lower retaining clips and remove from vehicle. Remove 4 cluster retaining screws. See Fig 1 . Pull cluster away from housing and disconnect electrical connector. To install, reverse removal procedure.
