Strut Assembly: Installation

To install, reverse removal procedure. Prior to lowering vehicle, lightly pressurize ELC system by grounding the Yellow wire of the compressor test lead located near ELC compressor in the engine compartment. Check and adjust rear wheel alignment.

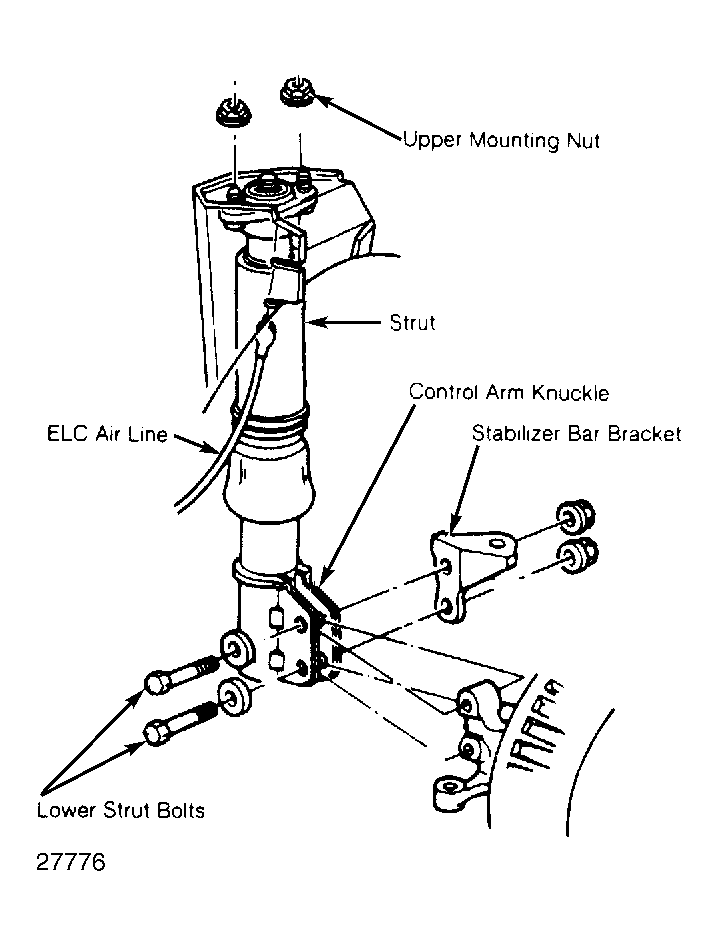

Fig 1: Exploded View of Strut For "C" & "H" Bodies

Courtesy of GENERAL MOTORS CORP.
