Stabilizer Bar: Installation

To install, reverse removal procedure. Tighten bushing clip bolt with vehicle at normal operating height.

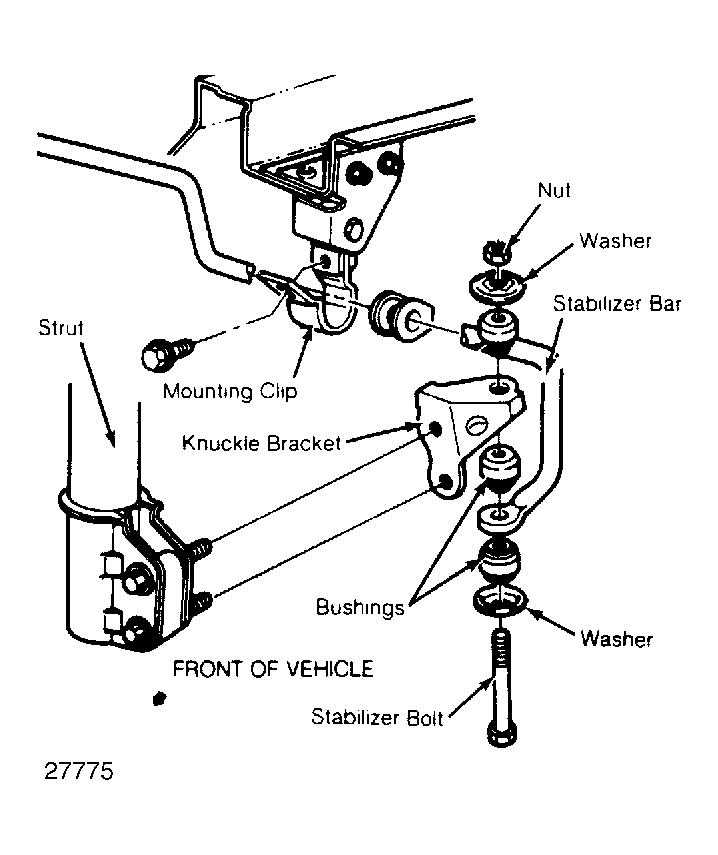

Fig 1: Exploded View of "C" & "H" Bodiy Stabilizer Bar

Courtesy of GENERAL MOTORS CORP.

NOTE: Stabilizer bar replacement may be more easily completed with vehicle at curb weight and supported by wheels. Use drive-on type hoist. If using a frame contact hoist, support control arms as far outboard as possible, without allowing hoist to contact struts.
