Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1988 Buick LeSabre, 1988 Buick Electra, 1987 Buick LeSabre, 1987 Buick Electra, and 1986 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

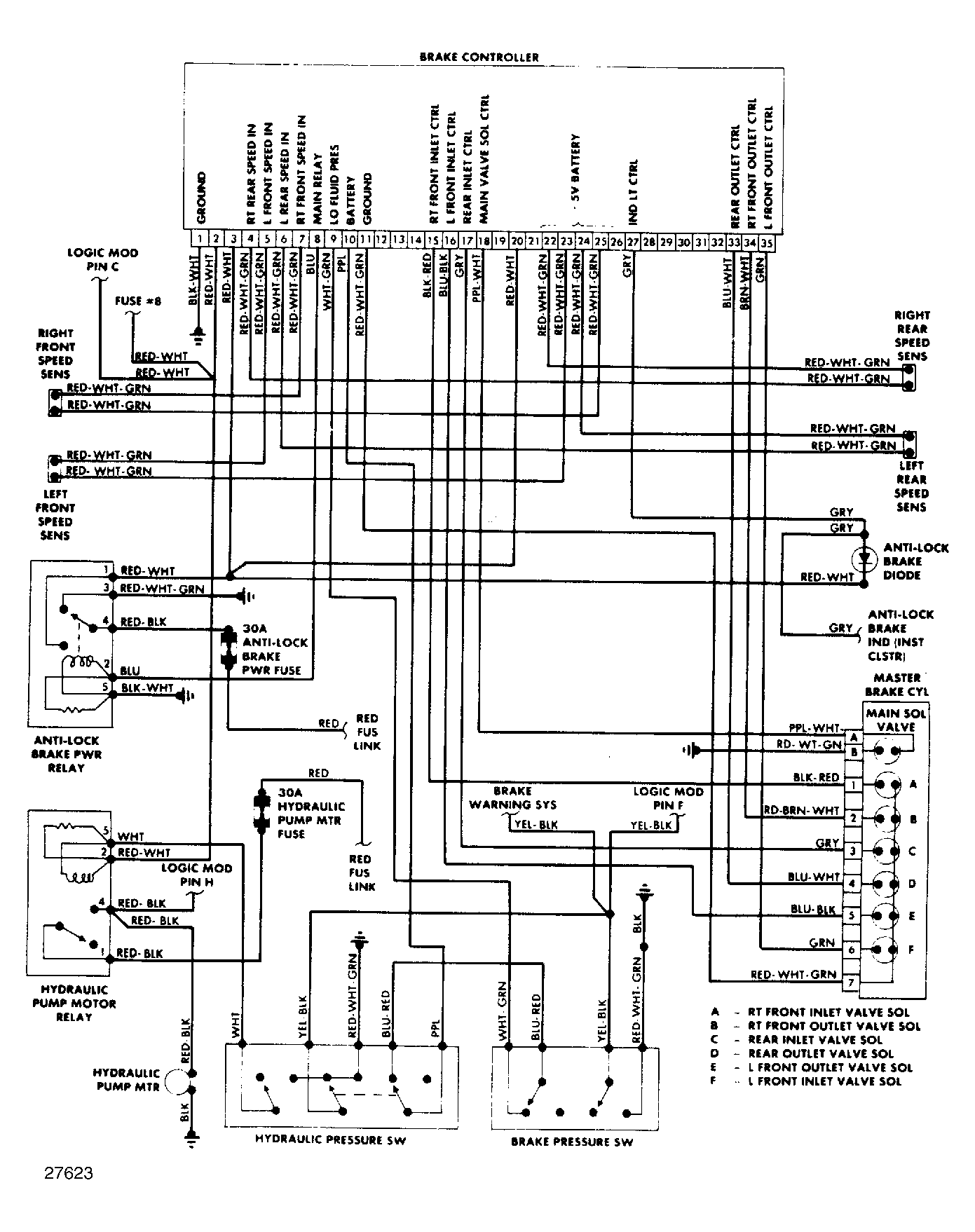

Fig 1: 1986 Electra/Park Avenue System Wiring Diagram

Fig 2: 1987 Electra/Park Avenue System Wiring Diagram

Fig 3: 1987 LeSabre System Wiring Diagram

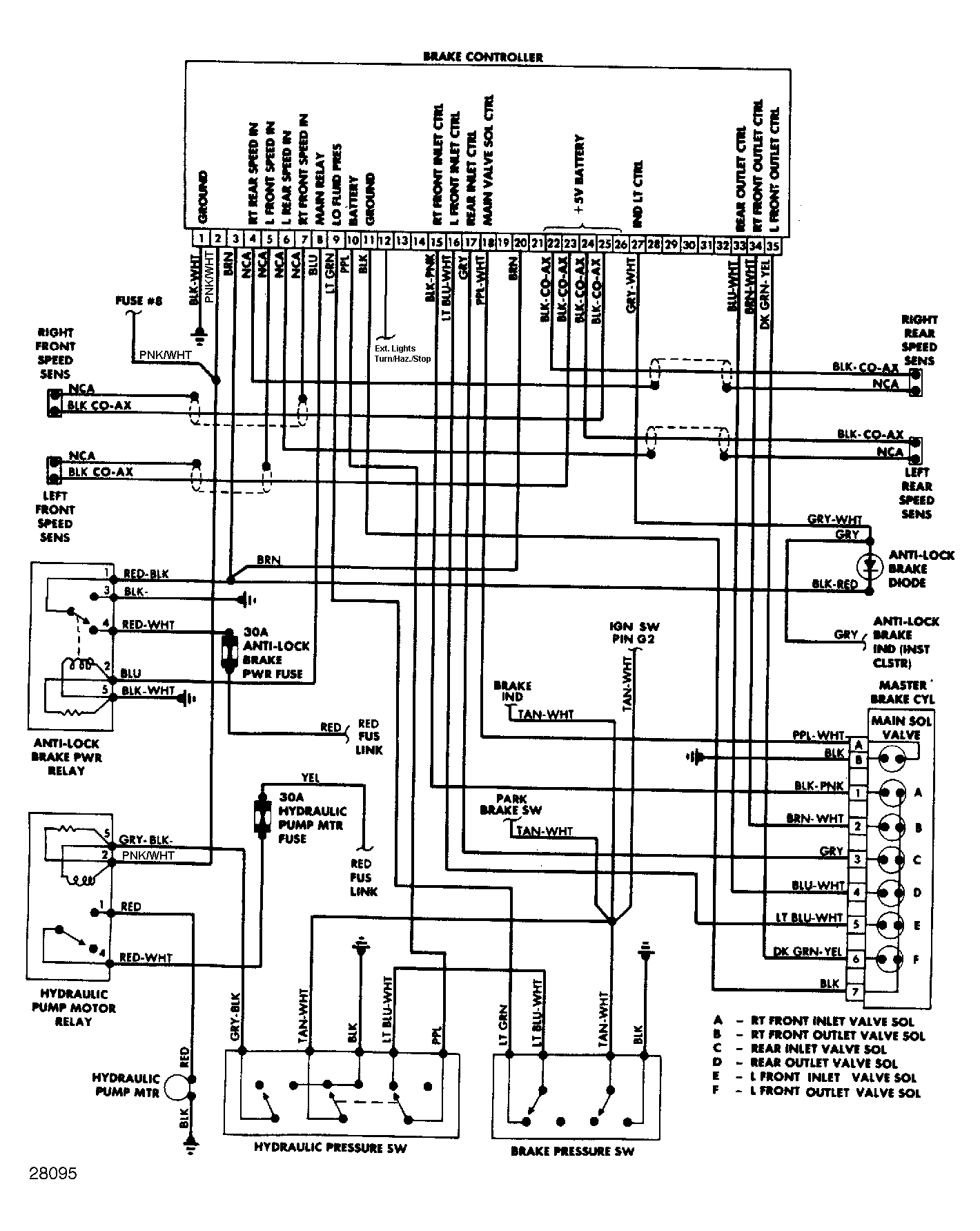

Fig 4: 1988 Electra/LeSabre System Wiring Diagram
