Valve Lifters: Removal

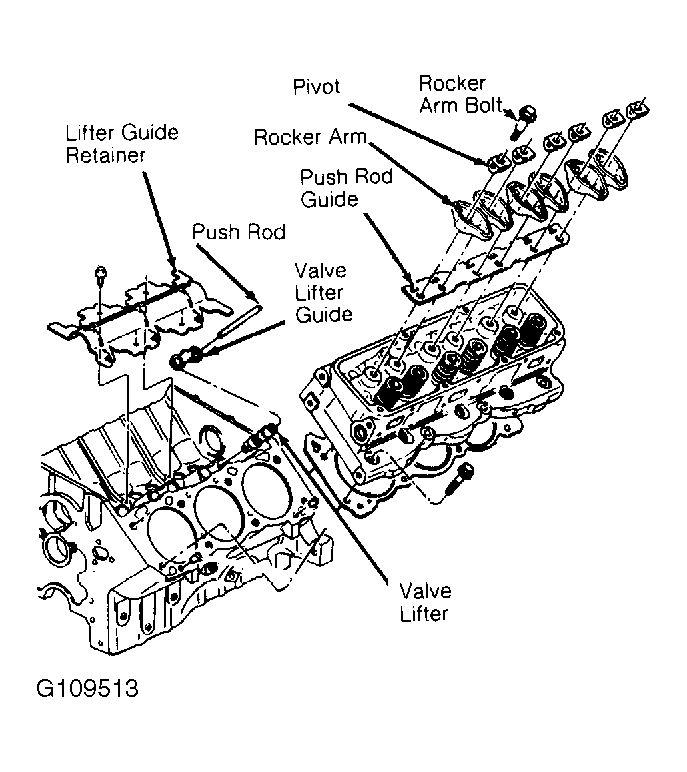

Remove intake manifold and rocker arms as previously described. Remove push rod guide bolts and push rod guide. See Figure. Remove valve lifter guide and valve lifter. Mark component location for reassembly reference.
Remove intake manifold and rocker arms as previously described. Remove push rod guide bolts and push rod guide. See Figure. Remove valve lifter guide and valve lifter. Mark component location for reassembly reference.
