Instrument Panel - Standard: Wiring Diagram

For wiring diagrams, refer to appropriate chassis wiring in WIRING DIAGRAMS section.

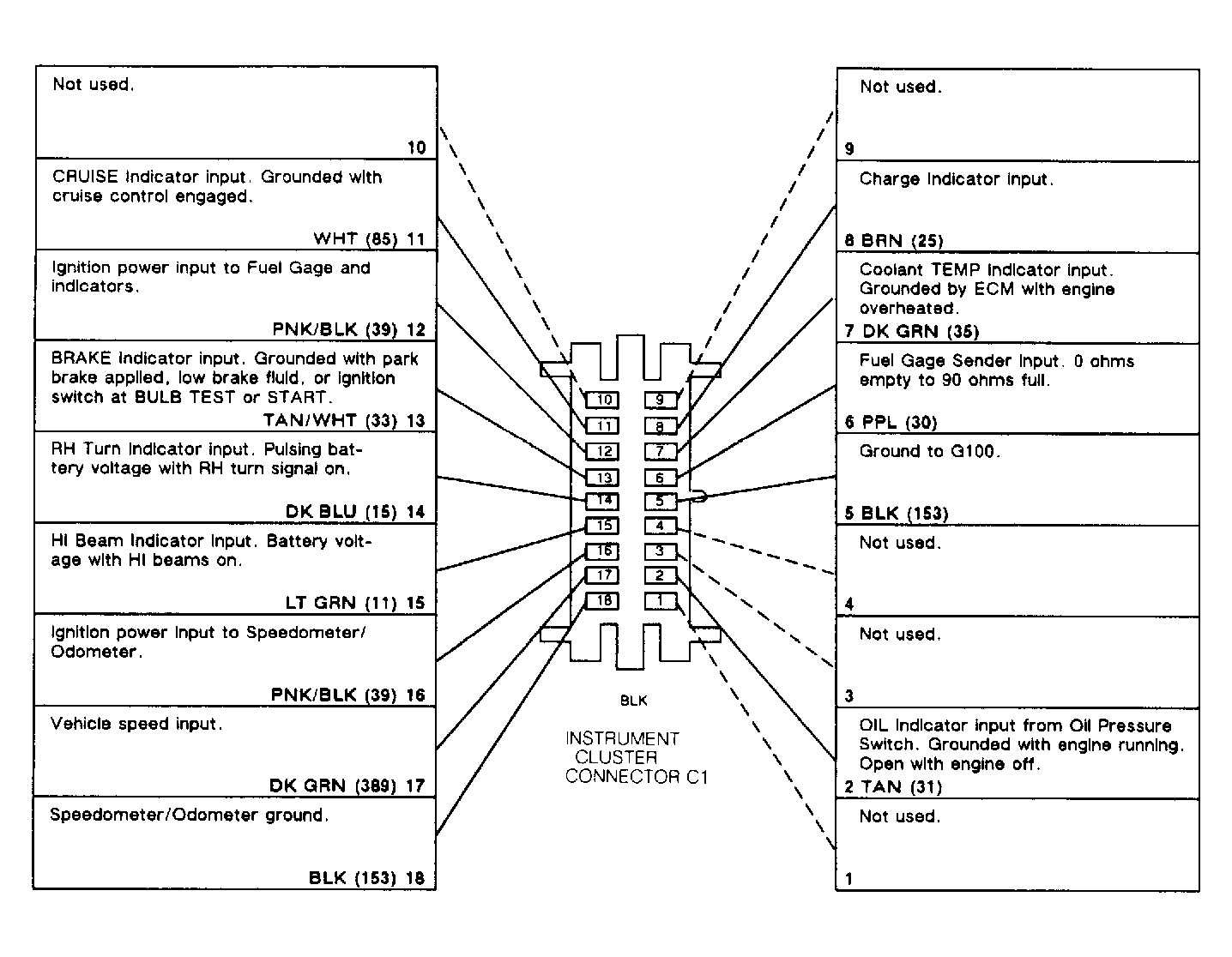

Fig 1: Century Instrument Cluster C1 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

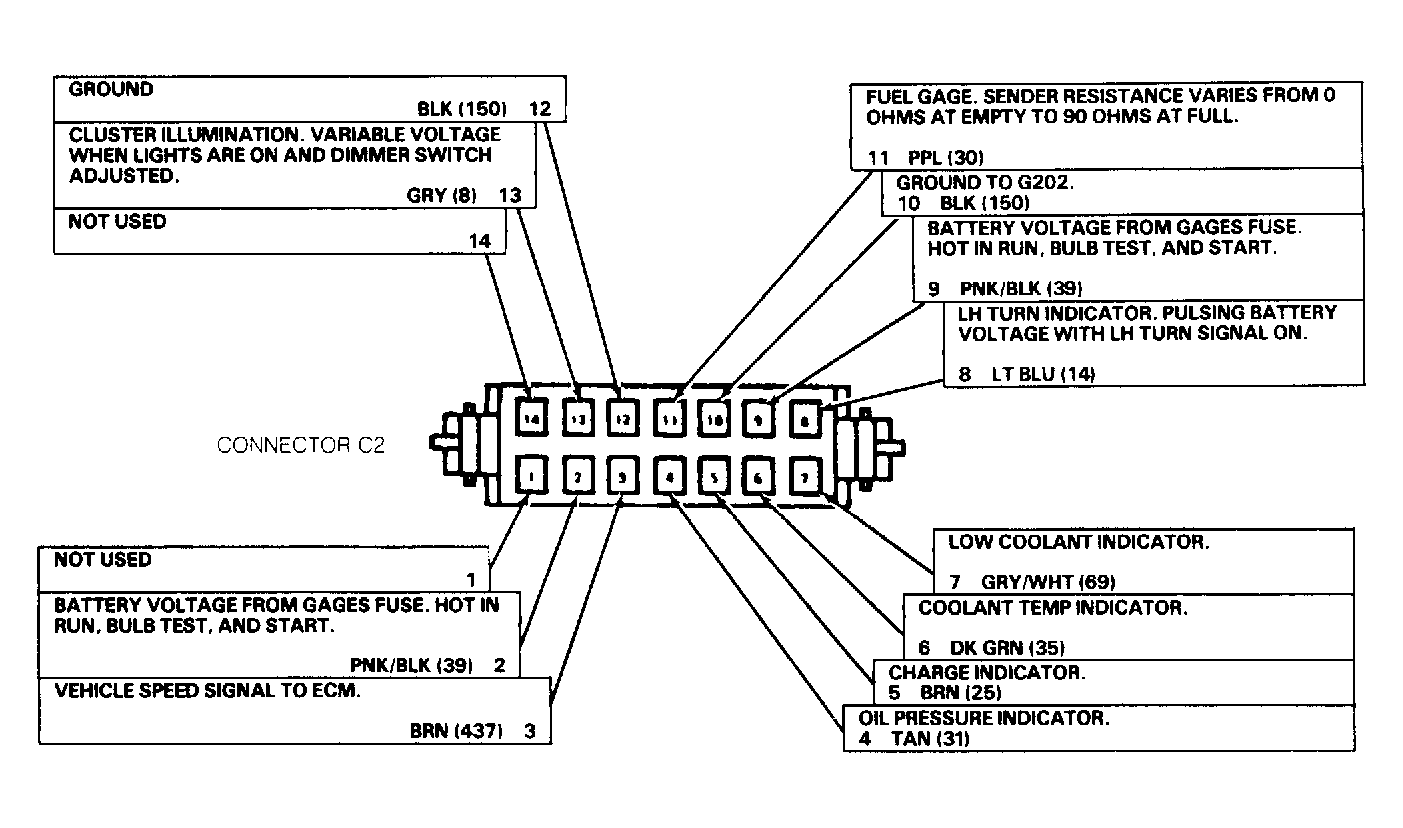

Fig 2: Century Instrument Cluster C2 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

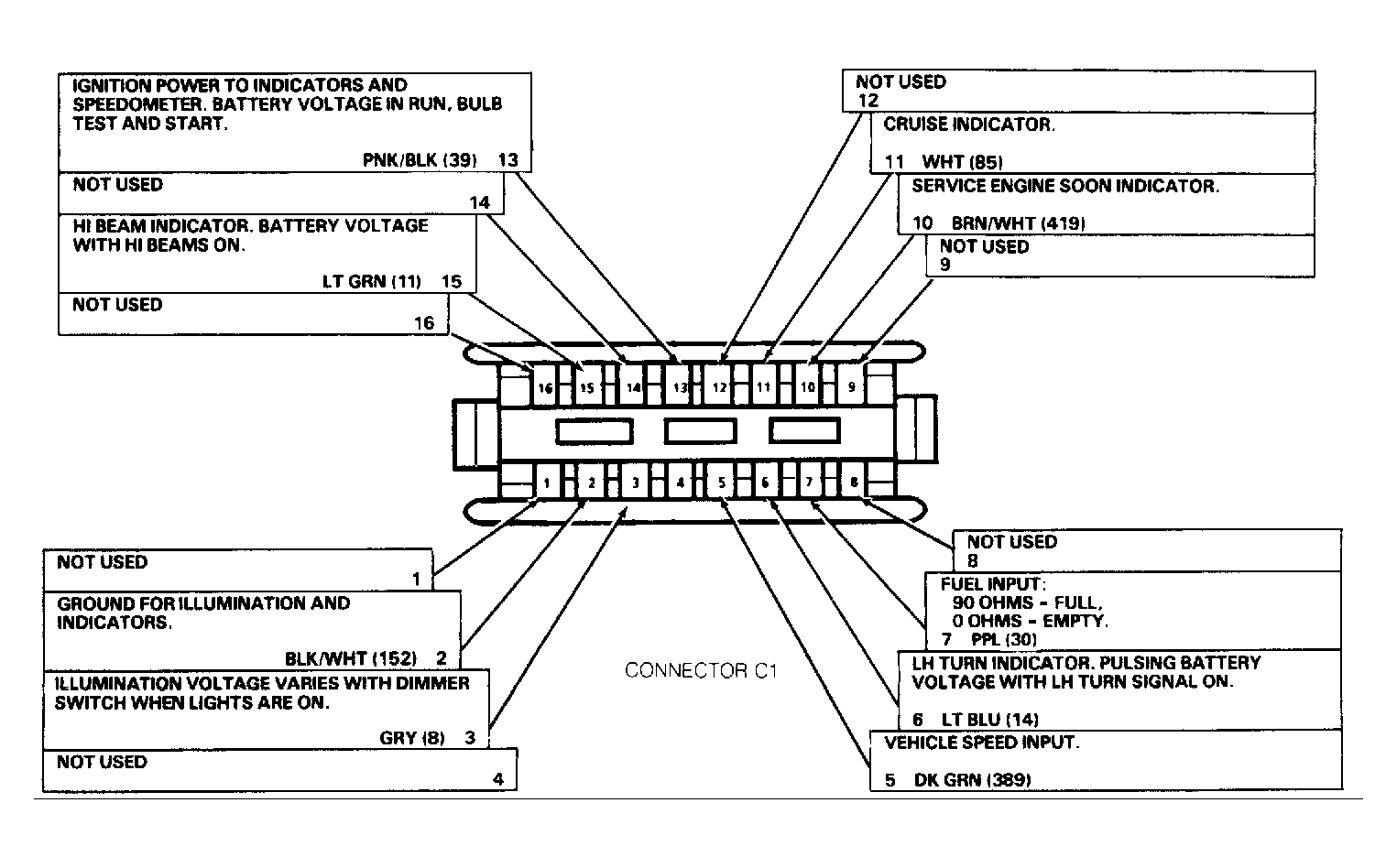

Fig 3: Electra & LeSabre Instrument Cluster C1 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

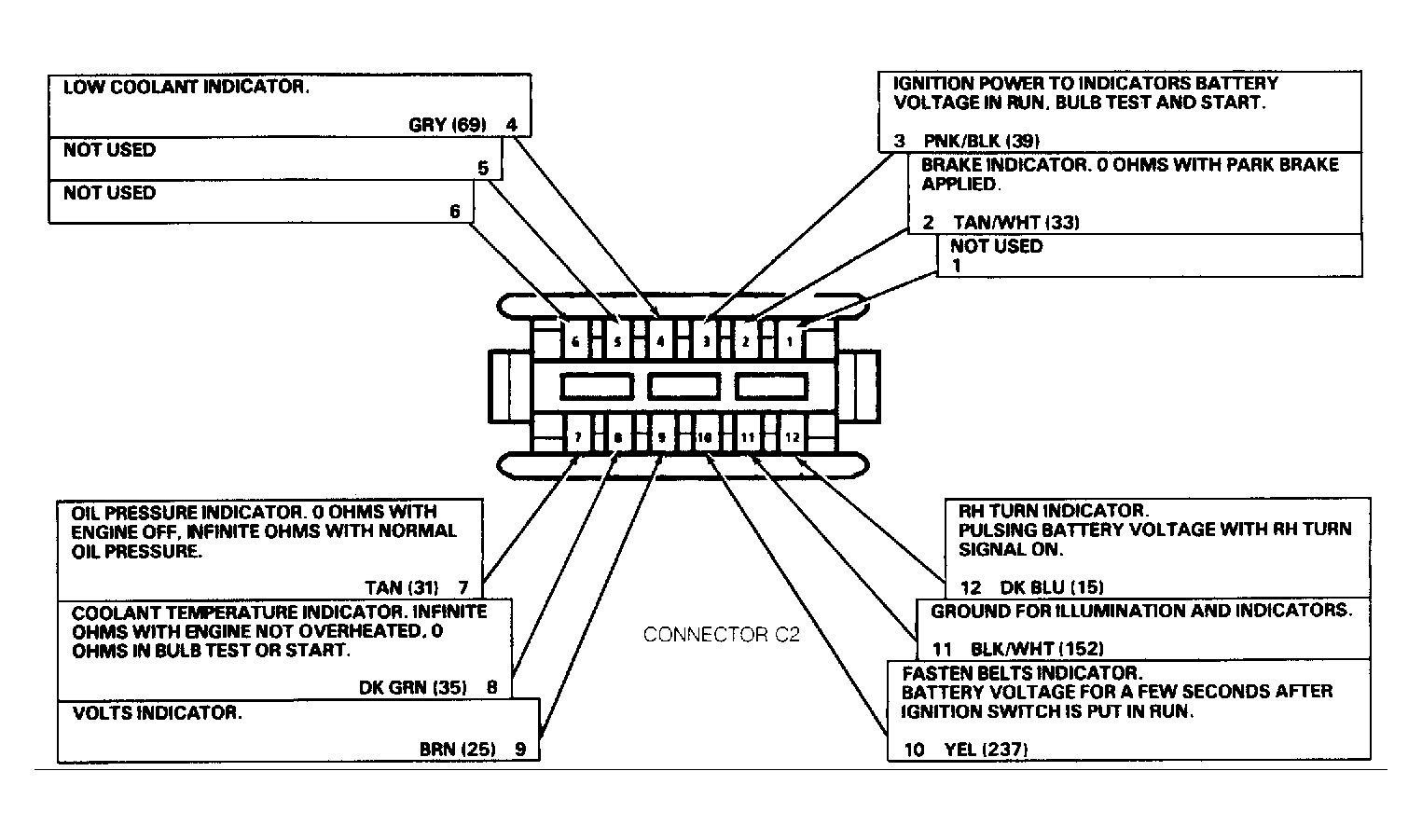

Fig 4: Electra & LeSabre Instrument Cluster C2 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

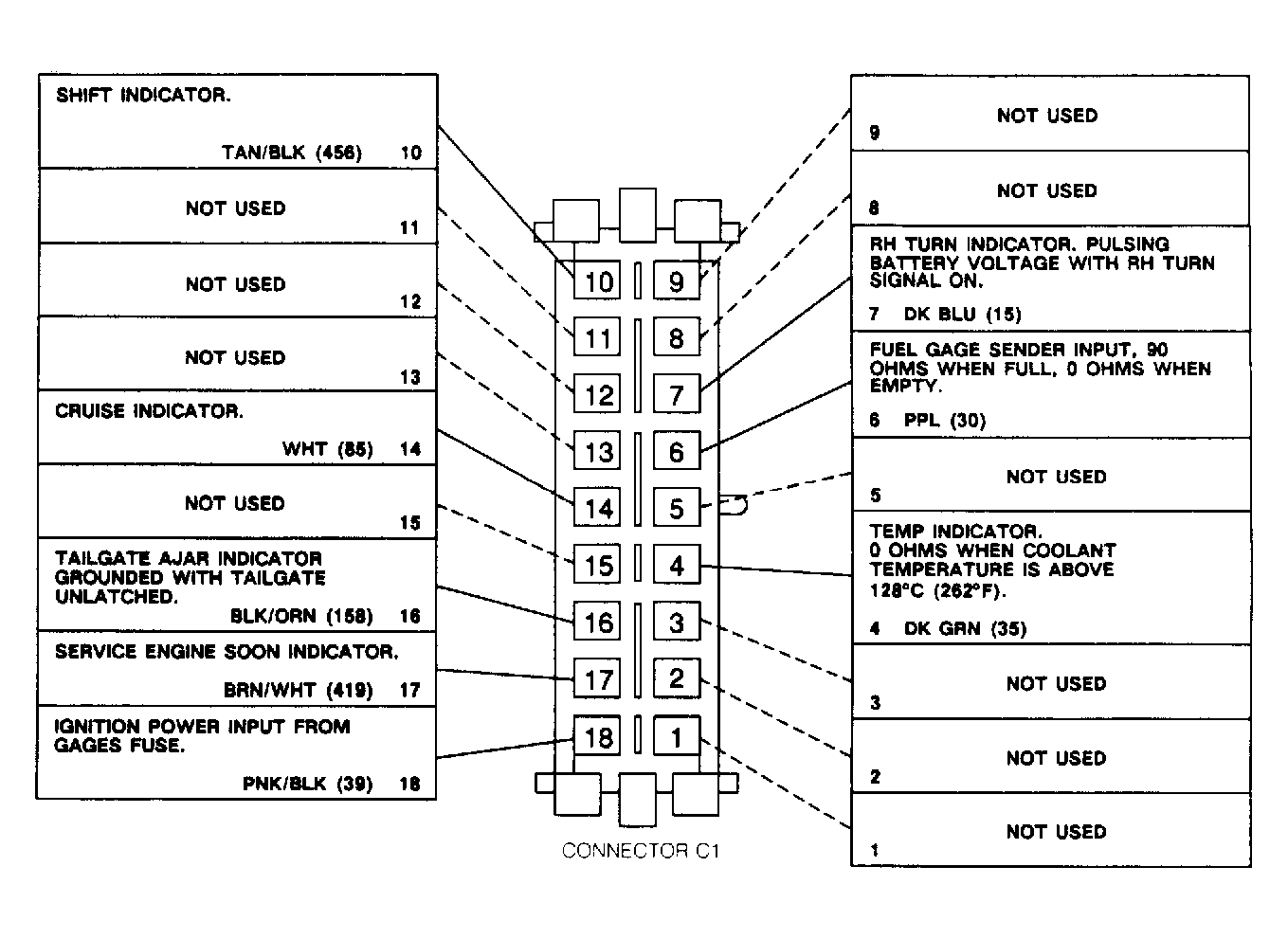

Fig 5: Skyhawk Instrument Cluster C1 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

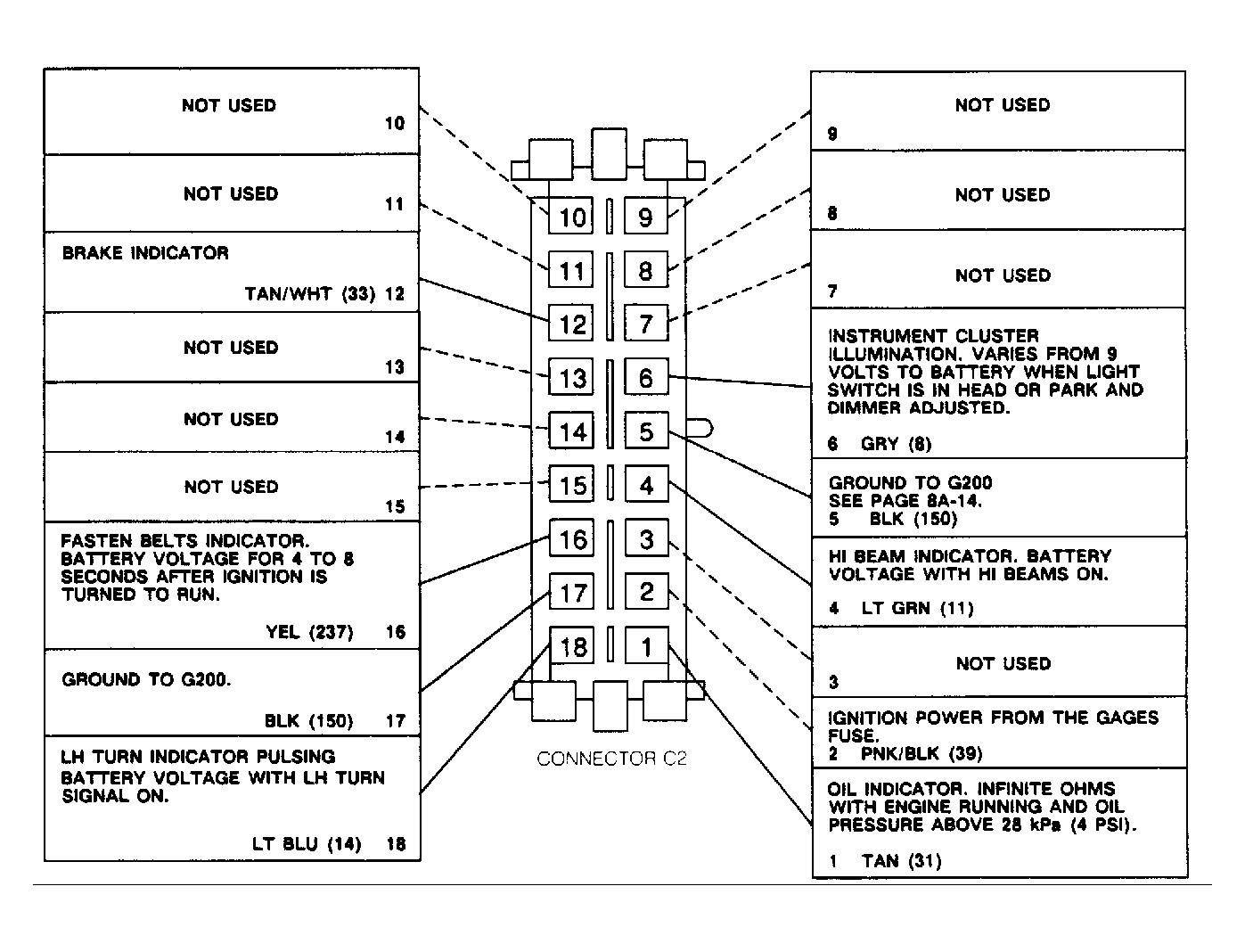

Fig 6: Skyhawk Instrument Cluster C2 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

Fig 7: Skylark Instrument Cluster C1 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.

Fig 8: Skylark Instrument Cluster C2 Connector Pin Test

Courtesy of GENERAL MOTORS CORP.
